COWLING BODY (MODEL V/W)

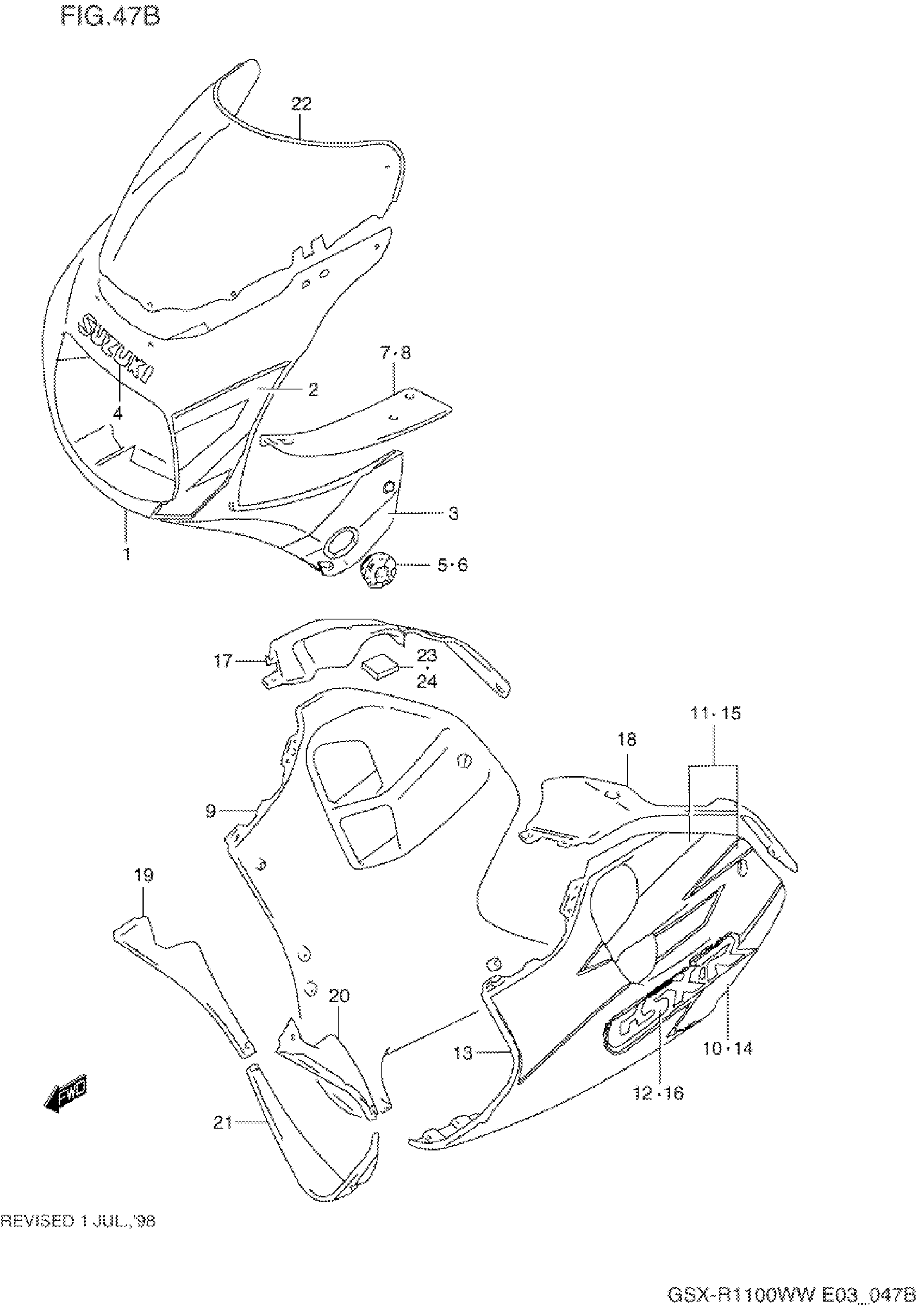

Suzuki GSX-R1100W (1998) COWLING BODY (MODEL V/W) Diagram
#
1
COWLING ASSY, BODY (BLACK) | MODEL V FOR G2P
94400-46E70-33J
Unavailable
1
COWLING ASSY, BODY (WHITE) | MODEL V FOR G4V
94400-46E70-0JW
Unavailable
1
COWLING ASSY, BODY (WHITE) | MODEL W FOR K1V
94400-46E70-1LX
Unavailable
1
COWLING ASSY, BODY (GRAY) | MODEL W FOR G2E; Includes Item(s) 2 - 6
94400-46E70-35W
Unavailable
2
TAPE SET, BODY FRONT | MODEL V FOR 33J
68270-46E30-G6U
Unavailable
2
TAPE SET, BODY FRONT | MODEL V FOR 0JW
68270-46E30-G6T
Unavailable
2
TAPE SET, BODY FRONT | MODEL W FOR 1LX
68270-46E30-K2P
Unavailable
2
TAPE SET, BODY FRONT | MODEL W FOR 35W
68270-46E30-K2N
Unavailable
3
NO DESCRIPTION AVAILABLE | MODEL V FOR 33J This part replaces 68280-46E30-G6W.
68280-46E31-G6W
Unavailable
3
TAPE SET,COWL U | MODEL V FOR 0JW This part replaces 68280-46E30-G6V.
68280-46E31-G6V
Unavailable
3
TAPE SET, SIDE | MODEL W FOR 1LX
68280-46E31-K2K
Unavailable
3
TAPE SET, SIDE | MODEL W FOR 35W
68280-46E31-K2L
Unavailable
4
EMBLEM, BODY (CHROME) | FOR 33J
68185-05C10-0AT
Unavailable
4
EMBLEM, BODY (GRAY) | FOR 0JW,1LX
68185-05C10-20G
Unavailable
4
EMBLEM, BODY (SILVER) | FOR 35W
68185-05C10-20H
Unavailable
5
PLATE, FRONT TURN RH
94416-17E21
Unavailable
6
PLATE, FRONT TURN LH
94417-17E21
Unavailable
7
PANEL, UPPER RH
94415-17E21
Unavailable
8
PANEL, UPPER LH
94425-17E21
Unavailable
9
COWLING, UNDER RH (MAROON) | MODEL V FOR G2P
94407-46E70-22U
Unavailable
9
COWLING, UNDER RH (BLUE) | MODEL V FOR G4V
94407-46E70-Y0P
Unavailable
9
COWLING, UNDER RH (BLUE) | MODEL W FOR K1V
94407-46E70-Y0N
Unavailable
9
COWLING, UNDER RH (BLACK) | MODEL W FOR G2E; Includes Item(s) 10 - 12
94407-46E70-33J
Unavailable
10
TAPE, LOWER RH | MODEL V FOR 22U
68185-46E20-G2P
Unavailable
10
TAPE, LOWER RH | MODEL V FOR Y0P
68185-46E20-G4V
Unavailable
10
TAPE, LOWER RH | MODEL W FOR Y0N
68185-46E20-K1V
Unavailable
10
TAPE, LOWER RH | MODEL W FOR 33J
68185-46E20-G2E
Unavailable
11
TAPE SET, UPPER RH | MODEL V FOR 22U
68180-46E70-G6U
Unavailable
11
TAPE SET, UPPER RH | MODEL V FOR Y0P
68180-46E70-G6T
Unavailable
11
TAPE SET, UPPER RH | MODEL W FOR Y0N
68180-46E70-K2P
Unavailable
11
TAPE SET, UPPER RH | MODEL W FOR 33J
68180-46E70-K2N
Unavailable
12
EMBLEM, RH | MODEL V FOR 22U
68181-46E30-G6S
Unavailable
12
EMBLEM, RH | MODEL V FOR Y0P
68181-46E30-G6R
Unavailable
12
EMBLEM, RH | MODEL W FOR Y0N
68181-46E30-K2H
Unavailable
12
EMBLEM, RH | MODEL W FOR 33J
68181-46E30-K2J
Unavailable
13
COWLING, UNDER LH (MAROON) | MODEL V FOR G2P
94408-46E70-22U
Unavailable
13
COWLING, UNDER (BLUE) | MODEL V FOR G4V
94408-46E70-Y0P
Unavailable
13
COWLING, UNDER (BLUE) | MODEL W FOR K1V
94408-46E70-Y0N
Unavailable
13
COWLING, UNDER (BLACK) | MODEL W FOR G2E; Includes Item(s) 14 - 16
94408-46E70-33J
Unavailable
14
TAPE, LOWER LH | MODEL V FOR 22U
68195-46E20-G2P
Unavailable
14
TAPE, LOWER LH | MODEL V FOR Y0P
68195-46E20-G4V
Unavailable
14
TAPE, LOWER LH | MODEL W FOR Y0N
68195-46E20-K1V
Unavailable
14
TAPE, LOWER LH | MODEL W FOR 33J
68195-46E20-G2E
Unavailable
15
TAPE SET, UPPER LH | MODEL V FOR 22U
68190-46E70-G6U
Unavailable
15
TAPE SET, UPPER LH | MODEL V FOR Y0P
68190-46E70-G6T
Unavailable
15
TAPE SET, UPPER LH | MODEL W FOR YON
68190-46E70-K2P
Unavailable
15
TAPE SET, UPPER LH | MODEL W FOR 33J
68190-46E70-K2N
Unavailable
16
EMBLEM, LH | MODEL V FOR 22U
68181-46E30-G6S
Unavailable
16
EMBLEM, LH | MODEL V FOR Y0P
68181-46E30-G6R
Unavailable
16
EMBLEM, LH | MODEL W FOR YON
68181-46E30-K2H
Unavailable
16
EMBLEM, LH | MODEL W FOR 33J
68181-46E30-K2J
Unavailable
17
PANEL, LOWER RH
94416-46E20
Unavailable
18
PANEL, LOWER LH
94426-46E20
Unavailable
19
COWLING, INNER RH (BLACK)
94461-46E00-019
Unavailable
20
COWLING, INNER LH (BLACK)
94462-46E00-019
Unavailable
21
COWLING, CENTER (BLACK)
94498-46E00-019
Unavailable
22
SCREEN SET, WIND
94610-46E20
Unavailable
24
CHSHION, PANEL REAR RH | CUT 50X23
61374-08010
Unavailable
25
COLOR : G2P = 22U(MAROON),
SPECIAL NOTE
Unavailable
