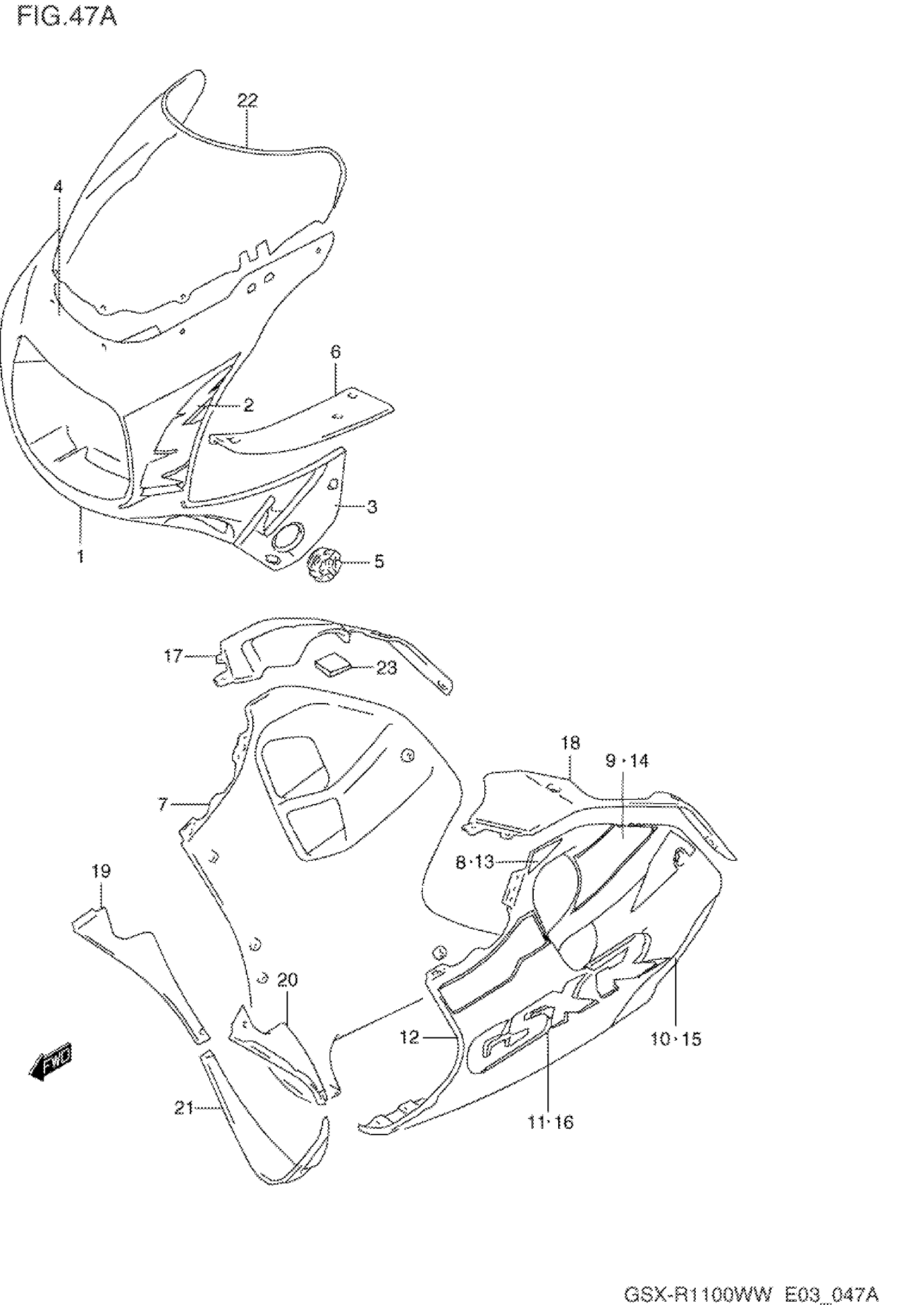

Suzuki GSX-R1100W (1998) COWLING BODY (MODEL T) Diagram

#

Description
Price

1

COWLING ASSY, BODY (BLACK) | FOR E9P

94400-46E60-33J

Unavailable

1

COWLING ASSY, BODY (BLACK) | FOR C3B; Includes Item(s) 2 - 5

94400-46E60-1NX

Unavailable

2

TAPE SET, BODY FRONT | FOR 33J

68270-46E20-F0H

Unavailable

2

TAPE SET, BODY FRONT | FOR 1NX

68270-46E20-C8K

Unavailable

3

TAPE SET, SIDE | FOR 33J

68280-46E10-F0J

Unavailable

3

TAPE SET, SIDE | FOR 1NX

68280-46E10-C3R

Unavailable

4

TAPE, BODY (WHITE) | FOR 33J

68275-46E00-0JW

Unavailable

4

TAPE, BODY (GRAY) | FOR 1NX

68275-46E00-17U

Unavailable

5

PLATE, FRONT TURN RH

94416-17E21

Unavailable

5

PLATE, FRONT TURN LH

94417-17E21

Unavailable

6

PANEL, UPPER RH

94415-17E21

Unavailable

6

PANEL, UPPER LH

94425-17E21

Unavailable

7

COWLING, UNDER RH (BLUE) | FOR E9P

94407-46E60-Z12

Unavailable

7

COWLING, UNDER RH (PURPLE) | FOR C3B; Includes Item(s) 8 - 11

94407-46E60-1TU

Unavailable

8

TAPE, UPPER RH (BLACK)

68185-46E10-33J

Unavailable

9

TAPE SET, CENTER RH | FOR Z12

68180-46E50-E9P

Unavailable

9

TAPE SET, CENTER RH | FOR 1TU

68180-46E50-C3B

Unavailable

10

TAPE SET, LOWER RH (WHITE) | FOR Z12

68180-46E60-0JW

Unavailable

10

TAPE SET, LOWER RH (GRAY) | FOR 1TU

68180-46E60-17U

Unavailable

11

EMBLEM, RH | FOR Z12

68181-46E20-Z77

Unavailable

11

EMBLEM, RH | FOR 1TU

68181-46E20-Z78

Unavailable

12

COWLING, UNDER LH (BLUE) | FOR E9P

94408-46E60-Z12

Unavailable

12

COWLING, UNDER (WHITE) | FOR C3B; Includes Item(s) 13 - 16

94408-46E60-1TU

Unavailable

13

TAPE, UPPER LH (BLACK)

68195-46E10-33J

Unavailable

14

TAPE SET, CENTER LH | FOR Z12

68190-46E50-E9P

Unavailable

14

TAPE SET, CENTER LH | FOR 1TU

68190-46E50-C3B

Unavailable

15

TAPE SET, LOWER LH (WHITE) | FOR Z12

68190-46E60-0JW

Unavailable

15

TAPE SET, LOWER LH (GRAY) | FOR 1TU

68190-46E60-17U

Unavailable

16

EMBLEM, LH | FOR Z12

68191-46E20-Z77

Unavailable

16

EMBLEM, LH | FOR 1TU

68191-46E20-Z78

Unavailable

17

PANEL, LOWER RH

94416-46E20

Unavailable

18

PANEL, LOWER LH

94426-46E20

Unavailable

19

COWLING, INNER RH (BLACK)

94461-46E00-019

Unavailable

20

COWLING, INNER LH (BLACK)

94462-46E00-019

Unavailable

21

COWLING, CENTER (BLACK)

94498-46E00-019

Unavailable

22

SCREEN SET, WIND

94610-46E20

Unavailable

23

CUSHION, REAR BAG | 60X60 This part replaces 94475-48B10.

94915-44E00

$12.65

23

CHSHION, PANEL REAR RH | CUT 50X23

61374-08010

Unavailable

24

COLOR : E9P = 0JW(WHITE),

SPECIAL NOTE

Unavailable
