COWLING BODY (MODEL S)

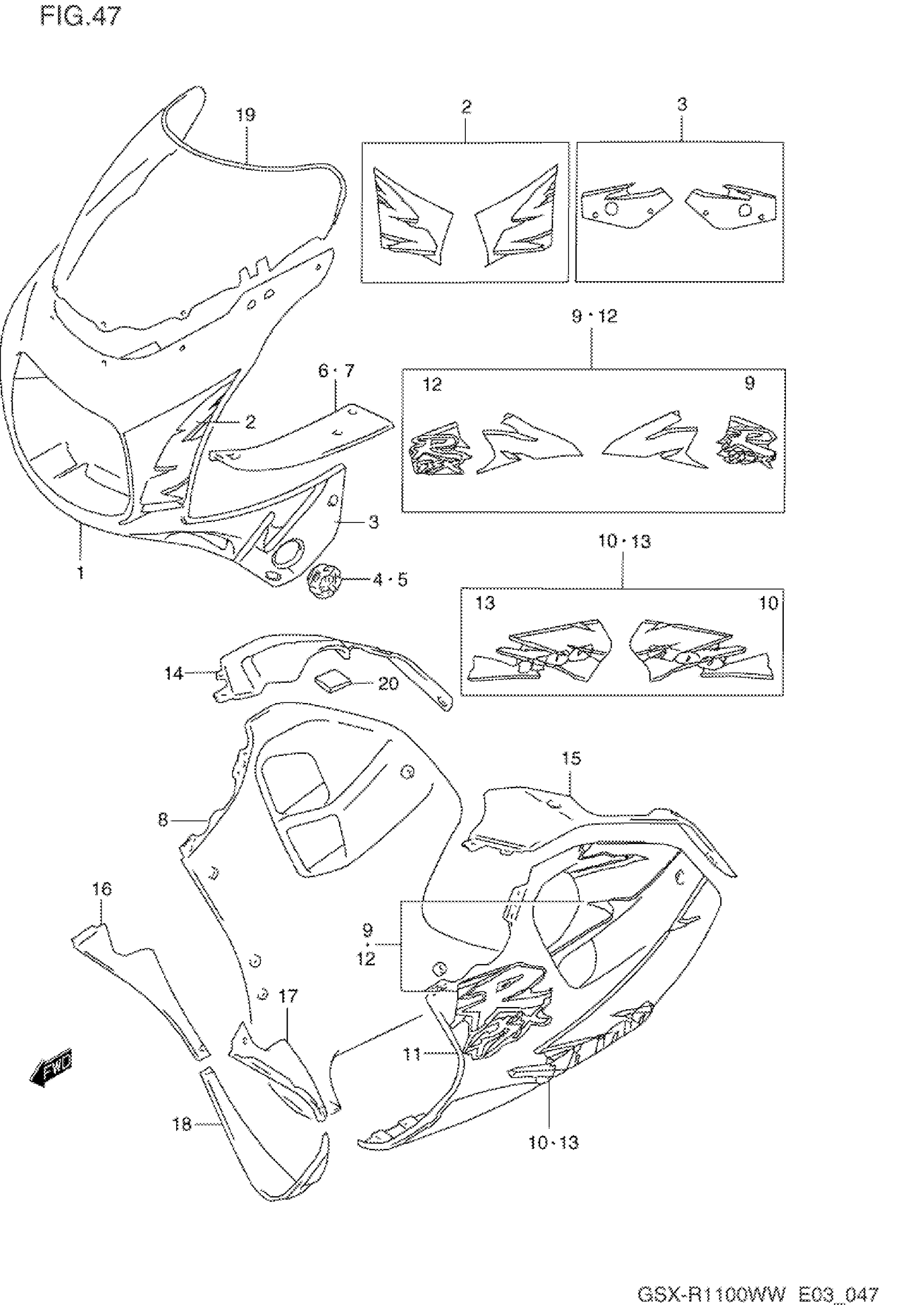

Suzuki GSX-R1100W (1998) COWLING BODY (MODEL S) Diagram
#
1
COWLING ASSY, BODY (WHITE) | FOR M18
94400-17EG1-0JW
Unavailable
1
COWLING ASSY, BODY (BLACK) | FOR C3R; Includes Item(s) 2 - 5
94400-17EG1-33J
Unavailable
2
TAPE SET, BODY FRONT | FOR 0JW
68270-17E50-D4H
Unavailable
2
TAPE SET, BODY FRONT | FOR 33J
68270-17E50-D6B
Unavailable
3
TAPE SET, BODY SIDE | FOR 0JW
68280-17E20-D4G
Unavailable
3
TAPE SET, BODY SIDE | FOR 33J
68280-17E20-D5Z
Unavailable
4
PLATE, TURNSIGNAL,RH
94416-17E21
Unavailable
5
PLATE, TURNSIGNAL,LH
94417-17E21
Unavailable
6
PANEL, UPPER RH
94415-17E21
Unavailable
7
PANEL, UPPER LH
94425-17E21
Unavailable
8
COWLING, UNDER RH (BLUE) | FOR M18
94407-46E40-1LE
Unavailable
8
COWLING, UNDER RH (PURPLE) | FOR C3R; Includes Item(s) 9 - 10
94407-46E40-1TU
Unavailable
9
TAPE SET, UNDER RH | FOR 1LE
68180-46E40-Y76
Unavailable
9
TAPE SET, UNDER RH | FOR 1TU
68180-46E40-Y78
Unavailable
10
TAPE, UNDER RH | FOR 1LE
68185-46E00-D6C
Unavailable
10
TAPE, UNDER RH | FOR 1TU
68185-46E00-D6E
Unavailable
11
COWLING, UNDER LH (BLUE) | FOR M18
94408-46E40-1LE
Unavailable
11
COWLING, UNDER LH (PURPLE) | FOR C3R; Includes Item(s) 12 - 13
94408-46E40-1TU
Unavailable
12
TAPE SET, UNDER LH | FOR 1LE
68190-46E40-Y76
Unavailable
12
TAPE SET, UNDER LH | FOR 1TU
68190-46E40-Y78
Unavailable
13
TAPE, UNDER LH | FOR 1LE
68195-46E00-D6C
Unavailable
13
TAPE, UNDER LH | FPR 1TU
68195-46E00-D6E
Unavailable
14
PANEL, LOWER RH
94416-46E20
Unavailable
15
PANEL, LOWER LH
94426-46E20
Unavailable
16
COWLING, INNER RH (BLACK)
94461-46E00-019
Unavailable
17
COWLING, INNER LH (BLACK)
94462-46E00-019
Unavailable
18
COWLING, CENTER (BLACK)
94498-46E00-019
Unavailable
19
SCREEN SET, WIND
94610-46E20
Unavailable
20
CUSHION, LOWER PANEL RH | REAR CUT 30X25
61374-08010
Unavailable
21
COLOR : M18 = 0JW(WHITE),
SPECIAL NOTE
Unavailable
