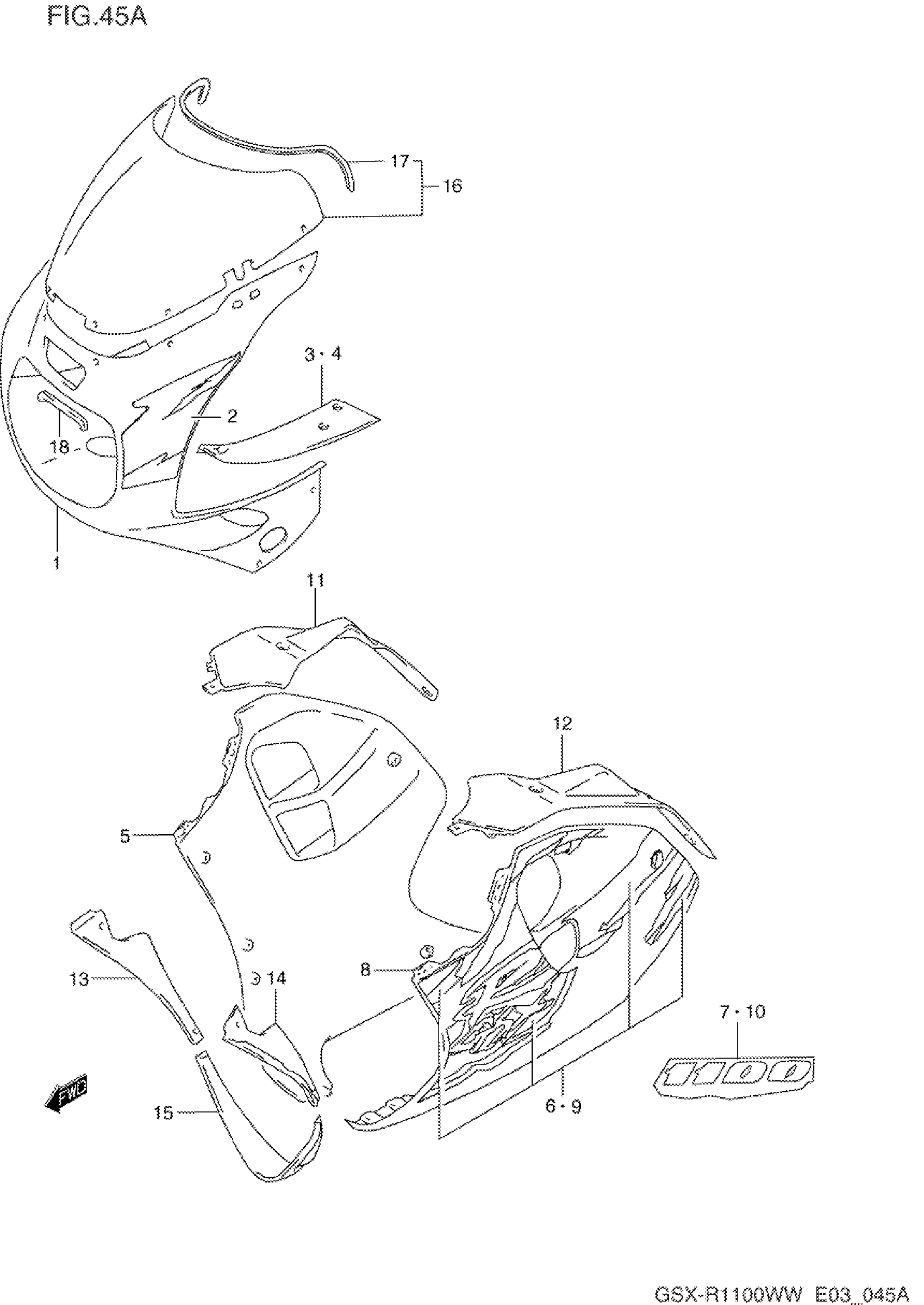

Suzuki GSX-R1100W (1998) COWLING BODY (MODEL R M18) Diagram

#

Description
Price

1

COWLING ASSY, BODY (WHITE) | Includes Item(s) 2

94400-46E20-0JW

Unavailable

2

TAPE SET, BODY

68270-46E00-C3T

Unavailable

3

PANEL, UPPER RH

94415-17E00

Unavailable

4

PANEL, UPPER LH

94425-17E00

Unavailable

5

COWLING ASSY, UPPER RH (BLUE) | Includes Item(s) 6 - 7

94407-46E20-1LE

Unavailable

6

TAPE SET, UNDER RH

68180-46E20-1WJ

Unavailable

7

EMBLEM, 1100

68181-46E00-1WE

Unavailable

8

COWLING ASSY, UNDER LH (BLUE) | Includes Item(s) 9 - 10

94408-46E20-1LE

Unavailable

9

TAPE SET, UNDER LH

68190-46E20-1WJ

Unavailable

10

EMBLEM, 1100

68181-46E00-1WE

Unavailable

11

PANEL, LOWER RH

94416-46E00

Unavailable

12

PANEL, LOWER LH

94426-46E00

Unavailable

13

COWLING, UNDER INNER RH

94461-46E00-019

Unavailable

14

COWLING, UNDER INNER LH

94462-46E00-019

Unavailable

15

COWLING, UNDER CENTER (BLACK)

94498-46E00-019

Unavailable

16

SCREEN SET, WIND | ->94610-46E01 This part replaces 94610-46E00.

94610-46E01

Unavailable

16

SCREEN SET, WIND | WITH CLIP94637-21E00(2PCS); Includes Item(s) 17

94610-46E01

Unavailable

17

MOLDING | L:800->600

94631-18D01

Unavailable

18

CUSHION, POSITION LAMP

94418-17E00

Unavailable

19

COLOR :

SPECIAL NOTE

Unavailable
