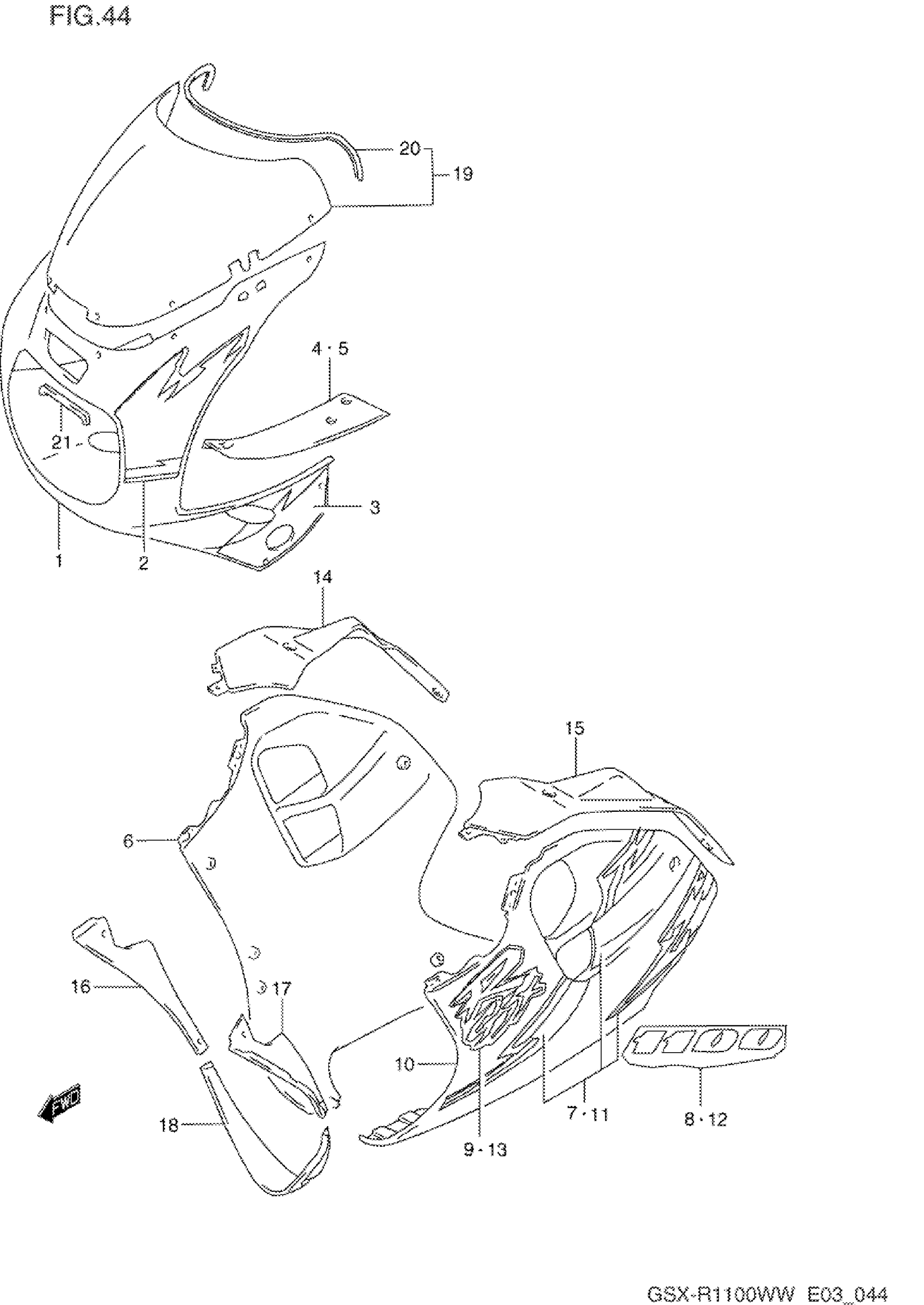

Suzuki GSX-R1100W (1998) COWLING BODY (MODEL P M18) Diagram

#

Description
Price

1

COWLING ASSY, BODY (WHITE) | Includes Item(s) 2 - 3

94400-17E30-1KX

Unavailable

2

TAPE SET, FRONT

68270-17E20-A7L

Unavailable

3

TAPE SET, SIDE

68280-17E11-1LE

Unavailable

4

PANEL, UPPER RH

94415-17E00

Unavailable

5

PANEL, UPPER LH

94425-17E00

Unavailable

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 9 This part replaces 94407-46E00-1LE.

94471-46E01

Unavailable

7

TAPE SET, UNDER RH

68180-46E00-A5S

Unavailable

8

EMBLEM, 1100

68181-46E00-14B

Unavailable

9

EMBLEM

68181-46E10-A6D

Unavailable

10

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 13 This part replaces 94408-46E00-1LE.

94481-46E00

Unavailable

11

TAPE SET, UNDER LH

68190-46E00-A5S

Unavailable

12

EMBLEM, 1100

68181-46E00-14B

Unavailable

13

EMBLEM

68181-46E10-A6D

Unavailable

14

PANEL, LOWER RH

94416-46E00

Unavailable

15

PANEL, LOWER LH

94426-46E00

Unavailable

16

COWLING, UNDER INNER RH

94461-46E00-019

Unavailable

17

COWLING, UNDER INNER LH

94462-46E00-019

Unavailable

18

COWLING, UNDER CENTER (BLACK)

94498-46E00-019

Unavailable

19

SCREEN SET, WIND | ->94610-46E01 This part replaces 94610-46E00.

94610-46E01

Unavailable

19

SCREEN SET, WIND | WITH CLIP94637-21E00(2PCS); Includes Item(s) 20

94610-46E01

Unavailable

20

MOLDING | L:800->L:600

94631-18D01

Unavailable

21

CUSHION, POSITION LAMP

94418-17E00

Unavailable

22

COLOR :

SPECIAL NOTE

Unavailable
