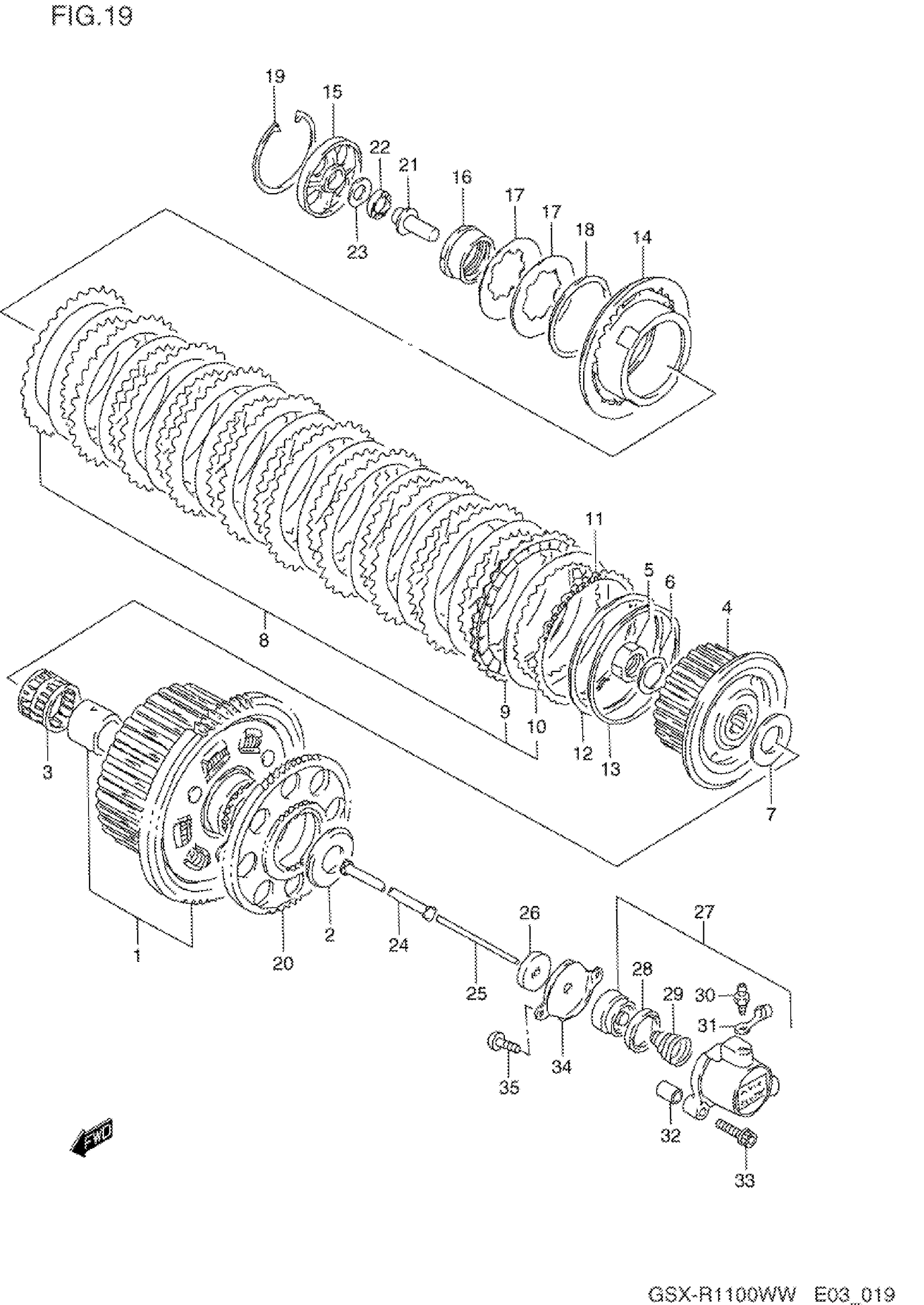

Suzuki GSX-R1100W (1998) CLUTCH (MODEL P/R) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:72) This part replaces 21200-40830.

21200-40831

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE

21410-46E00

Unavailable

5

NUT

09159-24008

$16.50

6

WASHER

09164-24006

$3.76

7

.WASHER (25X50X2.5)

09160-25056

$11.61

8

PLATE ASSY, CLUTCH | Includes Item(s) 9 - 10 This part replaces 21400-40C00.

21400-40C01

Unavailable

9

PLATE, DRIVE NO.1 (T:2.6)

21441-48B00

$20.65

10

PLATE, DRIVEN (T:2)

21451-48B00

$11.44

11

PLATE, DRIVE NO.2 (T:2.6)

21442-46E00

Unavailable

12

WAVE WASHER

09164-00007

Unavailable

13

SEAT, WAVE WASHER

21471-40C01

Unavailable

14

DISC, PRESSURE

21462-40C02

Unavailable

15

LIFTER, CLUTCH PRESSURE DISK

21463-40C01

Unavailable

16

HOLDER, CLUTCH SPRING

21611-40C01

Unavailable

17

SPRING

09164-47001

$9.35

18

SEAT, CLUTCH SPRING

21623-40C00

Unavailable

19

CIRCLIP, CLUTCH PRESSURE This part replaces 09381-84002.

09381-84003

$12.22

20

GEAR, ALTERNATOR (NT:34/61) | MODEL P This part replaces 22721-17E01.

22721-21E02

Unavailable

20

GEAR, ALTERNATOR (NT:34/61) | MODEL R This part replaces 22721-21E00.

22721-21E02

Unavailable

21

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

$23.92

22

BEARING

09263-15003

$8.29

23

WASHER, CLUTCH PUSH | MODEL P This part replaces 09160-15015.

09160-15045

$3.89

23

WASHER (15.5X28X1) | MODEL R

09160-15045

$3.89

24

ROD, PUSH RH

23110-27A00

$21.09

25

ROD, PUSH LH (L:108.5)

23111-24A01

$13.30

26

OIL SEAL

09285-06015

$7.98

27

CYLINDER,CLUTCH | MODEL P This part replaces 23160-06B01.

23160-06B03

$101.68

27

CYLINDER,CLUTCH | MODEL R; Includes Item(s) 28 - 31 This part replaces 23160-06B02.

23160-06B03

$101.68

28

CUP

23163-06B00

$7.22

29

SPRING

23164-05A00

$4.34

30

BLEEDER

59121-01A00

$8.73

31

CAP, BLEEDER

59122-01A00

$4.34

32

PIN

04211-09129

$1.65

33

BOLT | MODEL P This part replaces 07130-06255.

07130-0625B

$3.04

33

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$3.04

34

COVER, CYLINDER

23117-46E00

$6.79

35

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

36

REFER TO FIG.19A(D-11) FOR

SPECIAL NOTE

Unavailable
