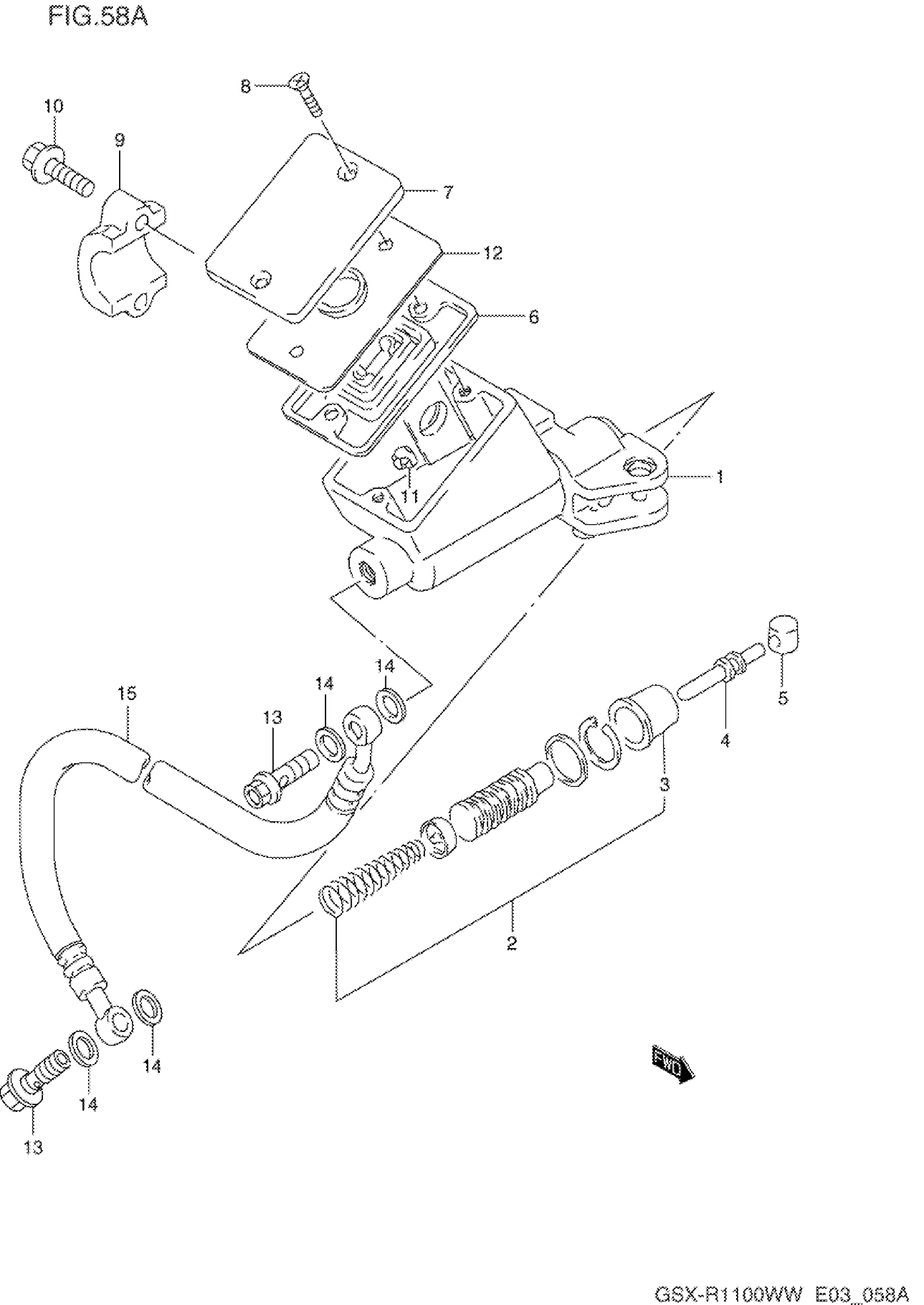

Suzuki GSX-R1100W (1998) CLUTCH MASTER CYLINDER (MODEL S/T/V/W) Diagram

#

Description
Price

1

CYLINDER ASSY, CLUTCH MASTER | Includes Item(s) 2 - 12

59800-40C12

Unavailable

2

PISTON & CUP SET

59800-08810

$39.48

3

BOOT

59666-44300

$5.80

4

PUSH ROD

59871-08A00

Unavailable

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

59667-49460

$9.78

7

CAP

59669-41C00

$32.56

8

SCREW

69689-49300

$1.91

9

HOLDER

59671-19B00

$20.07

10

BOLT HOLDER SET

59675-19C00

$4.02

11

PROTECTOR

59664-48B00

$11.02

12

PLATE

59668-41C00

$9.32

13

UNION This part replaces 09360-10039.

09360-10061

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE, CLUTCH

59910-46E10

Unavailable
