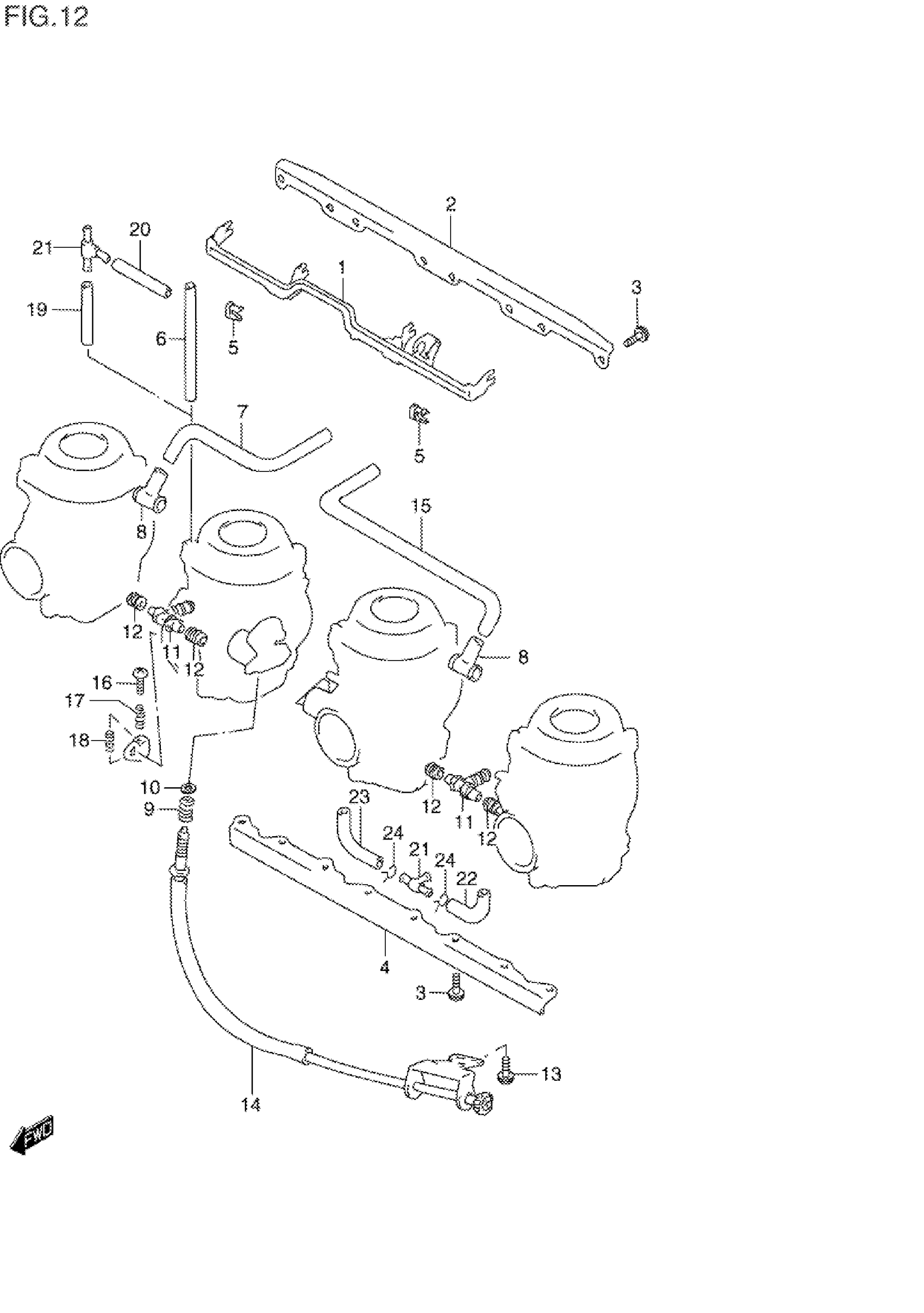

Suzuki GSX-R1100W (1998) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER, STARTER

13413-17E00

Unavailable

2

PLATE

13628-17E10

Unavailable

3

SCREW | MODEL P/R This part replaces 13602-05128.

02112-05127

$2.01

3

SCREW | MODEL S/T/V/W

02112-05127

$2.01

4

NO DESCRIPTION AVAILABLE This part replaces 13628-17E00.

13620-17EV0

Unavailable

5

HOLDER

13439-17C00

$14.10

6

.HOSE | MODEL P/R/S This part replaces 13687-17C00.

09352-50006-600

$6.95

6

.HOSE | MODEL T/V/W This part replaces 09352-50903-600.

09352-50006-600

$6.95

7

HOSE ASSY

13684-17E10

Unavailable

8

HOSE

13684-20C10

$5.32

9

SPRING | MODEL P/R This part replaces 13268-43410.

13375-14D10

$5.90

9

SPRING | MODEL S

13375-60A00

$9.50

9

SPRING | MODEL T/V/W

13375-14D10

$5.90

10

WASHER

13427-38300

$2.17

11

NIPPLE

13685-44B00

$11.19

12

SEAL

13673-44B00

$4.40

13

SCREW | MODEL P/R This part replaces 13602-05108.

02112-05107

$1.46

13

SCREW | MODEL S/T/V/W

02112-05107

$1.46

14

ADJUSTER ASSY

13279-17E00

Unavailable

15

HOSE ASSY

13684-17E00

Unavailable

16

SCREW

13267-44B00

$4.62

17

SPRING

13271-44B00

$3.83

18

SPRING

13268-17C10

$6.08

19

.HOSE | CALIFORNIA ONLY This part replaces 09352-50903-600.

09352-50006-600

$6.95

20

HOSE (5X9X600->100) | CALIFORNIA ONLY

09352-50901-600

$7.63

21

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$11.96

22

HOSE | MODEL P/RCALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.28

22

HOSE | MODEL S/T/V/WCALIFORNIA ONLY This part replaces 13684-48B10.

13684-48B11

$15.28

23

HOSE | MODEL P/RCALIFORNIA ONLY This part replaces 13684-18E10.

13684-48B11

$15.28

23

HOSE | MODEL S/T/V/WCALIFORNIA ONLY This part replaces 13684-48B10.

13684-48B11

$15.28

24

CLIP | MODEL P/R/SCALIFORNIA ONLY This part replaces 13671-48B10.

09401-10401

$1.49

24

CLIP | MODEL T/V/WCALIFORNIA ONLY This part replaces 09401-10410.

09401-10401

$1.49
