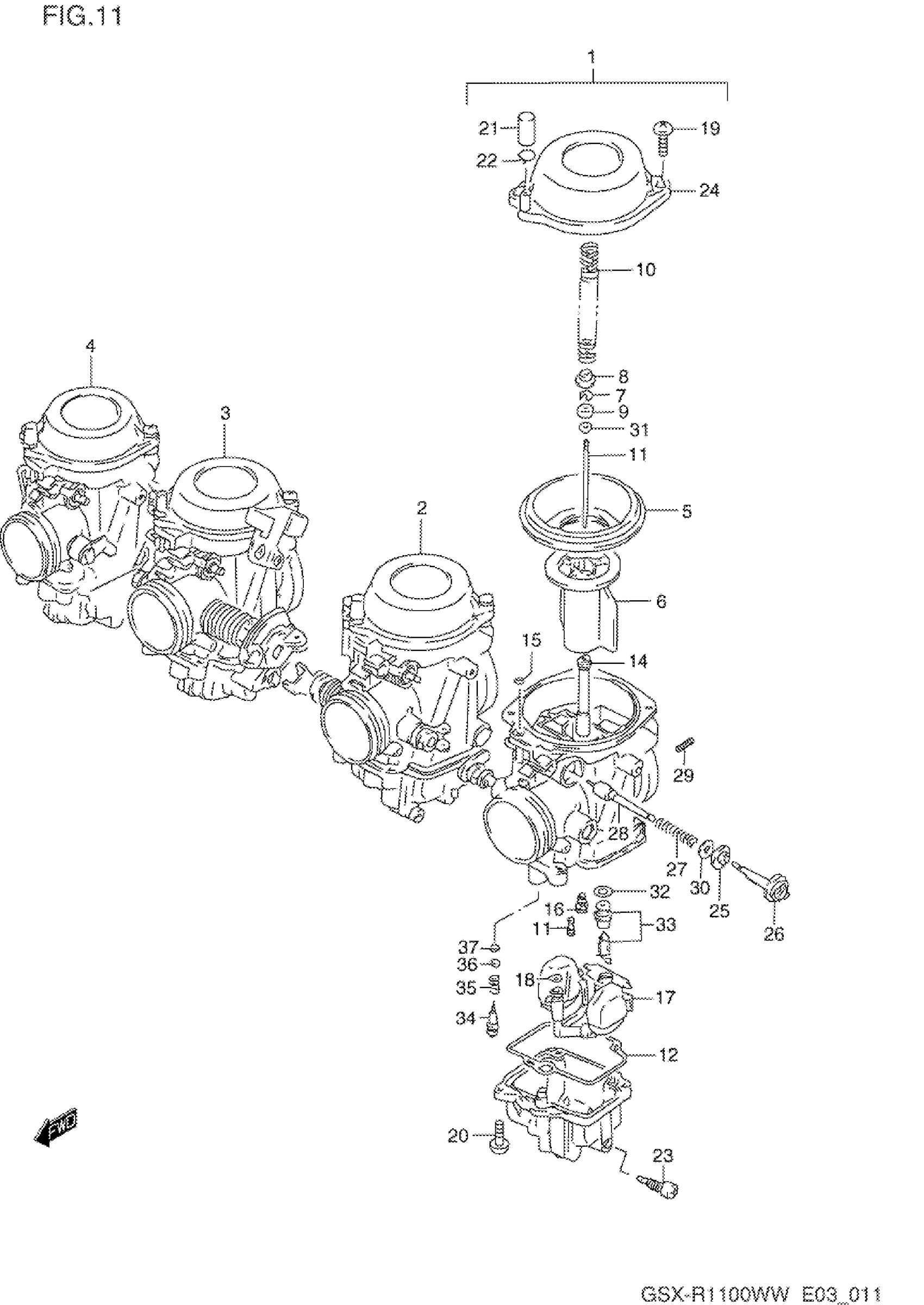

Suzuki GSX-R1100W (1998) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL P/R

13201-46E10

Unavailable

1

CARBURETOR ASSY, LH | MODEL S/T/V/W

13201-46EC0

Unavailable

1

CARBURETOR ASSY, LH | MODEL P/RCALIFORNIA ONLY

13201-46E60

Unavailable

1

CARBURETOR ASSY, LH | MODEL S/T/V/WCALIFORNIA ONLY

13201-46EJ0

Unavailable

2

CARBURETOR ASSY, ML | MODEL P/R

13202-46E10

Unavailable

2

CARBURETOR ASSY, ML | MODEL S/T/V/W

13202-46EC0

Unavailable

2

CARBURETOR ASSY, ML | MODEL P/RCALIFORNIA ONLY

13202-46E60

Unavailable

2

CARBURETOR ASSY, ML | MODEL S/T/V/WCALIFORNIA ONLY

13202-46EJ0

Unavailable

3

CARBURETOR ASSY, MR | MODEL P/R

13203-46E10

Unavailable

3

CARBURETOR ASSY, MR | MODEL S/T/V/W

13203-46EC0

Unavailable

3

CARBURETOR ASSY, MR | MODEL P/RCALIFORNIA ONLY

13203-46E60

Unavailable

3

CARBURETOR ASSY, MR | MODEL S/T/V/WCALIFORNIA ONLY

13203-46EJ0

Unavailable

4

CARBURETOR ASSY, RH | MODEL P/R

13204-46E10

Unavailable

4

CARBURETOR ASSY, RH | MODEL S/T/V/W

13204-46EC0

Unavailable

4

CARBURETOR ASSY, RH | MODEL P/RCALIFORNIA ONLY

13204-46E60

Unavailable

4

CARBURETOR ASSY, RH | MODEL S/T/V/WCALIFORNIA ONLY; Includes Item(s) 5 - 37

13204-46EJ0

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

6

VALVE, PISTON | MODEL P/R

13501-17C00

Unavailable

6

VALVE, PISTON | MODEL S/T/V/W

13501-02D00

$93.63

7

E RING

13394-10010

$5.45

8

RING

13382-42A00

$4.48

9

RING

13387-47010

$7.22

10

SPRING | LH,RH MODEL P/R This part replaces 13417-17E00.

13417-17D00

$7.18

10

SPRING | LH,RH MODEL S/T/V/W

13417-17D00

$7.18

10

SPRING | ML,MRCALIFORNIA ONLY

13503-34A00

Unavailable

11

JET NEEDLE (5C34-1) | MODEL P/R

13383-46E20

Unavailable

11

JET NEEDLE (5D75) | MODEL S/T/V/W

13383-46E60

Unavailable

11

JET NEEDLE (5D62-1) | CALIFORNIA ONLY

13383-46E30

Unavailable

12

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

13

JET, PILOT (30)

09492-30010

$18.42

14

NEEDLE JET (O-8M) | MODEL P/R This part replaces 09494-00802.

09494-00851

Unavailable

14

NEEDLE JET (O-8M) | MODEL S/T/V/W

09494-00851

Unavailable

14

NEEDLE JET (O-8M) | MODEL P/RCALIFORNIA ONLY This part replaces 09494-00804.

09494-00852

Unavailable

14

NEEDLE JET (O-8M) | MODEL S/T/V/WCALIFORNIA ONLY

09494-00852

Unavailable

15

O RING

13509-17C00

$4.34

16

JET, MAIN (127.5) | LH,RH,MODEL P/R

09491-25011

$11.38

16

JET, MAIN (117.5) | LH,RH,MODEL S/T/V/W

09491-23017

$11.83

16

JET, MAIN (125) | ML,MR,MODEL P/R

09491-25010

$11.02

16

JET, MAIN (120) | ML,MR,MODEL S/T/V/W

09491-24016

$11.38

16

JET, MAIN (122.5) | MODEL P/RCALIFORNIA ONLY

09491-24013

$11.38

16

JET, MAIN (117.5) | MODEL S/T/V/WCALIFORNIA ONLY

09491-23017

$11.83

17

FLOAT ASSY | MODEL P/R

13250-40C00

Unavailable

17

FLOAT/NEEDLE VALVE ASSY | MODEL S/T/V/W This part replaces 13250-12E00.

13250-12EH0

$116.02

18

.O RING

13374-46710

$4.48

19

SCREW | MODEL P/R/S This part replaces 13602-34390.

02112-7516A

$2.41

19

SCREW | MODEL T/V/W This part replaces 02112-75163.

02112-7516A

$2.41

20

SCREW | MODEL P/R This part replaces 13602-05129.

02112-05127

$1.97

20

SCREW | MODEL S/T/V/W

02112-05127

$1.97

21

CAP | LH,ML,RH

13508-17C00

$4.74

22

CLIP | LH,ML,RH MODEL P/R/S This part replaces 13671-33600.

13671-05A40

$3.71

22

CLIP | LH,ML,RH MODEL T/V/W

13671-05A40

$3.71

23

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

24

COVER, DIAPHRAGM | MODEL P/R

13502-17E20

Unavailable

24

COVER, DIAPHRAGM | MODEL S/T/V/W

13502-41C00

$49.42

24

COVER, DIAPHRAGM | CALIFORNIA ONLY

13502-17C00

Unavailable

25

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

26

HOLDER

13418-17C10

$13.90

27

SPRING

13417-26D00

$6.08

28

PLUNGER ASSY

13411-05320

$26.80

29

JET, AIR (1.3) | MODEL P/R

09493-26004

$17.02

29

JET, AIR (1.2) | MODEL S/T/V/W

09493-24007

$16.15

29

JET, AIR (1.15) | MODEL P/RCALIFORNIA ONLY

09493-23002

Unavailable

29

JET, AIR (1.2) | MODEL S/T/V/WCALIFORNIA ONLY

09493-24007

$16.15

30

WASHER

13432-47090

$2.28

31

WASHER

13382-44030

$3.71

32

O RING This part replaces 13374-44080.

13374-35C00

$5.99

33

VALVE ASSY,NEED | MODEL P/R This part replaces 13370-07D00.

13370-46E21

$73.30

33

VALVE ASSY,NEED | MODEL S/T/V This part replaces 13370-46E10.

13370-46E21

$73.30

33

VALVE ASSY,NEED | MODEL W This part replaces 13370-46E20.

13370-46E21

$73.30

34

SCREW, AIR (2 1/8) | CALIFORNIA ONLY

13279-47070

$13.36

35

.SPRING (NT:45)

13268-47070

$4.34

36

WASHER

13291-29900

$1.98

37

O-RING This part replaces 13295-29900.

13295-29901

$4.34
