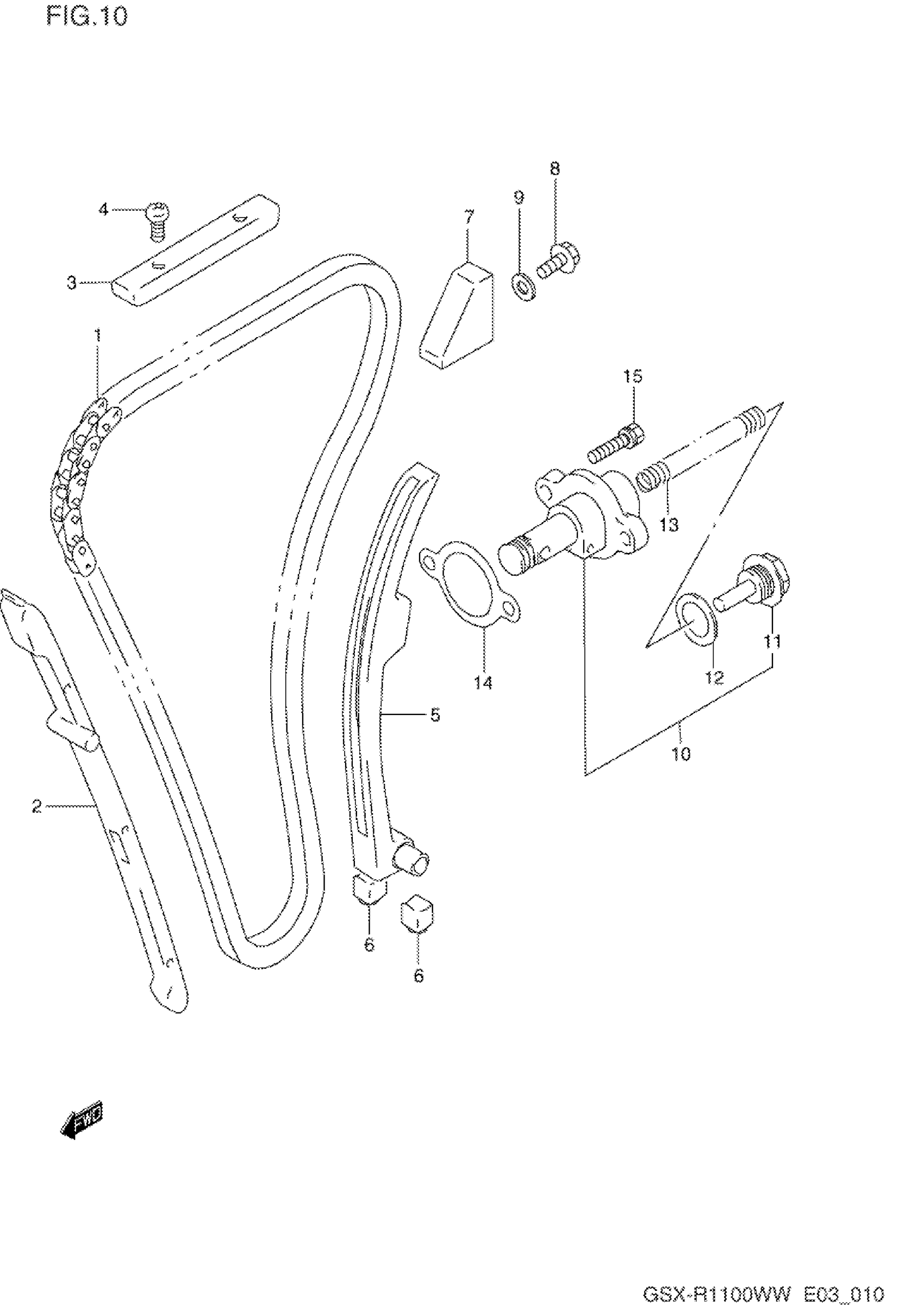

Suzuki GSX-R1100W (1998) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | MODEL P/R This part replaces 12760-46E00.

12760-46E01

Unavailable

1

CHAIN, CAM SHAFT DRIVE | MODEL S/T/V/W

12760-46E01

Unavailable

2

GUIDE, CAM CHAIN NO.1

12771-46E00

Unavailable

3

GUIDE, CAM CHAIN NO.2

12782-46E01

Unavailable

4

SCREW | MODEL P

02112-05087

$1.49

4

SCREW | MODEL R/S/T/V/W This part replaces 02112-05083.

02112-0508A

$1.49

5

TENSIONER, CAM CHAIN

12810-46E00

Unavailable

6

CUSHION

12814-34200

$5.58

7

GUIDE, CAM CHAIN NO.3 | MODEL P/R,->12791-71E01W/09168-06023& 01550-06163 This part replaces 12791-17E00.

12791-17E01

$79.07

7

GUIDE, CAM CHAIN NO.3 | MODEL S/T/V/W

12791-17E01

$79.07

8

BOLT, CLAMP | MODEL P This part replaces 01517-06125.

01550-0612A

$1.97

8

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

8

BOLT | MODEL S/T/V/W This part replaces 01550-06163.

01550-0616A

$1.97

9

WASHER

09168-06023

$2.35

10

ADJUSTER ASSY, TENSIONER | MODEL P/R

12830-46E00

Unavailable

10

ADJUSTER ASSY, TENSIONER | MODEL S/T/V/W; Includes Item(s) 11 - 13

12830-46E10

$158.33

11

PLUG

12834-27A00

Unavailable

12

GASKET

12832-27A00

$6.91

13

SPRING

12833-26D10

$6.88

14

GASKET, ADJUSTER

12837-27A10

$3.85

15

BOLT,6X23 | MODEL P This part replaces 09106-06059.

09106-06059-XC0

Unavailable

15

BOLT (6X22) | MODEL R/S

09106-06082

$2.62

15

BOLT (6X22) | MODEL T/V/W

09106-06079

Unavailable
