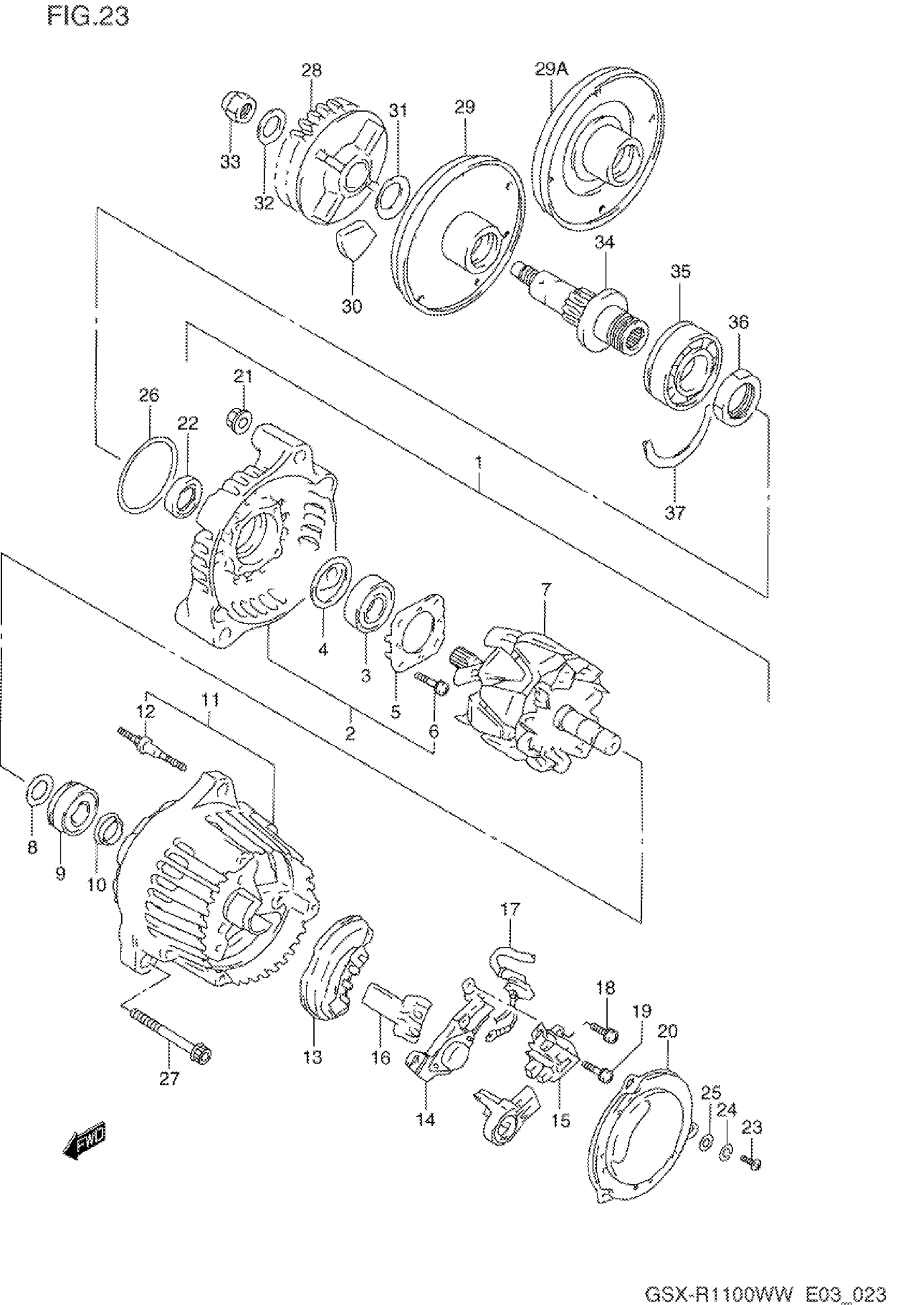

Suzuki GSX-R1100W (1998) ALTERNATOR (MODEL P/R) Diagram

#

Description
Price

1

ALTERNATOR ASSY | Includes Item(s) 2 - 25

31400-17E02

Unavailable

2

FRAME, DRIVE END

31580-17E00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

COVER, BEARING

31613-48B00

Unavailable

5

RETAINER, BEARING

31585-85251

Unavailable

6

SCREW, BEARING RETAINER

31586-17E00

Unavailable

7

ROTOR ASSY

31710-17E02

Unavailable

8

COVER (1)

31613-82610

Unavailable

9

BEARING

31612-48B00

$47.07

10

COVER (2)

31613-27A10

Unavailable

11

FRAME, END

31611-17E00

Unavailable

12

STUD BOLT

31587-85250

Unavailable

13

HOLDER, RECTIFIER

31621-27A00

Unavailable

14

REGULATOR

32500-27A00

Unavailable

15

HOLDER, BRUSH

31656-48B00

Unavailable

16

COVER, RECTIFIER

31687-17E00

$6.88

17

LEAD WIRE

31480-17E00

Unavailable

18

SCREW This part replaces 31516-85250.

02112-0406B

$1.55

19

SCREW (5X17)

31688-27A00

Unavailable

20

COVER

31614-17E00

Unavailable

21

NUT This part replaces 31692-17E00.

08310-0005A

$1.84

22

OIL SEAL SET This part replaces 31780-48B00.

31780-27X50

$53.82

23

SCREW This part replaces 02112-05085.

02112-0508A

$1.49

24

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

25

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

26

O RING

31156-17E00

$4.60

27

BOLT This part replaces 07120-08653.

07120-0865B

$4.68

28

GEAR, GENERATOR DRIVEN (NT:30 | MODEL P This part replaces 22730-46E01.

22730-21E00

Unavailable

28

GEAR, GENERATOR DRIVEN (NT:30 | MODEL R

22730-21E00

Unavailable

29

HOUSING, DAMPER | MODEL P

22734-17E00

Unavailable

29A

HOUSING, DAMPER | MODEL R This part replaces 22734-21E00.

22734-21E01

Unavailable

30

DAMPER

21231-17E10

Unavailable

31

WAVE WASHER

09164-18006

Unavailable

32

WASHER

08211-12243

Unavailable

33

NUT

09159-12010

Unavailable

34

SHAFT, GENERATOR DRIVE | ->22732-21E00 USED WITH08331-31256 This part replaces 22732-17E00.

22732-21E00

Unavailable

35

BEARING

09262-25110

Unavailable

36

NUT

09140-24012

Unavailable

37

C RING

09390-52003

$2.53

38

REFER TO FIG.23A(E-5) FOR

SPECIAL NOTE

Unavailable
