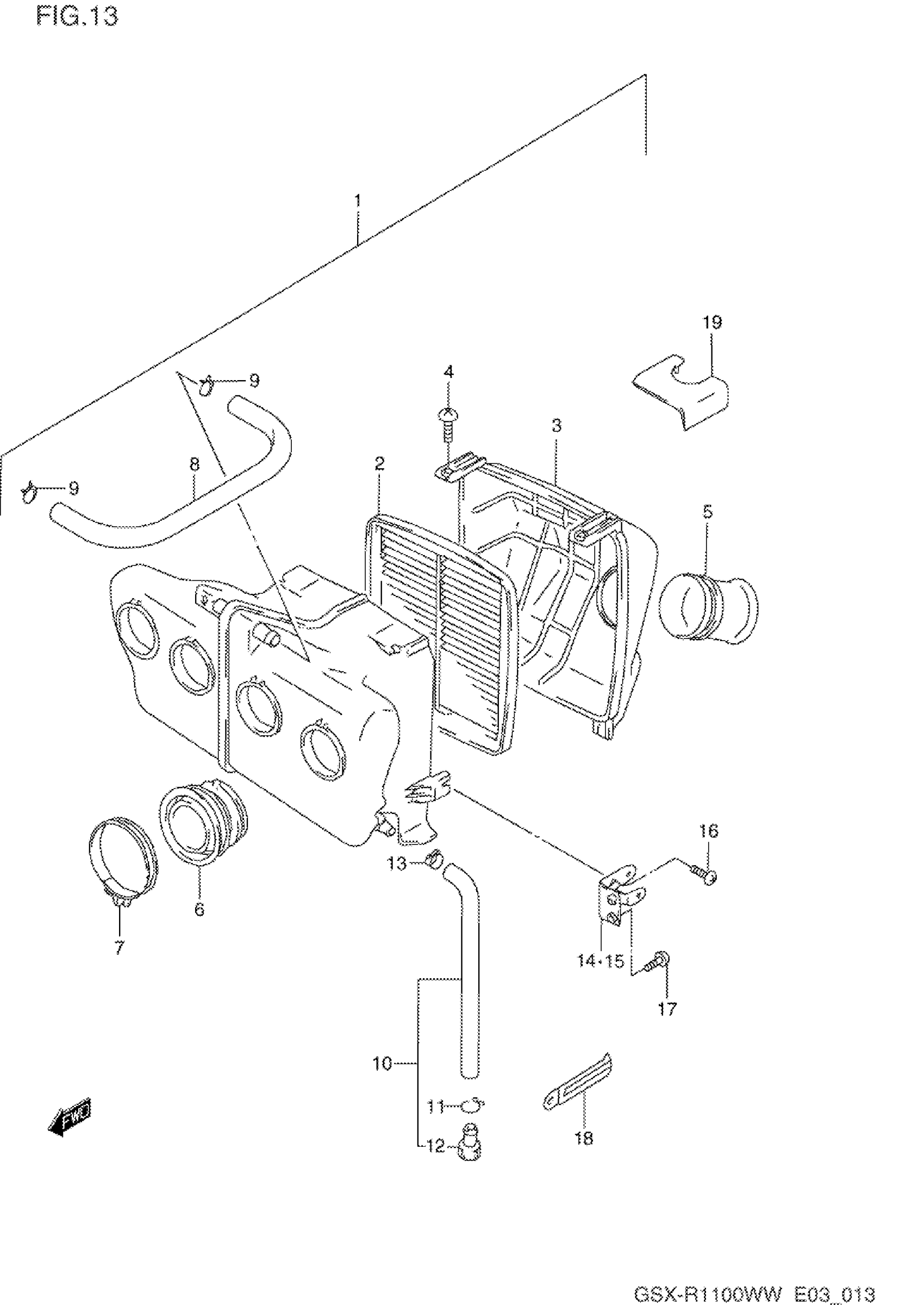

Suzuki GSX-R1100W (1998) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL P/R/S This part replaces 13700-46E10.

13700-46E11

Unavailable

1

CLEANER ASSY, AIR | MODEL T/V/W; Includes Item(s) 2 - 13

13700-46E11

Unavailable

2

FILTER, AIR

13780-17E00

$50.38

3

CAP, AIR CLEANER | MODEL P/R This part replaces 13740-17E01.

13740-17E02

$60.02

3

CAP, AIR CLEANER | MODEL S/T/V/W

13740-17E02

$60.02

4

.SCREW | MODEL P/R This part replaces 02142-05124.

02142-0512A

$1.49

4

.SCREW | MODEL S/T/V/W This part replaces 02142-05123.

02142-0512A

$1.49

5

TUBE,INLET This part replaces 13891-17E00.

13891-17E01

$27.00

6

TUBE, OUTLET

13881-46E10

Unavailable

7

CLAMP

09402-68208

$5.58

8

TUBE, BREATHER | MODEL P/R/S This part replaces 13853-17E00.

13853-46E00

Unavailable

8

TUBE, BREATHER | MODEL T/V/W

13853-46E00

Unavailable

9

CLIP | MODEL P/R This part replaces 13824-48B10.

09401-16401

$3.14

9

CLIP | MODEL S/T/V/W

09401-16401

$3.14

10

TUBE,DRAIN This part replaces 13870-21458.

13870-21459

$23.68

11

CLIP | MODEL P/R This part replaces 13824-18910.

09401-11101

$2.36

11

CLIP | MODEL S/T/V/W

09401-11101

$2.36

12

STOPPER, DRAIN

13877-38A00

$5.98

13

CLAMP | MODEL P/R This part replaces 13825-43400.

09401-13417

$2.26

13

CLAMP | MODEL S/T/V This part replaces 09401-13413.

09401-13417

$2.26

13

CLIP | MODEL W

09401-13417

$2.26

14

BRACKET, AIR CLEANER RH

13760-17E00

Unavailable

15

BRACKET, AIR CLEANER LH

13770-17E00

Unavailable

16

SCREW | MODEL P/R This part replaces 02142-06126.

02142-0612A

$1.49

16

SCREW | MODEL S/T/V/W This part replaces 02142-06123.

02142-0612A

$1.49

17

SCREW | MODEL P/R

02142-06167

$1.49

17

SCREW | MODEL S/T/V/W This part replaces 02142-06163.

02142-0616A

$1.49

18

CLAMP(L:80) | MODEL P/R This part replaces 09404-06426.

09404-06036

$1.74

18

CLAMP(L:80) | MODEL S/T/V/W This part replaces 09404-06433.

09404-06036

$1.74

19

COVER, AIR CLEANER

13735-46E00

Unavailable
