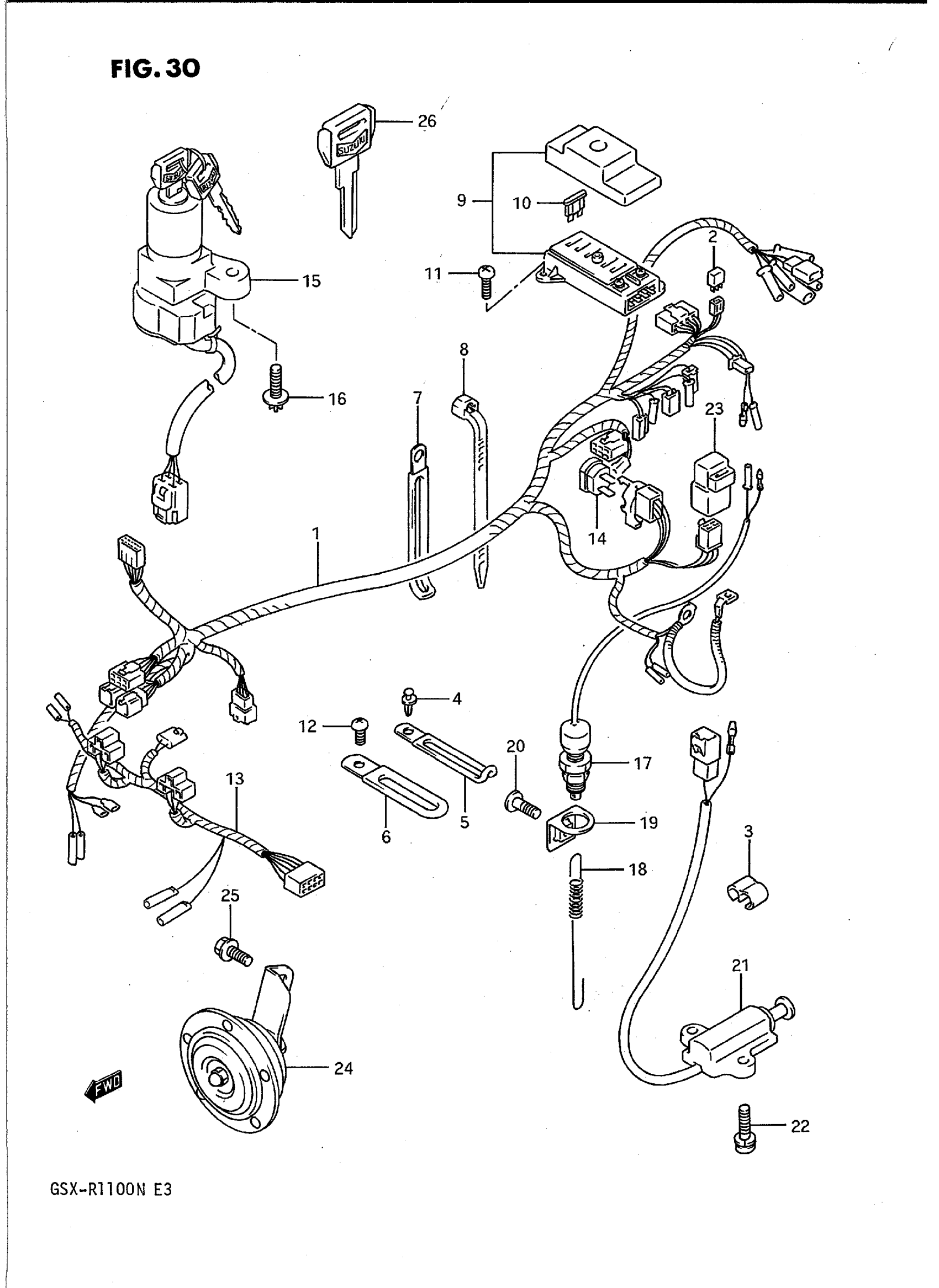

Suzuki GSX-R1100N (1992) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING | Includes Item(s) 2 This part replaces 36610-41C30.

36610-41C31

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

CLIP

09408-00002

$2.30

4

CLIP This part replaces 09409-07305.

09409-07305-5PK

$2.21

5

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

5

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

6

CLAMP (L:67)

09404-05403

Unavailable

7

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

8

CLAMP

09407-11401

$2.63

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

8

CLAMP

09407-25401

$4.66

9

BOX ASSY, FUSE | Includes Item(s) 10 - 10

36740-17D00

Unavailable

10

FUSE (10A)

09481-10101

$2.07

10

FUSE (20A)

09481-20101

$2.12

11

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

12

SCREW This part replaces 02142-05128.

02142-05127

$1.97

13

WIRE, HEADLAMP LEAD

36856-41C00

Unavailable

14

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

15

LOCK ASSY, STEERING This part replaces 37100-17C02.

37100-26D03

$194.77

16

BOLT

09139-06026

$2.50

17

SWITCH ASSY, STOP LAMP

37740-04A10

$23.32

18

SPRING

09443-06012

$3.16

19

BRACKET, SWITCH

43251-17C01

Unavailable

20

BOLT

09139-06027

$2.16

21

SWITCH ASSY,SID This part replaces 37840-17C01.

37840-32C02

Unavailable

22

SCREW This part replaces 02112-36165.

02112-3616A

$1.97

23

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

$45.20

24

HORN ASSY

38500-41C00

Unavailable

25

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

26

KEY, BLANK | OPT This part replaces 37146-03A80.

37146-26D10

$49.70
