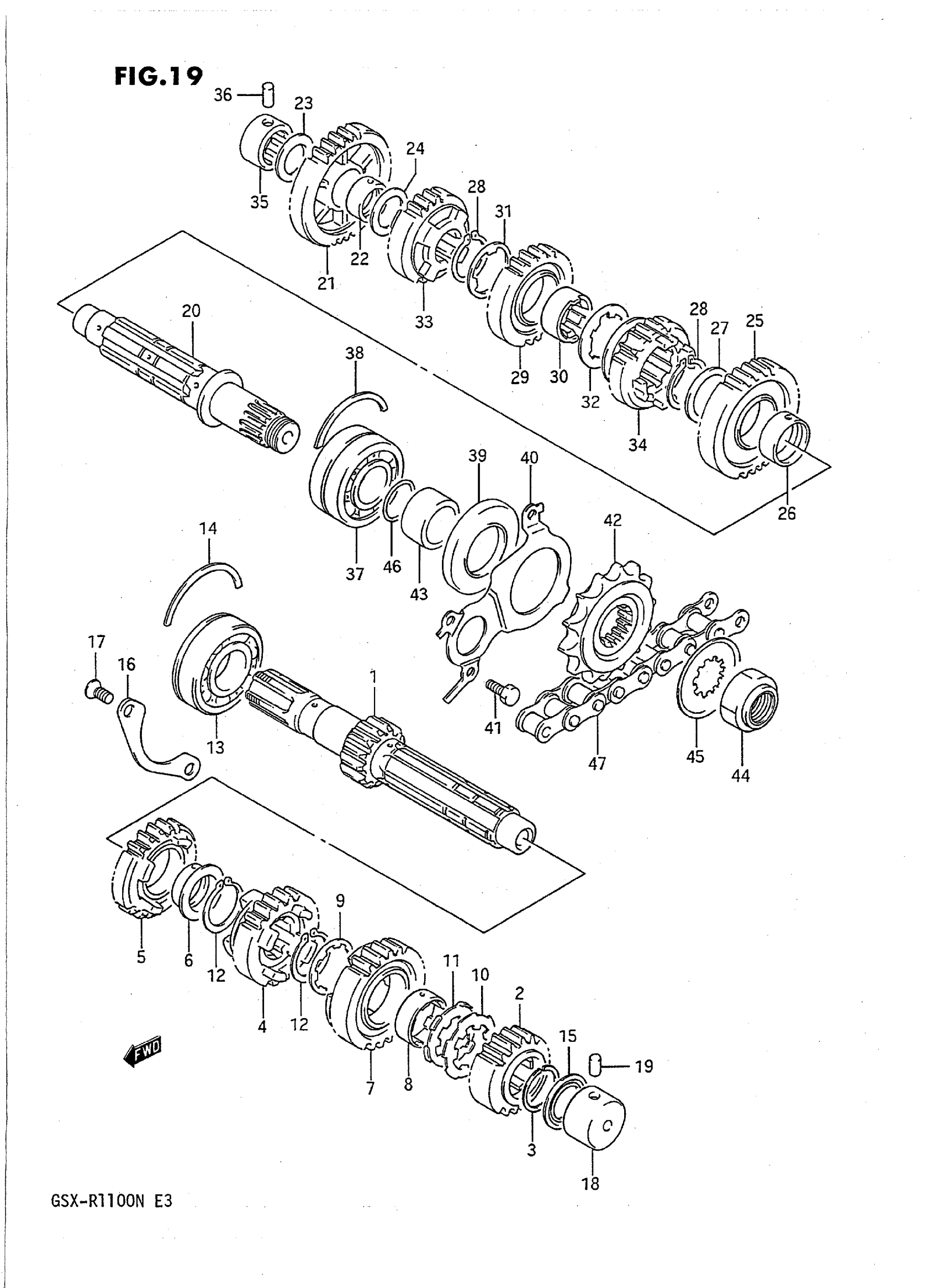

Suzuki GSX-R1100N (1992) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13)

24121-40C03

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-40C00

Unavailable

3

CIRCLIP

09380-25013

$4.53

4

GEAR,3RD DRIVE, This part replaces 24231-48B01.

24231-48B10

Unavailable

5

GEAR,4TH DRIVE, This part replaces 24241-48B00.

24241-48B50

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$26.85

7

GEAR,5TH DRIVE This part replaces 24251-48B02.

24251-48B30

Unavailable

8

BUSH

24252-48B00

Unavailable

9

WASHER,LOCK (25.1X33X1.0)

09167-25021

$4.18

10

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

11

WASHER, LOCK

09169-25001

$2.95

12

SNAP RING

09380-25003

$2.80

13

BEARING, LH This part replaces 09262-25051.

09262-25105

$53.00

14

C RING

09390-62011

Unavailable

15

OIL SEAL

09285-20006

$5.88

16

HOLDER, BEARING

24741-27A00

$11.37

17

SCREW

02122-06167

$1.45

18

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$59.98

19

PIN

04221-07129

$1.88

20

SHAFT, DRIVE This part replaces 24131-40C10.

24131-40C21

Unavailable

21

GEAR, 1ST DRIVEN (NT:31) This part replaces 24311-48B00.

24311-48B20

Unavailable

22

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

$31.78

23

WASHER, RH

08211-20341

$3.05

24

WASHER, LH

08211-22341

$4.18

25

GEAR, 2ND DRIVEN (NT:31) This part replaces 24321-48B02.

24321-48B10

$167.78

26

BUSH

09300-28002

$20.32

27

WASHER

08211-28361

$5.17

28

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.28

29

GEAR,3RD DRIVEN This part replaces 24331-48B03.

24331-48B30

Unavailable

30

BUSH, 3RD DRIVEN GEAR This part replaces 24332-48B00.

24332-48B01

Unavailable

31

WASHER, RH

09167-28001

$5.00

32

WASHER, LH (T:2)

09167-28008

Unavailable

33

GEAR,4TH DRIVEN This part replaces 24341-06B01.

24341-06B30

Unavailable

34

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-48B03.

24351-48B06

$166.82

35

BEARING, RH

09263-20040

$42.95

36

PIN (L:20)

04221-07209

$2.50

37

BEARING, LH

09267-25011

$169.90

38

C RING

09390-62011

Unavailable

39

OIL SEAL (34X62X6)

09283-34005

$11.37

40

PLATE

24751-40C01

$9.62

41

BOLT This part replaces 01107-06107.

01500-06107

$2.07

42

SPROCKET, ENGINE (NT:15)

27510-48B00

$110.62

43

SPACER (25X34X19) This part replaces 09180-25081.

09180-25100

$20.40

44

NUT

09159-20004

$14.15

45

WASHER, LOCK

09167-25019

$2.17

46

O RING (D:1,ID:24.5)

09280-25001

$1.56

47

CHAIN, DRIVE (RK532GSV2X118LE

27600-40C20-118

Unavailable
