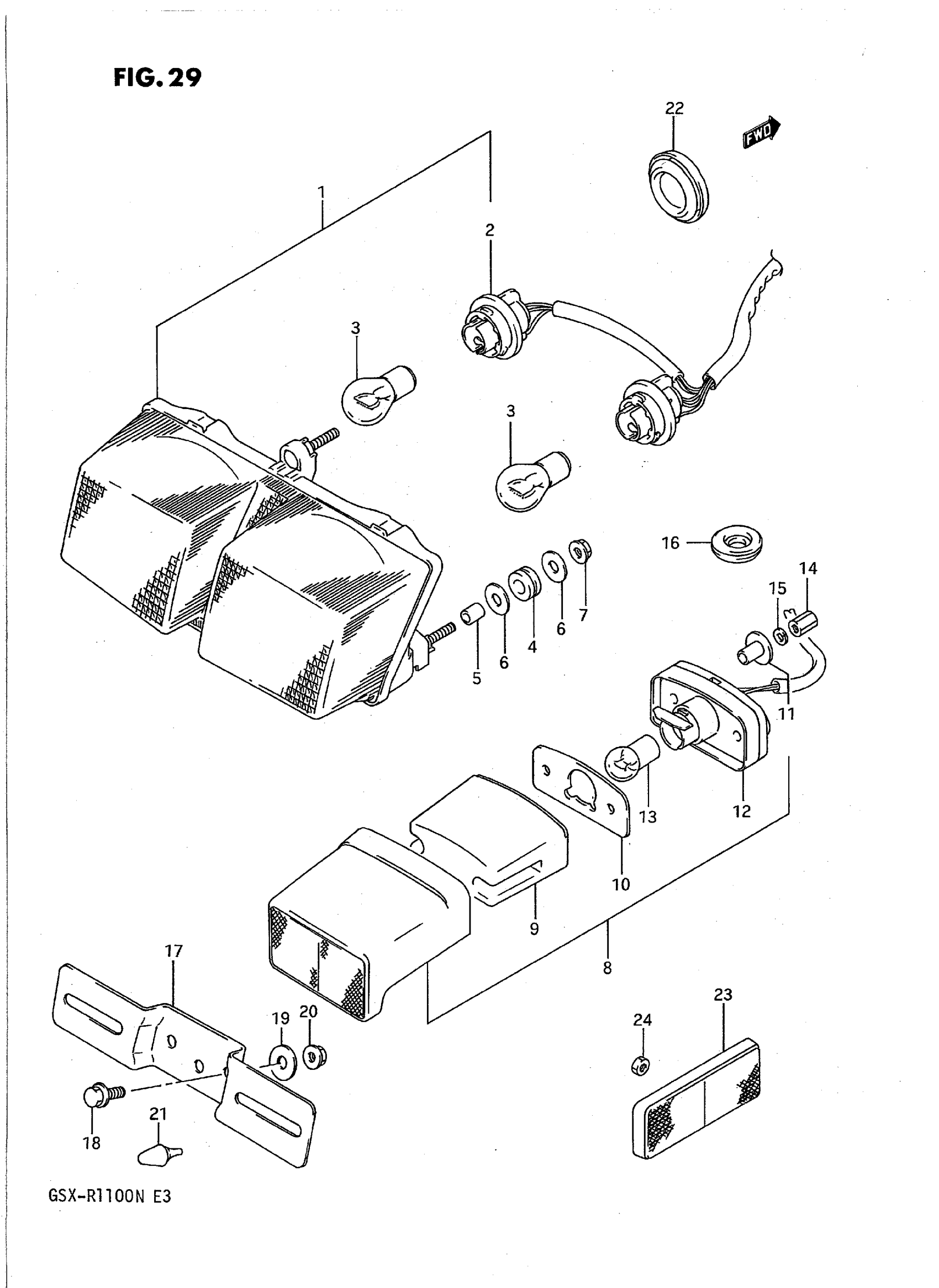

Suzuki GSX-R1100N (1992) TAIL LAMP - LICENSE LAMP Diagram

#

Description
Price

1

LAMP ASSY, RR C | Includes Item(s) 2 - 3 This part replaces 35710-41C30.

35710-41C30-999

Unavailable

2

SOCKET & CORD

35718-41C00

Unavailable

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

4

CUSHION This part replaces 09320-08048.

09320-08501

$3.23

5

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

6

WASHER

09160-06056

$1.72

7

NUT This part replaces 08316-26066.

08316-1006B

$2.50

8

LAMP ASSY, LICENSE | Includes Item(s) 9 - 13

35910-17C00

Unavailable

9

LENS, LICENSE LAMP

35912-38A30

$20.45

10

GASKET

35913-38A30

$3.37

11

SPACER

35766-17C00

Unavailable

12

HOUSING

35915-17C00

Unavailable

13

BULB (12V,5W)

09471-12058

$2.33

14

NUT

09140-04006

$4.86

15

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

16

GROMMET

09308-07013

$2.89

17

BRACKET, LICENSE PLATE

35927-00A10

$14.20

18

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

19

.WASHER (6.5X20X1.6) This part replaces 09160-06059.

09160-06088

$1.65

20

NUT This part replaces 08316-26066.

08316-1006B

$2.50

21

CUSHION

09321-06023

$2.50

22

CAP,OD:40 This part replaces 09250-30010.

72999-67H00

$5.10

23

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

Unavailable

24

.NUT This part replaces 08310-22055.

09140-05006

$2.19
