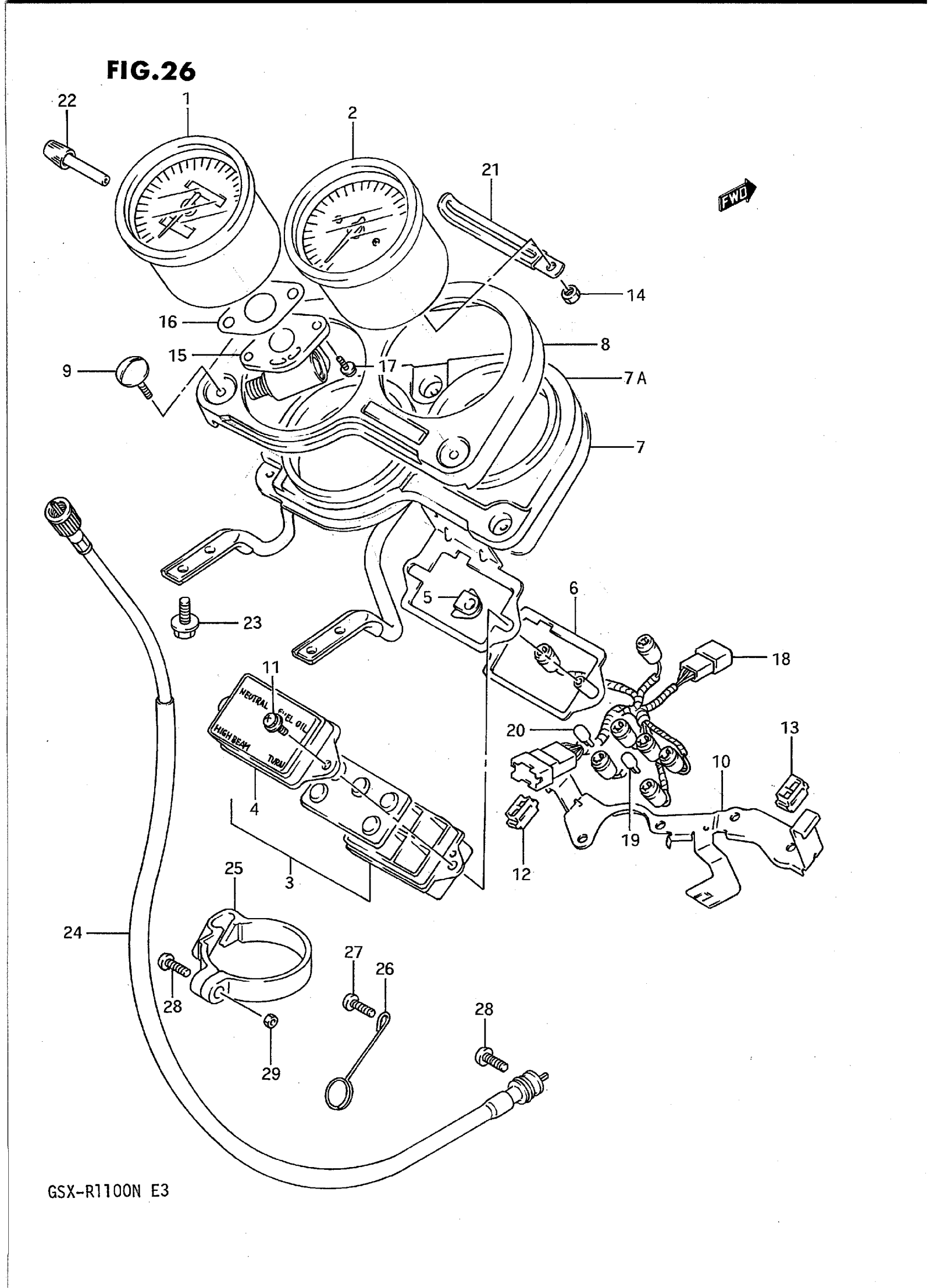

Suzuki GSX-R1100N (1992) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER This part replaces 34110-41C30.

34110-41C31

Unavailable

2

TACHOMETER This part replaces 34210-41C20.

34210-41C21

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 36380-40C30.

36380-40C20

Unavailable

4

CASE, UPPER

36381-40C20

Unavailable

5

DAMPER

34716-32C00

Unavailable

6

PLATE, PILOT BOX

34718-32C00

Unavailable

7

PLATE, SETTING

34950-41C20

Unavailable

7A

CUSHION

34191-41C20

Unavailable

8

PANEL, METER

34960-41C20

Unavailable

9

BOLT, SETTING

34186-41C20

Unavailable

10

BRACKET

34111-41C20

Unavailable

11

SCREW This part replaces 02112-74085.

02112-7408B

$2.34

12

DAMPER, LH

34189-17C00

Unavailable

13

CUSHION This part replaces 34189-04A30.

34189-27A00

$6.17

14

NUT This part replaces 08310-11045.

08310-0004A

$2.30

15

BOX, METER GEAR

34131-48B10

Unavailable

16

GASKET, GEAR BOX

34132-17C00

Unavailable

17

SCREW This part replaces 02112-34128.

02112-3412B

$2.30

18

SOCKET

34170-41C20

Unavailable

19

BULB (12V,3W)

09471-12103

$3.83

20

.BULB (12V1.7W)

09471-12108

$3.42

21

CLAMP (L:60) This part replaces 09404-04402.

09404-06429

$1.83

22

KNOB

34124-49400

$4.43

23

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

24

CABLE ASSY,SPEE This part replaces 34910-41C00.

34910-10D32

Unavailable

25

GUIDE, SPEEDOMETER CABLE NO.2

34938-40C60

Unavailable

26

GUIDE, SPEEDOMETER CABLE NO.3

34939-17D00

Unavailable

27

SCREW

02142-06108

$2.45

28

SCREW

02112-05164

$2.63

29

NUT This part replaces 08310-11057.

08310-00057

$1.84
