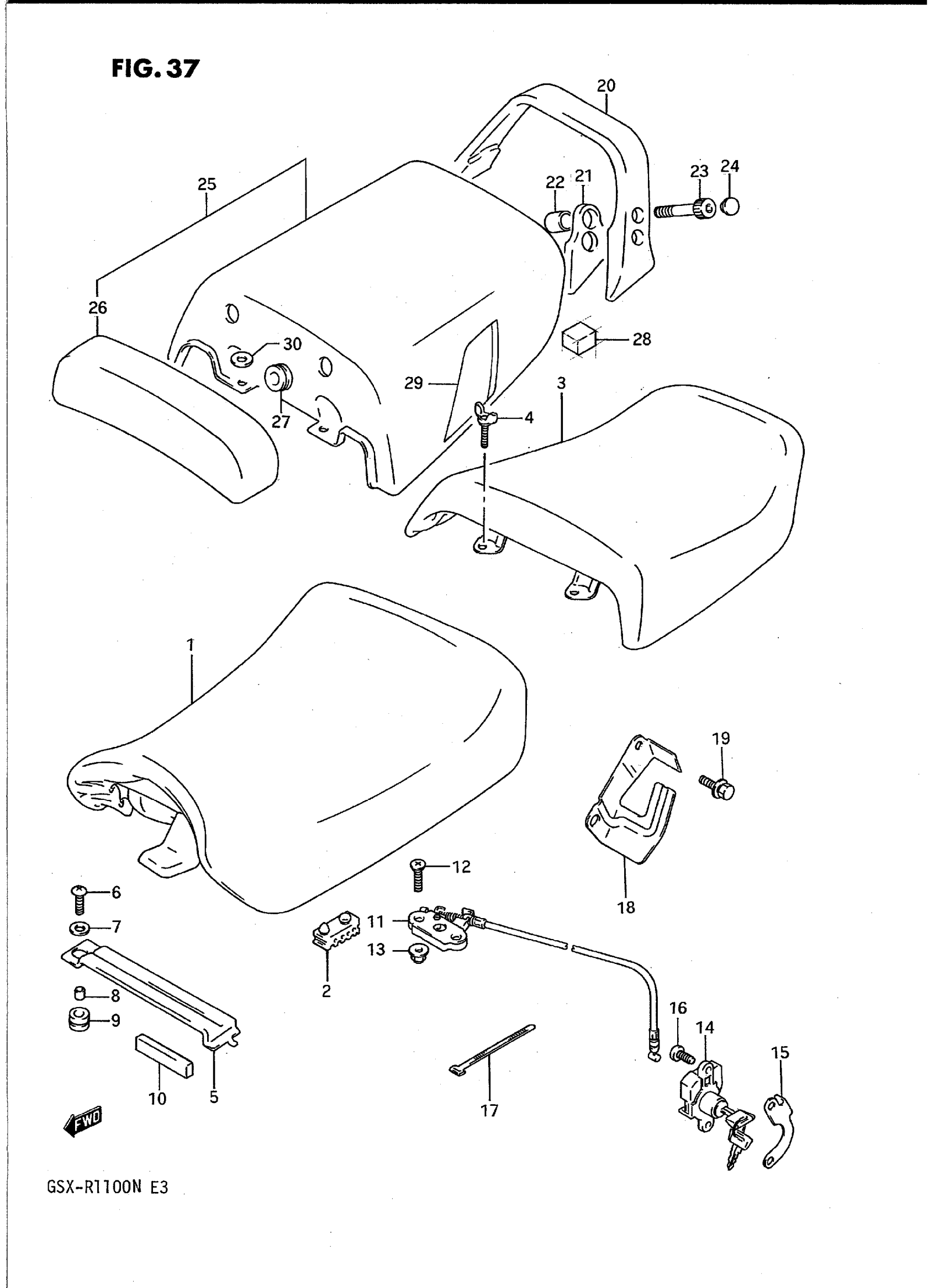

Suzuki GSX-R1100N (1992) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2

45100-41C00-58R

Unavailable

2

CUSHION

45149-31300

$3.56

3

NO DESCRIPTION AVAILABLE This part replaces 45300-41C00-58R.

45300-41C01-58R

Unavailable

4

BOLT, PILLION SEAT

09139-06056

$3.23

5

PLATE,SEAT SUPP This part replaces 45271-40C00.

45271-40C0V

Unavailable

6

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

7

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

8

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

9

CUSHION This part replaces 09320-08048.

09320-08501

$3.23

10

CUSHION, SEAT SUPPORT PLATE

45272-17C02

Unavailable

11

BRACKET, SEAT SUPPORT REAR

45220-17C00

Unavailable

12

SCREW This part replaces 02122-06255.

02122-0625A

$1.49

13

NUT

08319-31067

$2.03

14

CAP SET,SEAT This part replaces 45700-19840.

45700-19841

Unavailable

15

PLATE, SEAT LOCK

45123-17C00

Unavailable

16

BOLT

09139-06075

Unavailable

17

CLAMP, SEAT LOCK CABLE

09407-09402

$2.45

18

PLATE, SEAT LOCK CABLE

45290-41C01

Unavailable

18

PLATE, SEAT LOCK CABLE | CALIFORNIA ONLY

45288-40C01

Unavailable

19

BOLT This part replaces 01117-06165.

01550-0616A

$1.97

20

HANDLE, PILLION RIDER (BLACK) | MODEL M This part replaces 46211-41C00-0NG.

46211-41C00-019

Unavailable

20

HANDLE, PILLION RIDER (WHITE) | MODEL N

46211-41C00-0JW

Unavailable

20

HANDLE, PILLION RIDER (BLACK)

46211-41C00-019

Unavailable

21

CUSHION,PILLION This part replaces 46238-41C00.

46238-41C01

Unavailable

22

SPACER This part replaces 09180-08163.

09180-08178

$8.83

23

BOLT This part replaces 07110-08655.

07130-0865B

$5.27

24

CAP

09250-06004

$1.49

25

NO DESCRIPTION AVAILABLE | OPT,MODEL M This part replaces 45500-41810-0NG.

45500-41811-0NG

Unavailable

25

BOX SET, SEAT TAIL (RED) | OPT,MODEL M

45500-41810-28V

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,MODEL N This part replaces 45500-41820-0JW.

45500-41821-0JW

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,MODEL N This part replaces 45500-41820-33J.

45500-41821-33J

Unavailable

25

BOX SET, SEAT TAIL (BLACK) | OPT,MODEL N; Includes Item(s) 26 - 29

45500-41820-36X

Unavailable

26

BACKREST, SEAT | OPT

46220-41C00-58R

Unavailable

27

CUSHION | OPT

09320-12031

$2.34

28

CUSHION | OPT This part replaces 63411-35B00.

51827-01A00

$6.17

29

TAPE SET, SEAT TAIL BOX | OPT,MODEL N FOR 0JW

68160-41C00-M13

Unavailable

29

TAPE SET, SEAT TAIL BOX | OPT,MODEL N FOR 33J

68160-41C00-M14

Unavailable

29

TAPE SET, SEAT TAIL BOX | OPT,MODEL N FOR 36X

68160-41C00-M15

Unavailable

30

WASHER | OPT This part replaces 09160-06006.

09160-06084

$1.78
