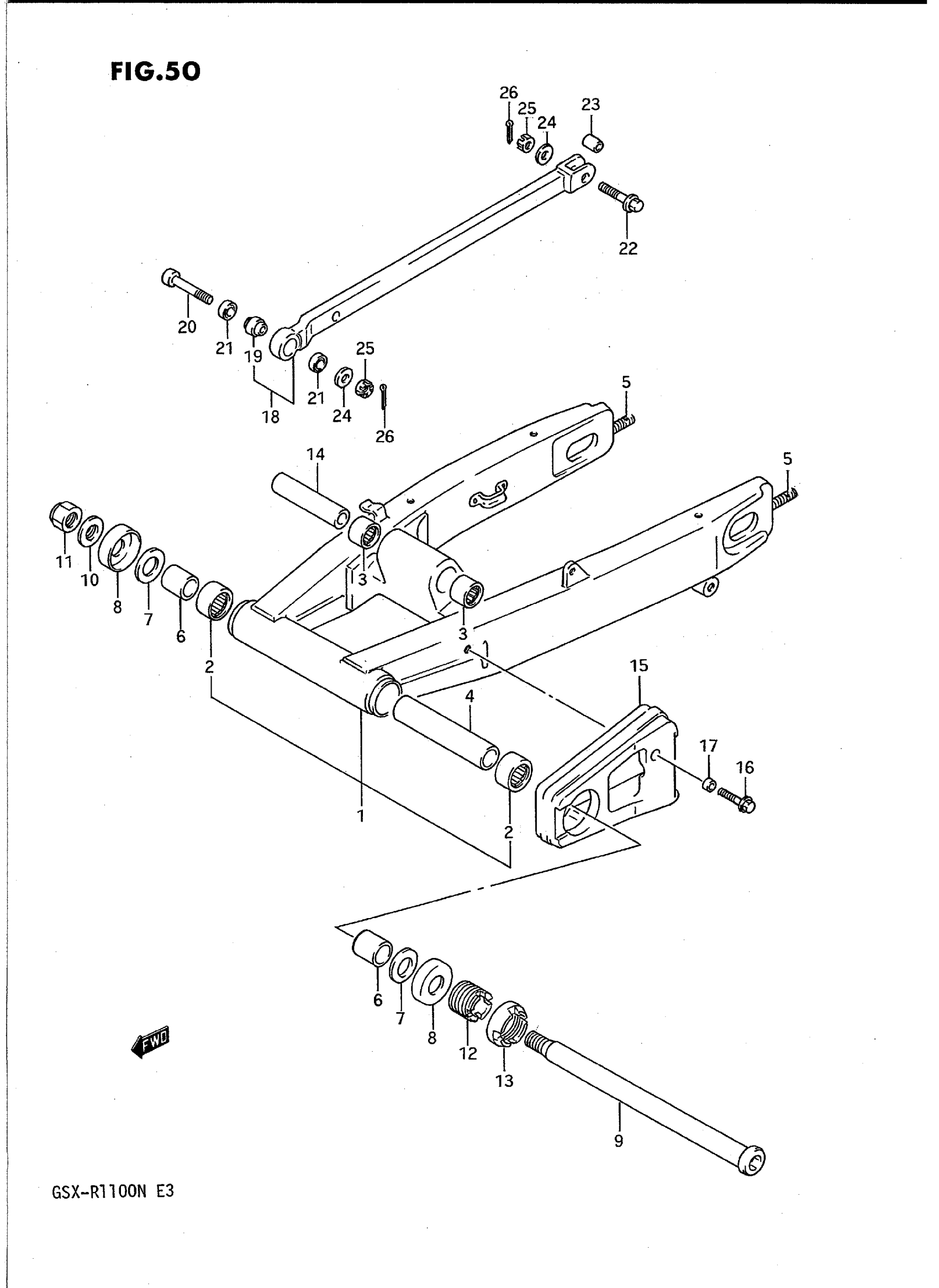

Suzuki GSX-R1100N (1992) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 5

61000-40C10

Unavailable

2

BEARING, PIVOT

09263-25024

$25.92

3

BEARING

09263-20071

$25.92

4

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$28.42

5

BOLT,STUD This part replaces 61431-40C00.

09108-08261

$6.47

6

SPACER, BEARING

61251-17C00

$43.37

7

WASHER, THRUST (T:1)

08211-20381

$4.10

7

WASHER, THRUST (T:1.5)

08211-20382

Unavailable

8

DUST SEAL,RR SW This part replaces 61262-17C00.

61262-17C01

$9.57

9

SHAFT, PIVOT

61211-40C00

Unavailable

10

WASHER This part replaces 08322-11188.

08322-0118B

$2.70

11

NUT

09159-18007

$19.68

12

BOLT, PIVOT

61213-40C30

Unavailable

13

NUT, PIVOT BOLT This part replaces 61214-40C30.

61214-40C31

$56.90

14

SPACER, LEVER

62317-40C10

Unavailable

15

BUFFER, CHAIN TOUCH DEFENCE

61273-40C00

Unavailable

16

BOLT This part replaces 09116-06111.

09116-06152

$2.36

17

SPACER (6.5X10X7) This part replaces 09180-06002.

09180-06283

$1.91

18

NO DESCRIPTION AVAILABLE | Includes Item(s) 19 This part replaces 64300-40820.

64300-40821

Unavailable

19

BEARING This part replaces 64352-40411.

64352-40401

Unavailable

20

BOLT, FRONT

09106-08048

$5.73

21

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

22

BOLT, REAR

09103-08160

Unavailable

23

SPACER, REAR

64336-20A00

Unavailable

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

NUT This part replaces 08314-41088.

08314-4008B

$3.03

26

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
