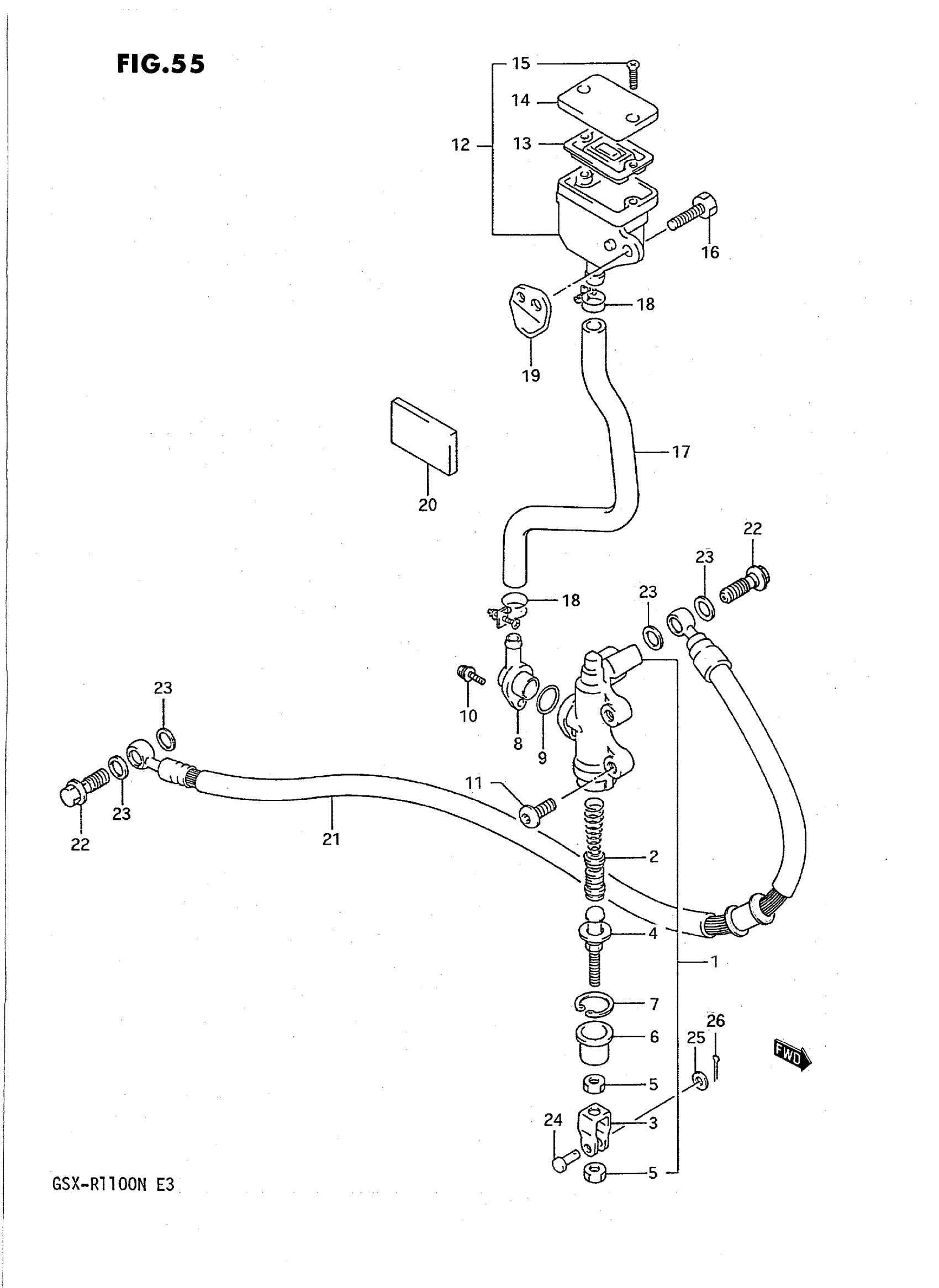

Suzuki GSX-R1100N (1992) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10

69600-17C01

$307.20

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$49.42

3

YOKE

69692-27A30

$13.81

4

ROD, PUSH

69670-48B00

$26.97

5

NUT

69693-05A00

$1.96

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-05A00

$5.56

9

O RING

69686-34200

$2.93

10

.SCREW This part replaces 02112-74125.

02112-7412A

$2.12

11

BOLT (8X22)

09139-08009

Unavailable

12

TANK ASSY, REAR RESERVOIR | Includes Item(s) 13 - 15 This part replaces 69740-38B20.

69740-38B21

$103.83

13

DIAPHRAGM

59667-04700

$9.78

14

CAP

69669-24A01

$15.10

15

SCREW

69689-04A00

$1.78

16

BOLT This part replaces 01107-06257.

01500-06257

$1.97

17

HOSE, RESERVOIR

69731-17C10

Unavailable

18

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

19

BRACKET, TANK REAR

69751-17C00

Unavailable

20

CUSHION This part replaces 69732-17C01.

47451-38A01

$4.43

21

HOSE, REAR BRAKE

69480-41C10

Unavailable

22

BOLT

09360-10017

$3.42

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

25

WASHER This part replaces 08322-21067.

08322-01067

$2.13

26

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
