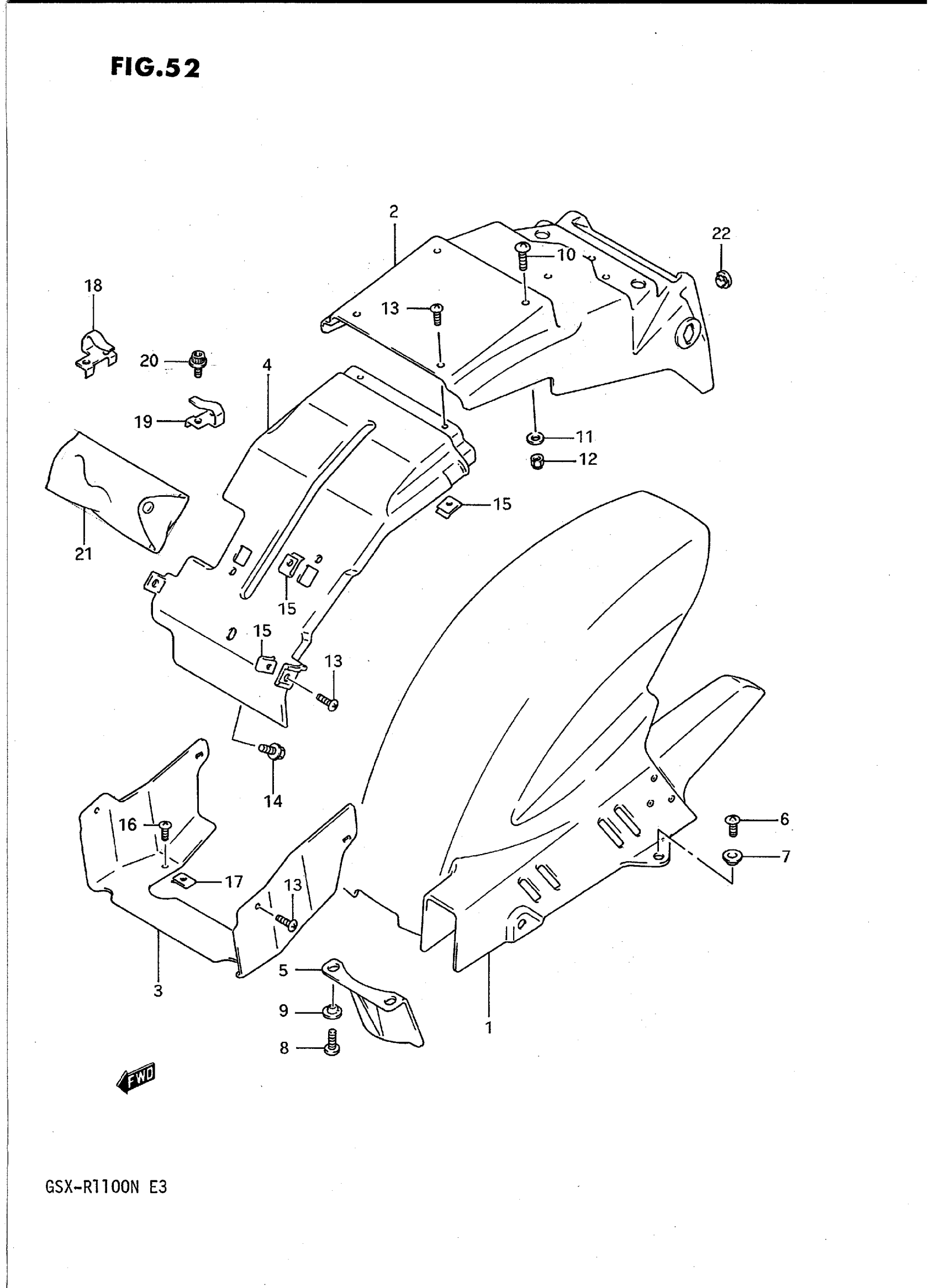

Suzuki GSX-R1100N (1992) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR LOWER

63110-40C00

Unavailable

2

FENDER, REAR UPPER

63112-40C00

Unavailable

3

FENDER, REAR UPPER FRONT This part replaces 63113-40C00.

63113-40C10

Unavailable

3

FENDER, REAR UPPER FRONT | CALIFORNIA ONLY

63113-40C10

Unavailable

4

FENDER, REAR UPPER FRONT

63114-17C00

Unavailable

5

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

Unavailable

6

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

7

WASHER

09169-06060

$2.08

8

SCREW, MUD GUARD

02142-06167

$1.49

9

WASHER This part replaces 09169-06025.

09169-06010

$2.60

10

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

11

WASHER This part replaces 09160-06006.

09160-06084

$1.78

12

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

13

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

14

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

15

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

16

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

17

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

18

HOLDER, HELMET RH

95721-18D00

Unavailable

19

HOLDER, HELMET LH

95731-18D00

Unavailable

20

BOLT, OIL GALLERY | MODEL M This part replaces 07120-06125.

07120-0612B

$3.04

20

BOLT | MODEL N This part replaces 01107-06125.

01500-0612A

$1.78

21

TOOL ASSY This part replaces 09800-20032.

09800-21017

$76.62

22

CAP(OD:16) This part replaces 09250-08007.

09250-08020

$1.67
