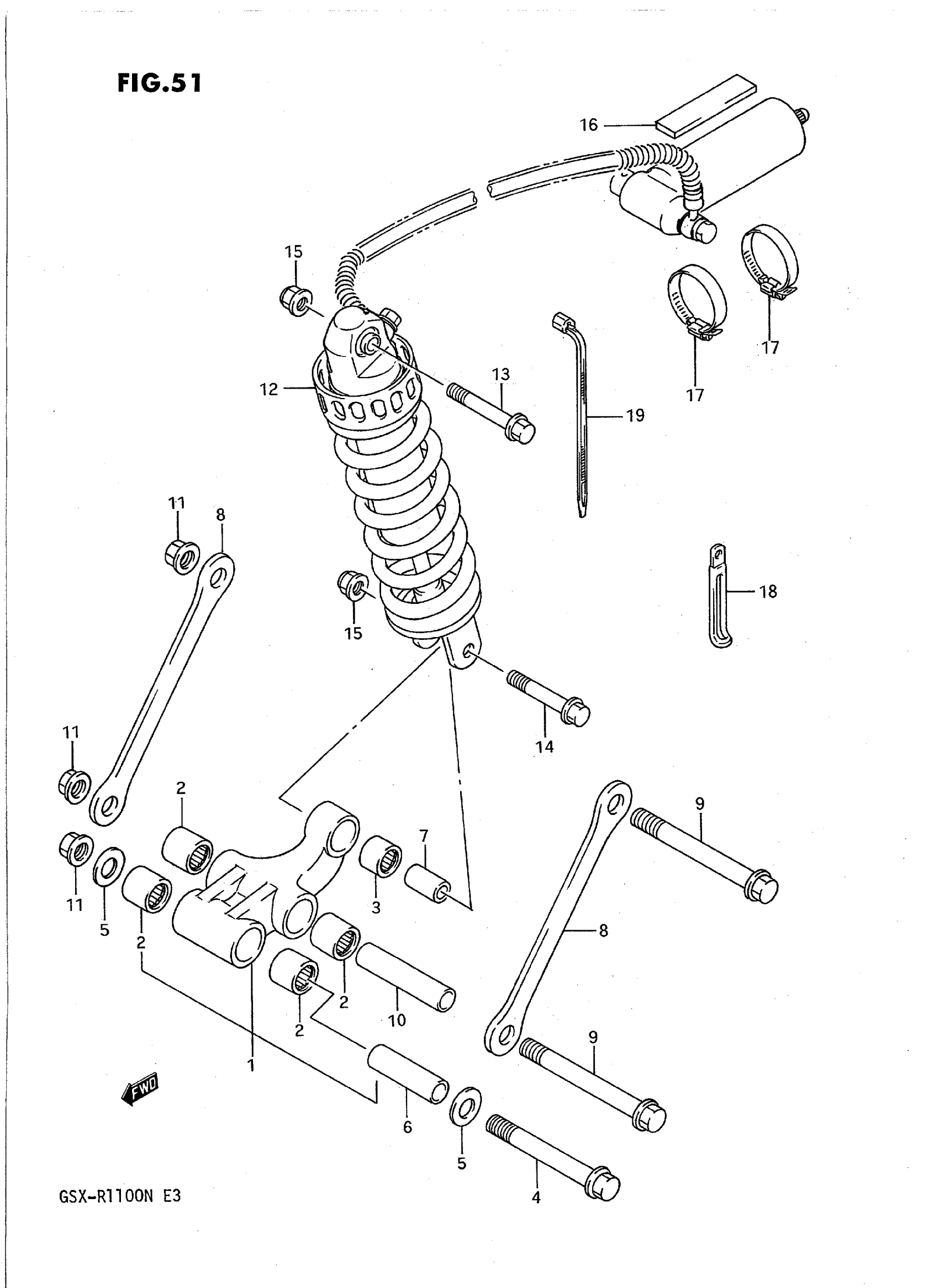

Suzuki GSX-R1100N (1992) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-40830

Unavailable

2

BEARING

09263-20071

$25.92

3

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

4

SHAFT, FRONT

62621-17C00

$23.07

5

WASHER

08211-14323

$3.85

6

SPACER, FRONT

62317-17C00

Unavailable

7

SPACER, REAR

62684-40A10

$12.15

8

NO DESCRIPTION AVAILABLE This part replaces 62641-40C10.

62641-40C11

Unavailable

9

SHAFT, RED

62658-40C10

Unavailable

10

SPACER, RED

62317-40C10

Unavailable

11

NUT This part replaces 08319-31148.

08319-3114A

$9.66

12

ABSORBER ASSY, REAR SHOCK

62100-41C10

Unavailable

13

BOLT, UPPER

62311-08300

Unavailable

14

BOLT, LOWER

09103-10050

Unavailable

15

NUT

08319-31107

$2.73

16

CUSHION, TANK

62331-07D00

Unavailable

17

CLAMP This part replaces 09402-43501.

09402-50511

$11.73

18

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

19

CLAMP

09407-18402

$2.19
