1992 Suzuki GSX-R1100N Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1992 Suzuki GSX-R1100N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

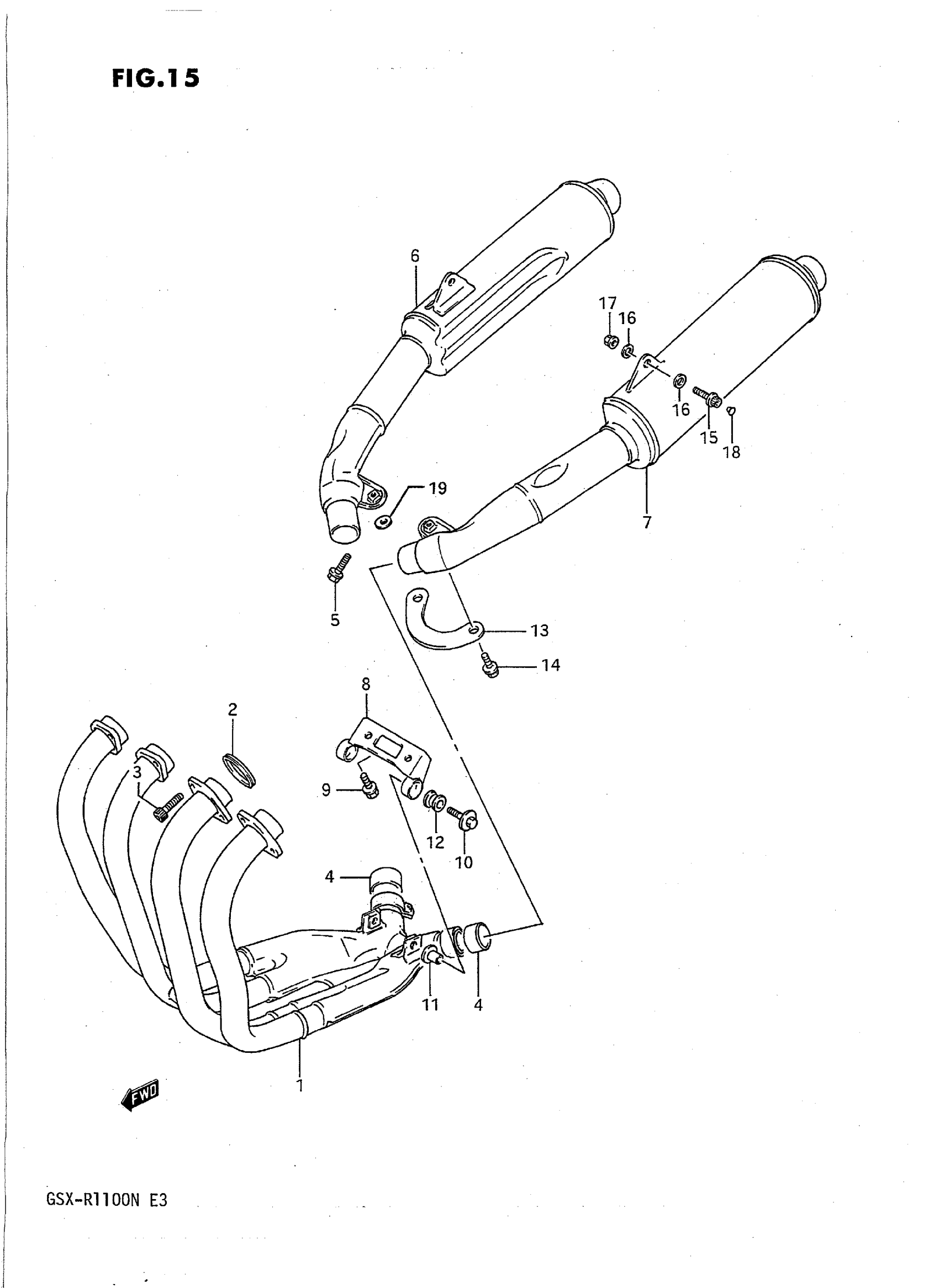

1992 Suzuki GSX-R1100N Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST ASSY

14100-40C04-H01

1
Out of stock

2

GASKET, EXHAUST PIPE

14181-40C00

4

$7.20

In stock

3

8

$3.26

In stock

4

CONNECTOR, MUFFLER

14771-44B00

2

$27.57

In stock

5

2

$4.35

In stock

6

MUFFLER, RH

14310-40C71-H01

1
Out of stock

7

MUFFLER, LH

14340-40C72-H01

1
Out of stock

8

DAMPER, MUFFLER SUPPORT

14770-40C10

1
Out of stock

9

2

$4.53

In stock

10

BOLT (8X35)

09118-08080

2
Out of stock

11

SPACER

09180-08157

2

$7.75

In stock

12

CUSHION

09320-12057

2
Out of stock

13

PLATE, MUFFLER JOINT

14761-40C01

1
Out of stock

14

BOLT (8X16) This part replaces 01127-08166.

01550-0816A

2
Out of stock

15

1

$5.83

In stock

15

BOLT | LH

07120-10407

1

$6.38

In stock

17

NUT | RH This part replaces 08316-16105.

08316-1010B

1
Out of stock

17

NUT | LH This part replaces 08319-31105.

08319-3110A

1
Out of stock

18

CAP

09250-08012

2

$2.35

In stock

19

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

1
Out of stock
