1992 Suzuki GSX-R1100N Crankcase Diagram

← All diagrams

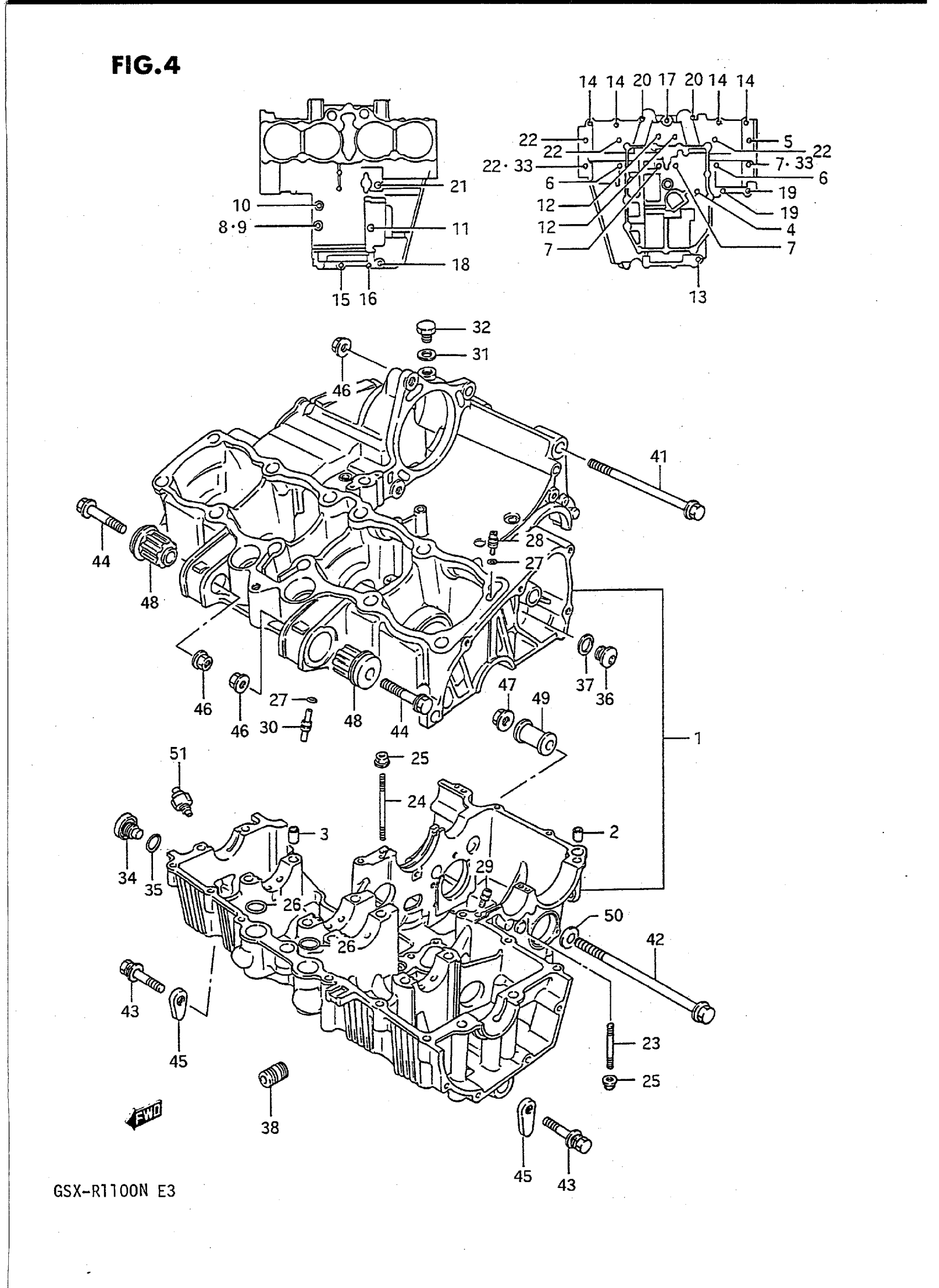

Find the part on the Crankcase diagram for your 1992 Suzuki GSX-R1100N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki GSX-R1100N Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET | MODEL M

11301-40841

1
Out of stock

1

CRANKCASE SET | MODEL N; Includes Item(s) 2 - 40

11301-40850

1
Out of stock

2

PIN

09206-13004

2
Out of stock

3

2

$6.85

In stock

4

BOLT (6X105)

09103-06067

1

$3.00

In stock

5

BOLT (8X105)

09103-08097

1
Out of stock

6

BOLT (8X125)

09103-08182

2

$6.22

In stock

7

BOLT (8X115)

09103-08098

3

$4.20

In stock

8

BOLT This part replaces 09106-06072.

07120-0655B

1
Out of stock

9

GASKET

09168-06018

1
Out of stock

10

1

$3.35

In stock

11

1

$3.74

In stock

12

2

$5.73

In stock

13

1

$4.53

In stock

14

BOLT This part replaces 01517-06354.

01550-0635A

4
Out of stock

15

BOLT This part replaces 01517-06404.

01550-0640A

1
Out of stock

16

1

$2.84

In stock

17

BOLT This part replaces 01517-06505.

01550-0650A

1
Out of stock

18

1

$3.02

In stock

19

2

$3.58

In stock

20

2

$4.62

In stock

21

1

$3.80

In stock

22

BOLT (8X95)

09103-08105

4

$4.20

In stock

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

1
Out of stock

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

1
Out of stock

25

2

$2.18

In stock

26

O RING (D:2.5,ID:21)

09280-21008

2
Out of stock

27

O RING

09280-04004

6

$2.03

In stock

28

JET, OIL GALY HEAD

09493-14002

2
Out of stock

29

2

$18.33

In stock

30

JET, OIL GALY PISTON

09493-80008

4
Out of stock

31

GASKET, HOLE PLUG

09168-12002

1
Out of stock

32

PLUG, HOLE

09247-12103

1

$2.92

In stock

33

GASKET

09168-08021

2

$2.78

In stock

34

1

$10.83

In stock

35

O RING

09280-17002

1
Out of stock

36

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

37

GASKET

09168-14004

1

$1.96

In stock

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

1
Out of stock

40

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

1

$9.58

In stock

40

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

1

$12.82

In stock

41

1

$9.33

In stock

42

BOLT (12X178)

09100-12060

1
Out of stock

43

BOLT (10X60)

09118-10060

2
Out of stock

44

2

$3.86

In stock

45

NUT

09159-10020

2

$5.63

In stock

46

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

3
Out of stock

47

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

48

BUSH

11681-27A00

2
Out of stock

49

SPACER (L:27)

11611-40C01

1
Out of stock

50

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

51

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

1
Out of stock
