1992 Suzuki GSX-R1100N Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 1992 Suzuki GSX-R1100N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

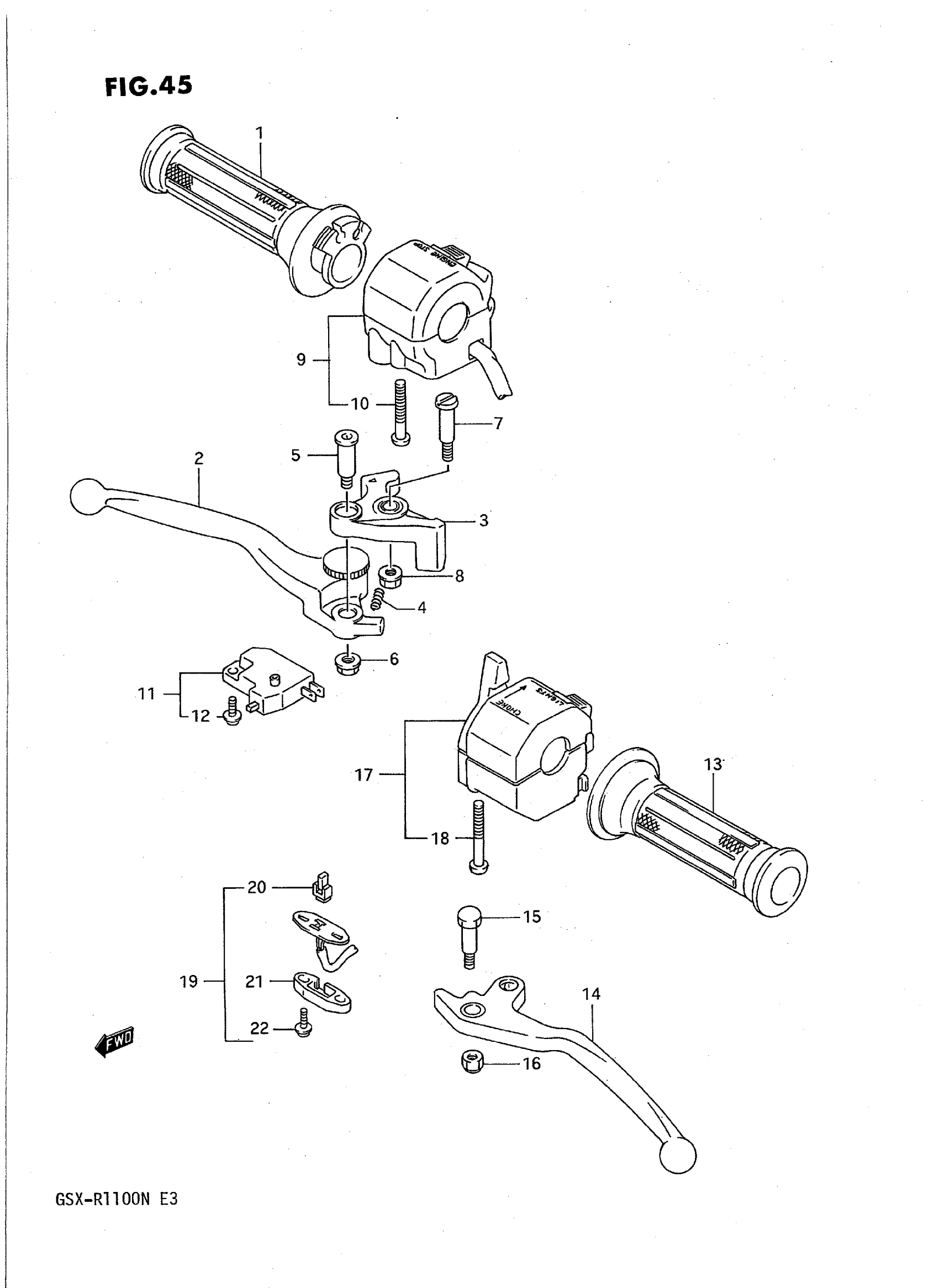

1992 Suzuki GSX-R1100N Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-49501

1

$34.87

In stock

2

LEVER, ADJUST

57420-32C00

1

$28.63

In stock

4

SPRING

57438-32C00

1

$6.40

In stock

5

1

$9.70

In stock

6

NUT This part replaces 08319-31065.

08319-3106A

1
Out of stock

7

BOLT, LEVER

57431-17C00

1

$7.09

In stock

8

NUT This part replaces 08316-16064.

08316-1006B

1
Out of stock

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 This part replaces 37200-41C30.

37200-41C31

1
Out of stock

10

2

$2.42

In stock

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C00.

57460-14J02

1
Out of stock

12

SCREW

57465-17C00

1
Out of stock

13

GRIP, LH

57211-49500

1

$14.31

In stock

14

1

$20.14

In stock

15

BOLT

57431-05A00

1
Out of stock

16

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

17

NO DESCRIPTION AVAILABLE | Includes Item(s) 18 This part replaces 37400-41C10.

37400-41C11

1
Out of stock

18

2

$2.42

In stock

19

SWITCH ASSY, CLUTCH | Includes Item(s) 20 - 22 This part replaces 57560-08A00.

57560-18D10

1
Out of stock

20

HOLDER

57465-18601

1

$4.33

In stock

21

COVER

57481-33010

1

$5.98

In stock

22

2

$2.43

In stock
