1992 Suzuki GSX-R1100N Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1992 Suzuki GSX-R1100N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

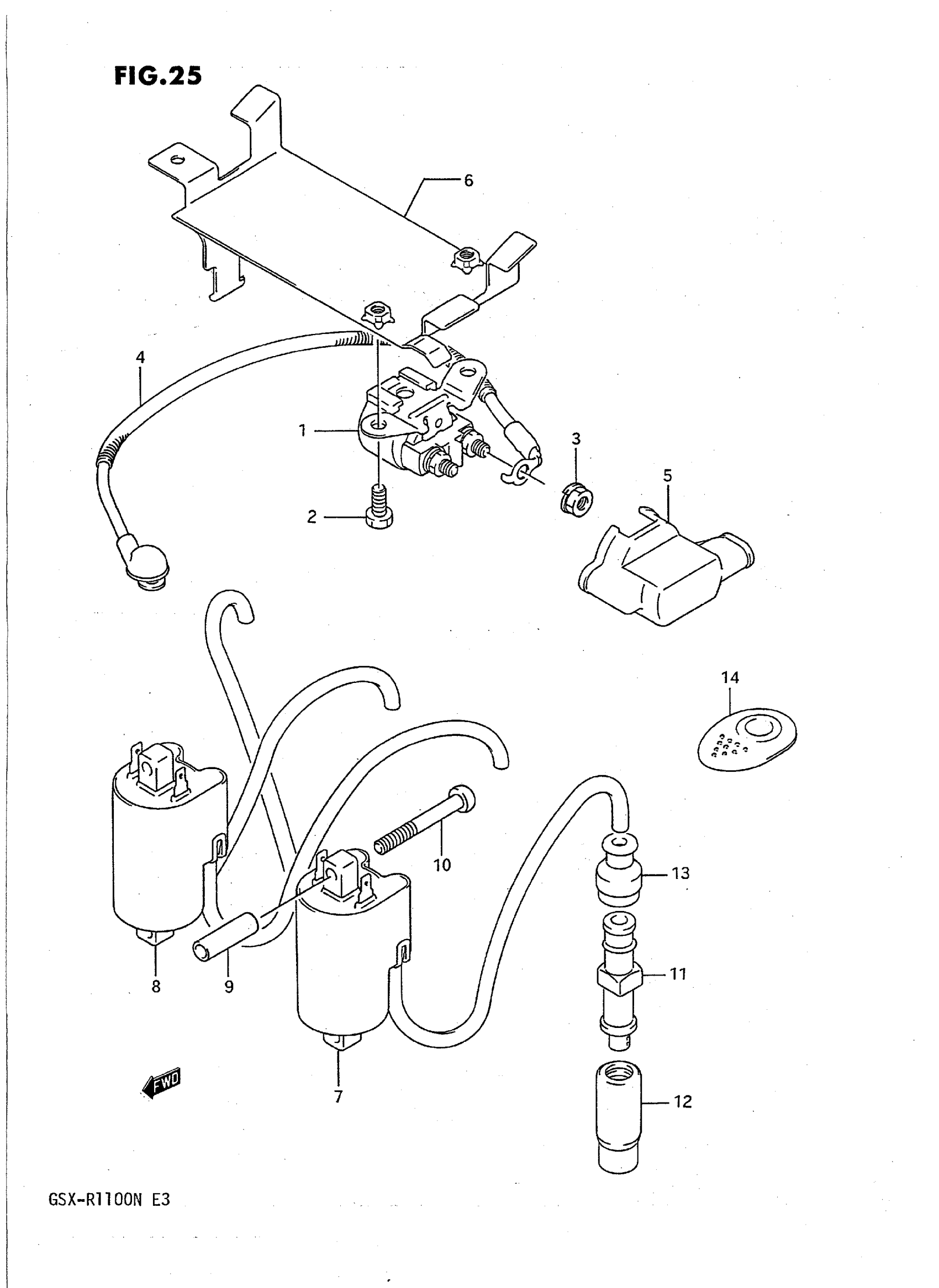

1992 Suzuki GSX-R1100N Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY, STARTING MOTOR

31800-49100

1
Out of stock

2

SCREW (L:8)

09128-06013

2
Out of stock

3

NUT This part replaces 08361-35066.

08361-3506A

2
Out of stock

4

LEAD WIRE, STARTING MOTOR

33810-41C00

1
Out of stock

5

CAP, TERMINAL

31861-10D10

1
Out of stock

6

HOLDER, ELECTRIC PARTS

47410-17C00

1
Out of stock

7

COIL ASSY, IGNI This part replaces 33410-40C00.

33410-17C01

1
Out of stock

8

COIL ASSY, IGNI This part replaces 33420-17C00.

33410-17C01

1
Out of stock

8

COIL ASSY, IGNI | CALIFORNIA ONLY This part replaces 33420-17C10.

33410-17C01

1
Out of stock

9

SPACER,6.5X10.5 | OTHER THAN CALIFORNIA This part replaces 09180-06146.

09180-06146-XC0

4
Out of stock

10

SCREW This part replaces 02112-06556.

02112-0655B

4
Out of stock

11

CAP, SPARK PLUG

33510-20C02

4
Out of stock

12

SEAL, PLUG

33541-20C00

4
Out of stock

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

4
Out of stock

14

COVER

33543-48B00

4
Out of stock
← Battery Handle Switch →
