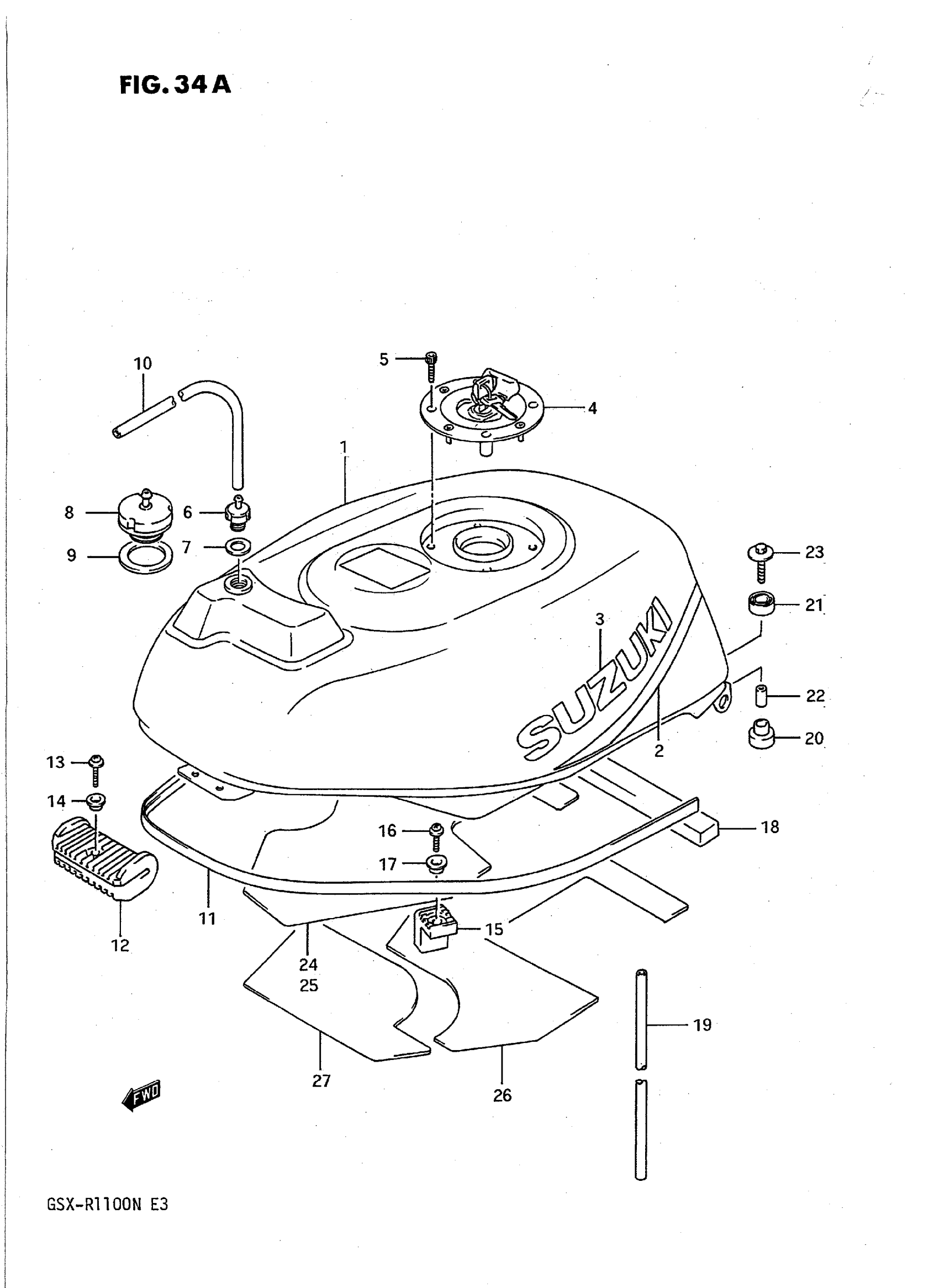

Suzuki GSX-R1100N (1992) FUEL TANK (MODEL N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-42C00-L99.

44100-42C61-L99

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-42C90-L99.

44100-42C91-L99

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-42C00-M01.

44100-42C61-M01

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-42C90-M01.

44100-42C91-M01

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-42C00-3WC.

44100-42C01-3WC

Unavailable

1

TANK ASSY, FUEL | CALIRORNIA ONLY; Includes Item(s) 2 - 3

44100-42C90-3WC

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR L99 This part replaces 68115-41C10-M07.

68115-41C11-M07

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR M01 This part replaces 68115-41C10-M08.

68115-41C11-M08

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR 3WC This part replaces 68115-41C10-M09.

68115-41C11-M09

Unavailable

3

EMBLEM, FUEL TA | FOR L99,M01 This part replaces 68111-12C00-0FP.

68111-12C30-0FP

Unavailable

3

EMBLEM | FOR 3WC This part replaces 68111-12C00-33J.

68111-12C30-33J

Unavailable

4

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

5

BOLT

09106-05017

$2.83

6

PLUG, BREATHER | OTHER THAN CALIFORNIA

44240-06B10

$38.33

7

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

8

VALVE, FUEL TANK BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

9

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

10

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

11

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

12

CUSHION, FRONT

44511-41C00

Unavailable

13

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

14

WASHER

09169-05012

$2.38

15

CUSHION, SIDE

44545-41C00

Unavailable

16

SCREW

02142-06207

$1.49

17

WASHER This part replaces 09169-06051.

09169-06055

$2.27

18

CUSHION, AIR SEAL This part replaces 44151-17C00.

13841-17E00

Unavailable

19

HOSE This part replaces 09352-50823-00A.

09352-50005-00B

$13.93

20

CUSHION, LOWER

09320-10038

$2.61

21

CUSHION, UPPER

09320-14017

$2.35

22

SPACER This part replaces 09180-06072.

09180-06271

$2.35

23

BOLT

09116-06097

$2.54

24

HEAT SHIELD, FUEL TANK NO.1 | OTHER THAN CALIFORNIA

44191-41C00

Unavailable

25

HEAT SHIELD, FUEL TANK NO.2 | OTHER THAN CALIFORNIA

44192-41C00

Unavailable

26

HEAT SHIELD, FUEL TANK NO.1 | CALIFORNIA ONLY

44191-40C00

Unavailable

27

HEAT SHIELD, FUEL TANK NO.2 | CALIFORNIA ONLY

44191-40C10

Unavailable
