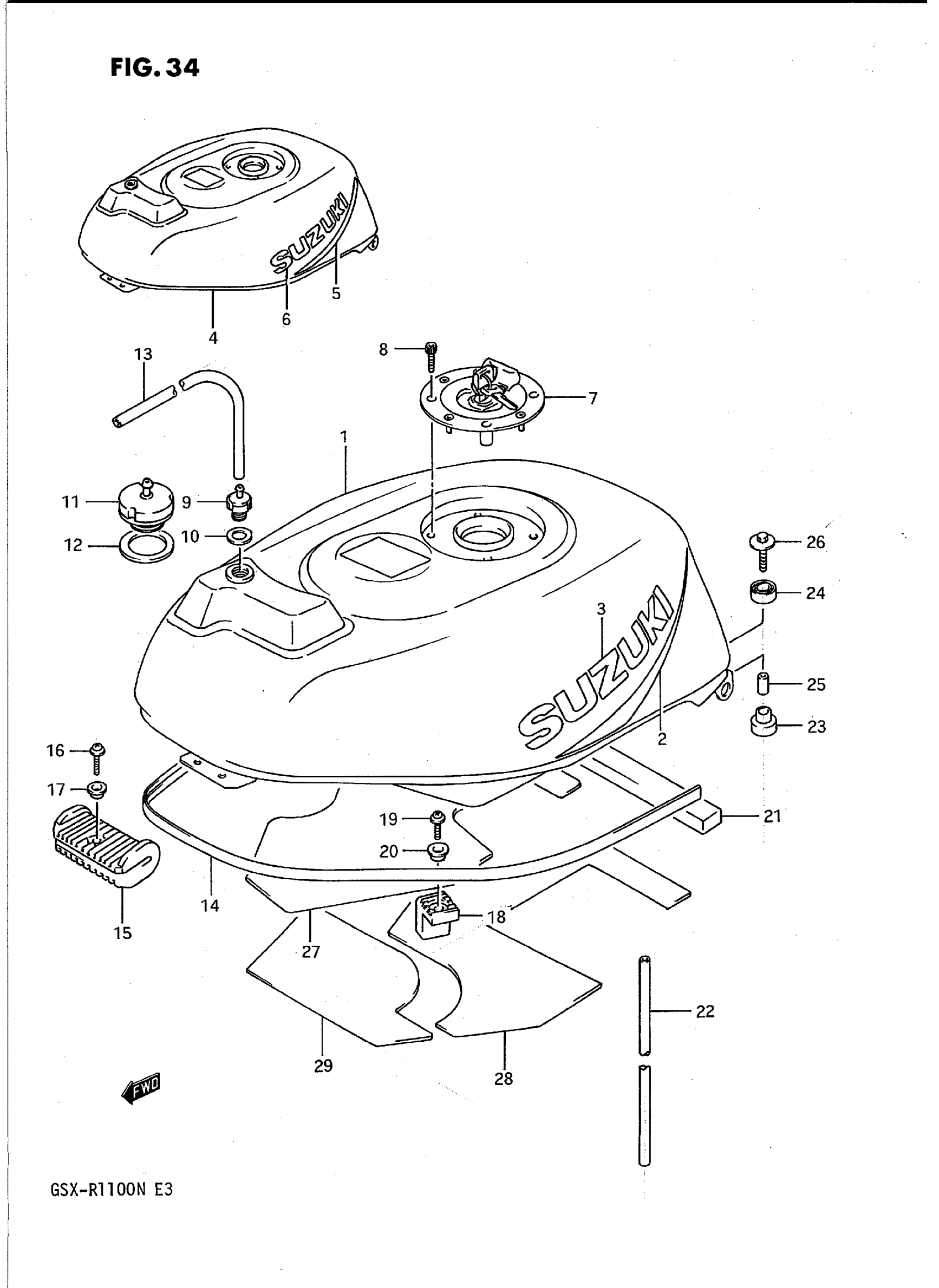

Suzuki GSX-R1100N (1992) FUEL TANK (MODEL M) Diagram

NO DESCRIPTION AVAILABLE This part replaces 44100-41C50-3SL.

44100-41C90-3SL

Unavailable

TANK ASSY, FUEL | CALIFORNIA ONLY; Includes Item(s) 2 - 3

44900-41C10-3SL

Unavailable

TAPE, FUEL TANK | FOR 3SL

68110-41C00-0NE

Unavailable

NO DESCRIPTION AVAILABLE | FOR 3SL This part replaces 68111-12C00-0NE.

68111-12C30-0NE

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 44100-41C60-3EE.

44900-41C00-3EE

Unavailable

TANK ASSY, FUEL | CALIRORNIA ONLY; Includes Item(s) 5 - 6

44900-41C20-3EE

Unavailable

NO DESCRIPTION AVAILABLE | FOR 3EE This part replaces 68115-41C00-28V.

68115-41C01-28V

Unavailable

EMBLEM, FUEL TA | FOR 3EE This part replaces 68111-12C00-0FP.

68111-12C30-0FP

Unavailable

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

BOLT

09106-05017

$2.83

PLUG, BREATHER | OTHER THAN CALIFORNIA

44240-06B10

$38.33

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

VALVE, FUEL TANK BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

CUSHION, FRONT

44511-41C00

Unavailable

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

WASHER

09169-05012

$2.38

CUSHION, SIDE

44545-41C00

Unavailable

SCREW

02142-06207

$1.49

WASHER This part replaces 09169-06051.

09169-06055

$2.27

CUSHION, AIR SEAL This part replaces 44151-17C00.

13841-17E00

Unavailable

HOSE This part replaces 09352-50823-00A.

09352-50005-00B

$13.93

CUSHION, LOWER

09320-10038

$2.61

CUSHION, UPPER

09320-14017

$2.35

SPACER This part replaces 09180-06072.

09180-06271

$2.35

BOLT

09116-06097

$2.54

HEAT SHIELD, FUEL TANK | OTHER THAN CALIFORNIA

44191-17C01

Unavailable

HEAT SHIELD, FUEL TANK NO.1 | CALIFORNIA ONLY

44191-40C00

Unavailable

HEAT SHIELD, FUEL TANK NO.1 | CALIFORNIA ONLY

44191-40C10

Unavailable
