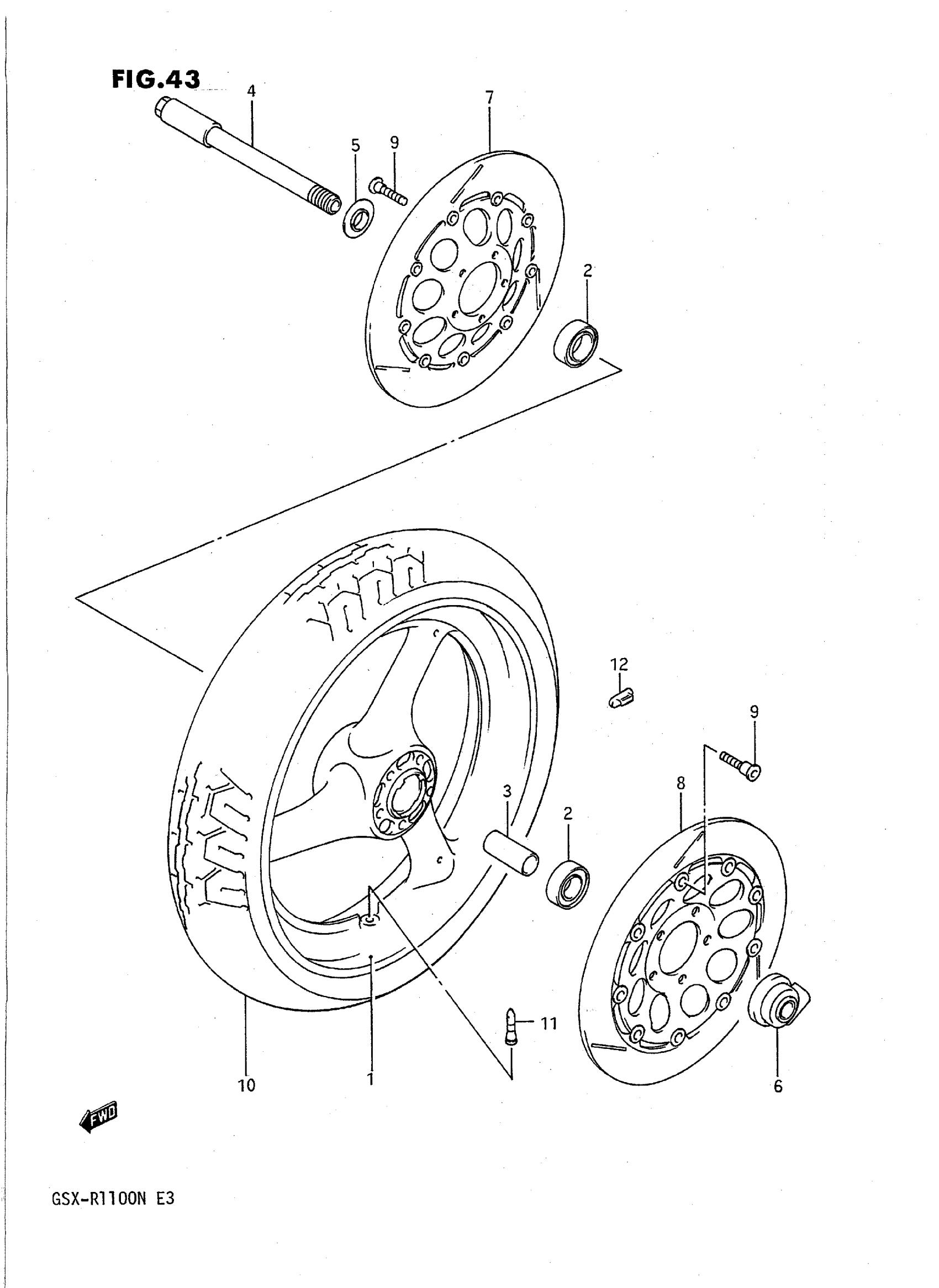

Suzuki GSX-R1100N (1992) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M,FOR 3SL This part replaces 54111-17C00-28W.

54111-17C10-28W

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N,FOR 3EE,M01 This part replaces 54111-17C00-12R.

54111-17C10-12R

Unavailable

1

WHEEL, FRONT (17XMT3.50) | MODEL N,FOR L99 This part replaces 54111-17C00-1MJ.

54111-17C10-1MJ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N,FOR 3WC This part replaces 54111-17C00-1DR.

54111-17C10-12R

Unavailable

2

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

3

SPACER

09180-20103

$26.25

4

AXLE, FRONT

54711-17D00

Unavailable

5

SPACER, BEARING RH

54740-17C00

$19.15

6

BOX ASSY, SPEEDOMETER GEAR This part replaces 54600-17C00.

54600-17C01

Unavailable

7

DISC,FRONT BRAK This part replaces 59210-40C02.

59210-40C03

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 59220-40C02.

59220-40C03

Unavailable

9

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

10

TIRE, FRONT This part replaces 55110-41C00.

55110-46E20

Unavailable

11

VALVE

43130-24A00

$8.85

12

BALANCER (10G)

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

12

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
