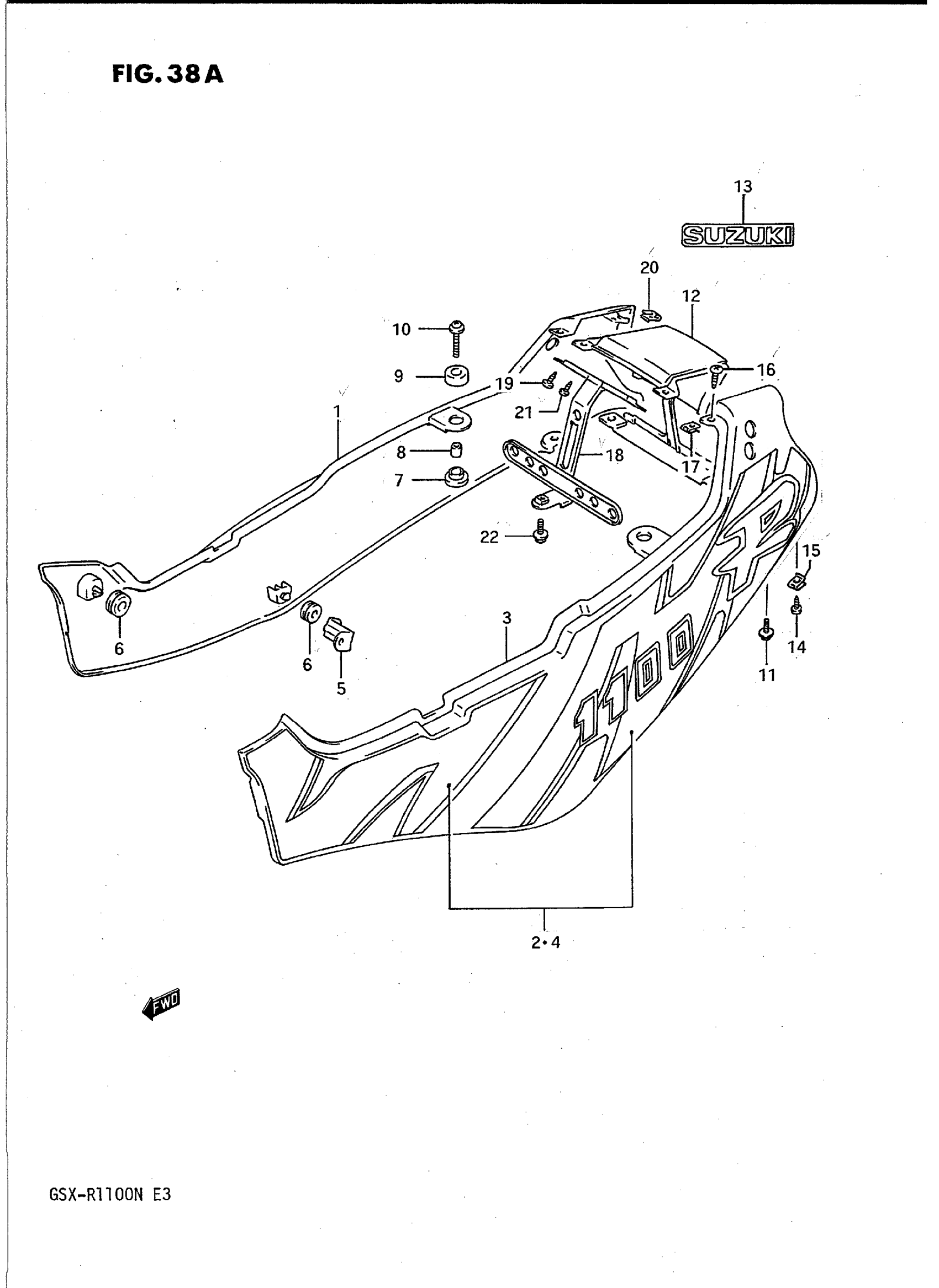

Suzuki GSX-R1100N (1992) FRAME COVER (MODEL N) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47110-41C30-0JW

Unavailable

1

COVER, FRAME RH (BLACK)

47110-41C30-33J

Unavailable

1

COVER, FRAME RH | Includes Item(s) 2 - 2

47110-41C30-36X

Unavailable

2

TAPE, FRAME COVER RH | FOR 0JW

68130-41C10-1MF

Unavailable

2

TAPE, FRAME COVER RH | FOR 33J

68130-41C10-1MG

Unavailable

2

TAPE, FRAME COVER RH | FOR 36X

68130-41C10-1MA

Unavailable

3

COVER, FRAME LH (WHITE)

47210-41C30-0JW

Unavailable

3

COVER, FRAME LH (BLACK) | FOR 3SL

47210-41C30-33J

Unavailable

3

COVER, FRAME LH (BLACK) | Includes Item(s) 4 - 4

47210-41C30-36X

Unavailable

4

TAPE, FRAME COVER LH | FOR 0JW

68140-41C10-1MF

Unavailable

4

TAPE, FRAME COVER LH | FOR 33JFOR 36X

68140-41C10-1MA

Unavailable

5

BRACKET,FRAME C This part replaces 43815-41C00.

43815-41C0V

Unavailable

6

CUSHION

09320-08018

$3.04

7

CUSHION, LOWER

45326-17C00

$5.09

8

SPACER This part replaces 09180-06143.

09180-06286

$2.50

9

CUSHION, UPPER

45149-04A00

$3.59

10

SCREW

09136-06083

$2.19

11

SCREW This part replaces 09136-06062.

09136-06017

$2.59

12

COVER, FRAME CENTER (WHITE) | FOR 0JW

47310-41C20-0YX

Unavailable

12

COVER, FRAME CENTER (BLACK) | FOR 33J

47310-41C20-33J

Unavailable

12

COVER, FRAME CENTER (BLACK) | FOR 36X; Includes Item(s) 13

47310-41C20-36X

Unavailable

13

EMBLEM,"SUZUKI" This part replaces 68166-31300-13L.

68166-31310-13L

$4.52

14

SCREW This part replaces 03141-14125.

03141-1412B

$2.83

15

NUT

09148-04024

$2.23

16

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

17

NUT

09148-05019

$1.86

18

BRACKET, REAR

47410-41C00

Unavailable

19

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

20

NUT

09148-05038

$1.97

21

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49

22

BOLT This part replaces 09116-06064.

09116-06109

$3.00
