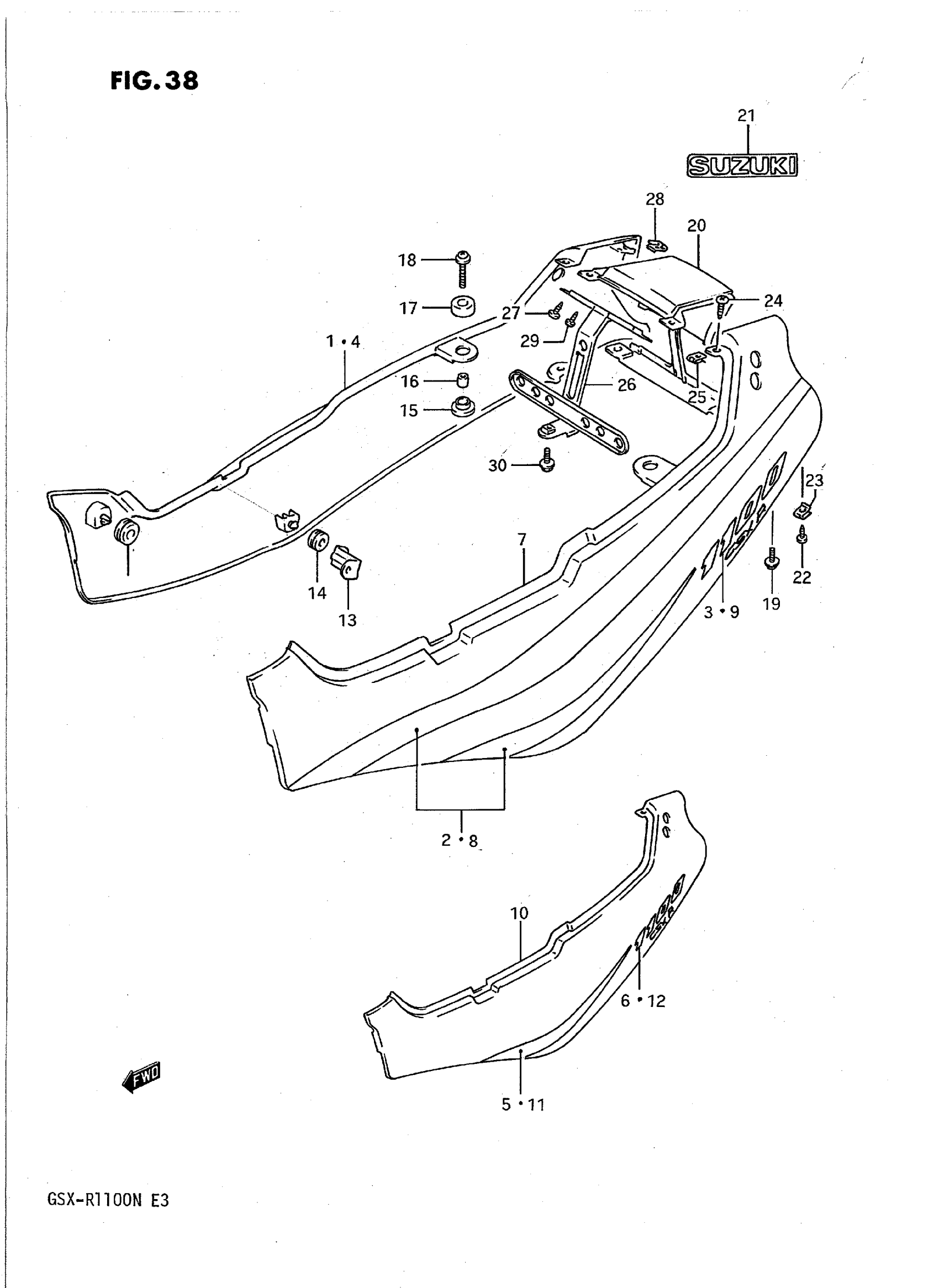

Suzuki GSX-R1100N (1992) FRAME COVER (MODEL M) Diagram

#

Description
Price

1

COVER, FRAME RH | Includes Item(s) 2 - 3

47110-41C00-3SL

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR 3SL This part replaces 68130-41C00-3SR.

68130-41C01-3SR

Unavailable

3

EMBLEM, RH | FOR 3SL

68131-41C00-E95

Unavailable

4

COVER, FRAME RH | Includes Item(s) 5 - 6

47110-41C10-3EE

Unavailable

5

NO DESCRIPTION AVAILABLE | FOR 3EE This part replaces 68135-41C00-0FP.

68135-41C01-0FP

Unavailable

6

EMBLEM, RH | FOR 3EE

68131-41C00-H03

Unavailable

7

COVER, FRAME LH | Includes Item(s) 8 - 9

47210-41C00-3SL

Unavailable

8

NO DESCRIPTION AVAILABLE | FOR 3SL This part replaces 68140-41C00-3SR.

68140-41C01-3SR

Unavailable

9

EMBLEM, LH | FOR 3SL

68131-41C00-E95

Unavailable

10

COVER, FRAME LH | Includes Item(s) 11 - 12

47210-41C10-3EE

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR 3EE This part replaces 68145-41C00-0FP.

68145-41C01-0FP

Unavailable

12

EMBLEM, LH | FOR 3EE

68131-41C00-H03

Unavailable

13

BRACKET,FRAME C This part replaces 43815-41C00.

43815-41C0V

Unavailable

14

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

15

CUSHION, LOWER

45326-17C00

$5.09

16

SPACER This part replaces 09180-06143.

09180-06286

$2.50

17

CUSHION, UPPER

45149-04A00

$3.59

18

SCREW

09136-06083

$2.19

19

SCREW This part replaces 09136-06062.

09136-06017

$2.59

20

COVER, FRAME CENTER | FOR 3SL

47310-41C00-0NG

Unavailable

20

COVER, FRAME CENTER | FOR 3EE; Includes Item(s) 21 - 21

47310-41C00-28V

Unavailable

21

EMBLEM,"SUZUKI" | FOR 0NG This part replaces 68166-31300-0JW.

68166-31310-13L

$4.52

21

EMBLEM,"SUZUKI" | FOR 3EE This part replaces 68166-31300-13L.

68166-31310-13L

$4.52

22

SCREW This part replaces 03141-14125.

03141-1412B

$2.83

23

NUT

09148-04024

$2.23

24

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

25

NUT

09148-05019

$1.86

26

BRACKET, REAR

47410-41C00

Unavailable

27

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

28

NUT

09148-05038

$1.97

29

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49

30

BOLT This part replaces 09116-06064.

09116-06109

$3.00
