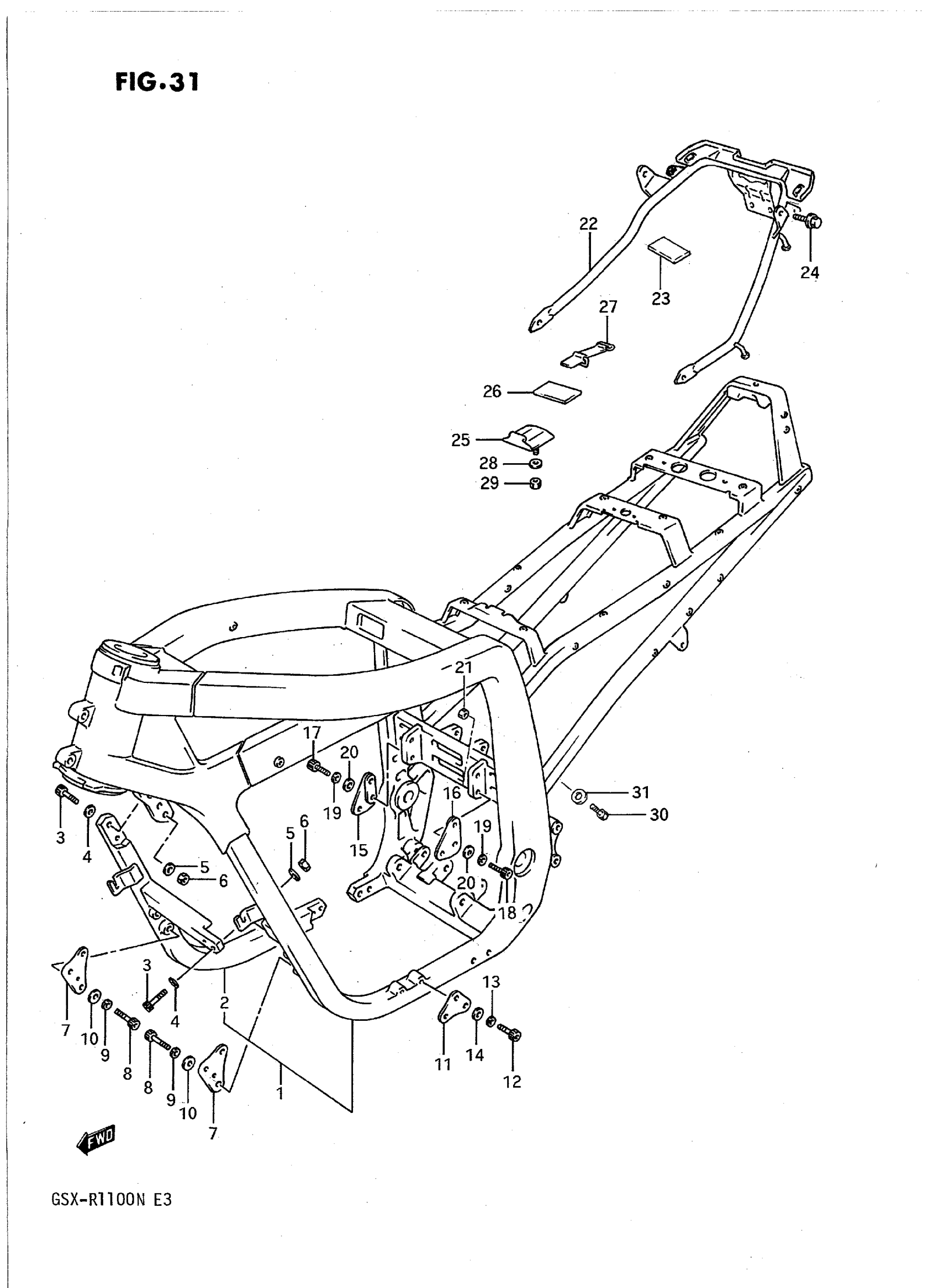

Suzuki GSX-R1100N (1992) FRAME Diagram

#

Description
Price

1

FRAME SET This part replaces 41100-41810.

41100-41820

Unavailable

1

FRAME SET | CALIFORNIA ONLY; Includes Item(s) 2 - 6

41100-41820

Unavailable

2

TUBE, FRAME DOWN RH

41140-40C30

Unavailable

3

BOLT, LH This part replaces 07110-10357.

07130-10357

$5.18

4

WASHER This part replaces 09160-10013.

09160-10123

$2.12

5

WASHER This part replaces 09164-10005.

09164-10010

$4.83

6

NUT

09159-10027

$3.10

7

PLATE, ENGINE MOUNT NO.1

41911-41C00

Unavailable

8

BOLT This part replaces 07110-08257.

07130-08257

$3.43

9

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

10

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

11

PLATE, ENGINE MOUNT NO.2

41921-17C02

Unavailable

12

BOLT This part replaces 07110-08257.

07130-08257

$3.43

13

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

14

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

15

PLATE, ENGINE MOUNT NO.3 RH

41940-40C01

Unavailable

16

PLATE, ENGINE MOUNT NO.3 LH

41950-40C01

Unavailable

17

BOLT, RH

09106-08005

Unavailable

18

BOLT This part replaces 07110-08358.

07130-08357

$3.18

19

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

20

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

21

NUT, LH

08319-31087

$2.32

22

GRIP, REAR

43980-41C10

Unavailable

23

PROTECTOR

41881-06C00

Unavailable

24

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

25

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

26

CUSHION, TOOL HOLDER

44885-38A00

$4.58

27

BAND, TOOL

09462-00093

$9.24

28

WASHER This part replaces 09160-06006.

09160-06084

$1.78

29

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

30

BOLT | CALIFORNIA ONLY This part replaces 01107-06207.

01500-06207

$2.28

31

GASKET | CALIFORNIA ONLY

09168-06001

$1.49
