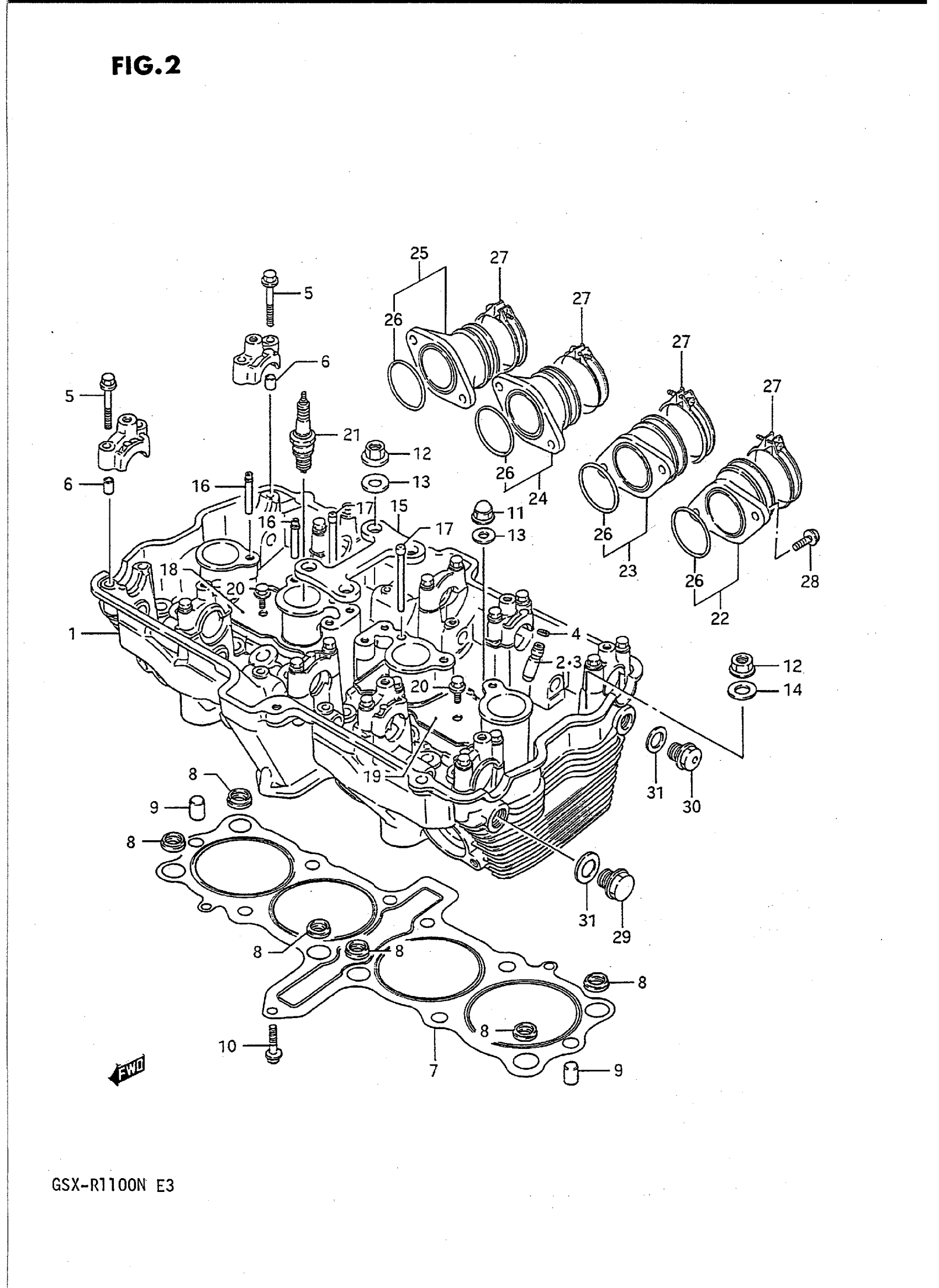

Suzuki GSX-R1100N (1992) CYLINDER HEAD Diagram

HEAD ASSY, CYLINDER

11100-41C00

Unavailable

HEAD ASSY, CYLINDER | CALIFORNIA ONLY; Includes Item(s) 2 - 6

11100-41C10

Unavailable

GUIDE, VALVE, IN

11116-06B70

$40.73

GUIDE, VALVE, EX

11116-06B70

$40.73

.RING (10X85)

09381-10004

$1.50

BOLT (6X39)

09103-06026

$1.98

PIN

09206-08001

$1.78

GASKET,CYLINDER This part replaces 11141-48B20.

11141-48B22

Unavailable

O RING This part replaces 11143-48B01.

11143-32F00

$6.28

PIN

09209-11007

$19.87

BOLT | ~E.NO.113391 This part replaces 01517-06254.

01550-0625A

$1.97

BOLT | E.NO.113392~ This part replaces 01517-06305.

01550-0630A

$2.32

NUT

09159-10069

$7.05

NUT This part replaces 08316-16106.

08316-1010B

$2.66

.GASKET (10.2X20X2.3)

09168-10031

$2.03

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

PLATE, HEAD REINFORCEMENT

11138-40C10

Unavailable

PIPE, OIL NO.1,2

11131-27A00

$6.38

PIPE, OIL NO.3

11133-27A00

Unavailable

PLATE, OIL PIPE RH

11135-27A02

Unavailable

PLATE, OIL PIPE LH

11136-27A02

Unavailable

BOLT This part replaces 01517-06128.

01550-06127

$2.30

SPARK PLUG (NGK,JR9B)

09482-00389

$6.70

SPARK PLUG (NGK,JR10B) | OPT

09482-00391

$6.35

PIPE,INTAKE NO. This part replaces 13101-40C00.

13101-40C01

$33.32

PIPE,INTAKE NO. This part replaces 13102-40C00.

13102-40C01

$33.49

PIPE,INTAKE NO. This part replaces 13103-40C00.

13103-40C01

$33.32

PIPE,INTAKE NO. | Includes Item(s) 26 This part replaces 13104-40C00.

13104-40C01

$33.32

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

CLAMP

09402-52208

$5.36

SCREW This part replaces 02152-06165.

02112-0616A

$1.49

PLUG, CYLINDER HEAD EX

09247-14034

Unavailable

PLUG, CYLINDER HEAD EX | CALIFORNIA ONLY

09247-14032

$5.28

PLUG, CYLINDER HEAD IN

09247-14032

$5.28

GASKET

09168-14004

$1.83
