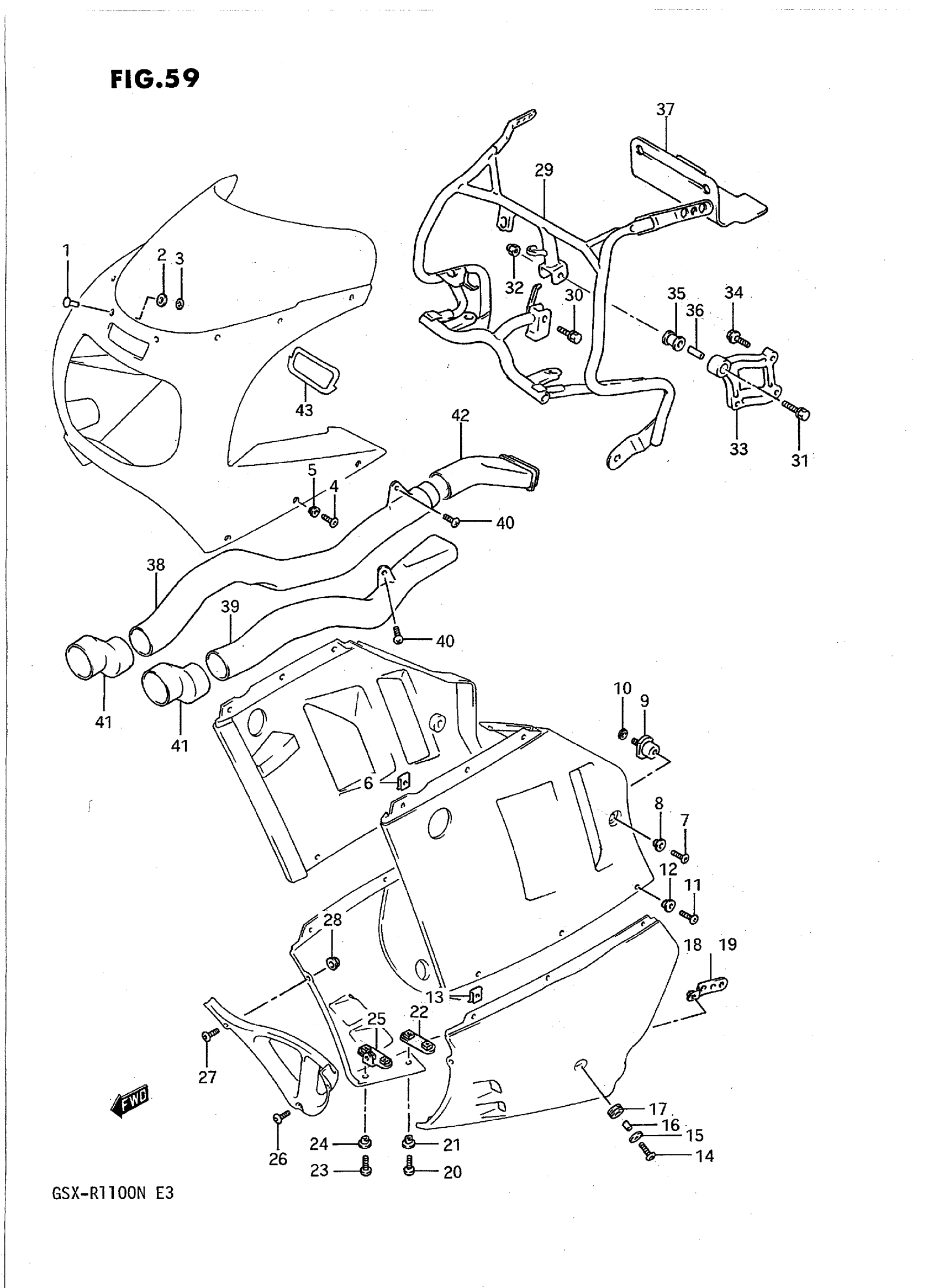

Suzuki GSX-R1100N (1992) COWLING FITTING SET Diagram

#

Description
Price

1

PIN, WIND SCREEN (4X13)

94616-10D00

$2.96

2

CUSHION This part replaces 09320-04007.

09320-04501

$2.61

3

NUT

09148-04032

$2.17

4

SCREW, SIDE COVER UPPER (5X18

09139-05032

$1.89

5

WASHER

09161-05017

$3.18

6

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

7

SCREW, SIDE COVER LOWER (6X12

09139-06027

$2.16

8

WASHER

09161-06021

$2.83

9

CUSHION, SIDE COVER

94570-04A00

$21.91

10

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

11

SCREW, UNDER COWL UPPER (5X18

09139-05032

$1.89

12

WASHER

09161-05017

$3.18

13

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

14

SCREW, UNDER COWL REAR (6X20)

09139-06028

$3.70

15

WASHER

09160-06056

$1.72

16

SPACER This part replaces 09180-06152.

09180-06262

$2.55

17

CUSHION

09320-09016

$1.97

18

BRACE, UNDER COWL RH

94580-40C00

Unavailable

19

BRACE, UNDER COWL LH

94590-40C00

Unavailable

20

SCREW, UNDER COWL LOWER (6X16

09139-06039

$2.19

21

WASHER

09161-06021

$2.83

22

BRACE, UNDER COWL LOWER

94493-06B00

Unavailable

23

SCREW, UNDER COWL LOWER (6X16

09139-06039

$2.19

24

WASHER

09161-06021

$2.83

25

BRACE, UNDER COWL LOWER,FRONT

94490-06B00

Unavailable

26

SCREW, UNDER COWL CENTER

09139-06030

$3.70

27

SCREW, UNDER COWL FRONT (5X14

09139-05025

$2.05

28

NUT This part replaces 08316-26055.

08316-2005A

$2.19

29

BRACE, COWLING

94510-41C00

Unavailable

30

NO DESCRIPTION AVAILABLE This part replaces 01137-08305.

01570-0830A

Unavailable

31

BOLT This part replaces 01137-08405.

01547-0845A

$7.25

32

NUT This part replaces 08313-21085.

08313-2008B

$2.88

33

BRACE, COWLING CENTER

94531-41C10

Unavailable

34

BOLT This part replaces 01187-08405.

01580-0840A

Unavailable

35

CUSHION, COWLING BRACE

94541-41C00

$5.18

36

SPACER This part replaces 09180-08166.

09180-08215

$4.19

37

SHEET, COWL HEAT GUARD

94533-41C00

Unavailable

38

PIPE, AIR INTAKE FRONT RH

94451-41C00

Unavailable

39

PIPE, AIR INTAKE FRONT LH

94452-41C00

Unavailable

40

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

41

JOINT, AIR INTAKE

94454-41C00

Unavailable

42

PIPE, AIR INTAKE REAR RH

94453-17C00

Unavailable

43

CUSHION, FRONT POSITION LAMP

94415-41C00

Unavailable
