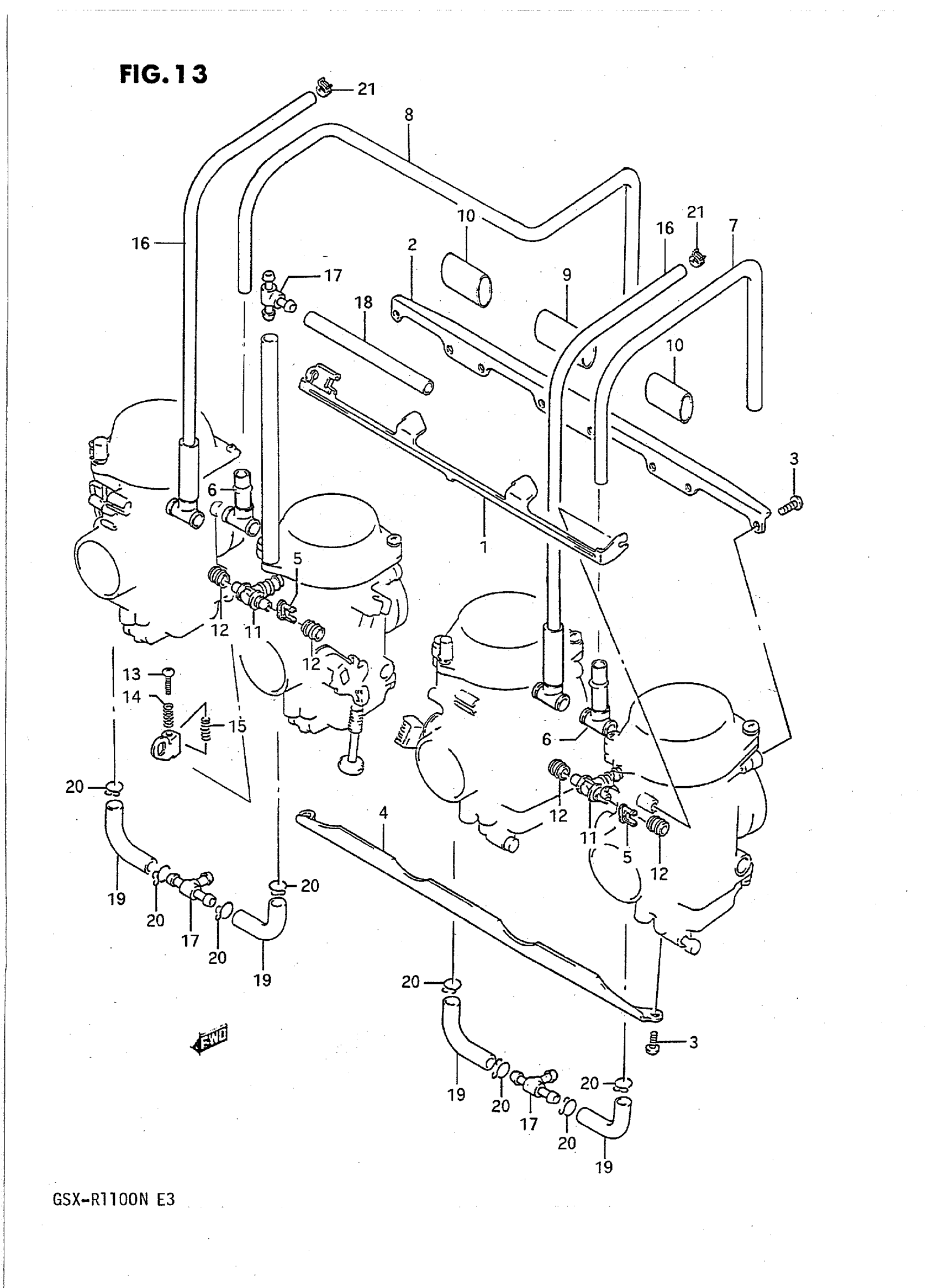

Suzuki GSX-R1100N (1992) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER

13413-20C00

Unavailable

2

PLATE

13628-17C10

Unavailable

3

SCREW This part replaces 13602-05128.

02112-05127

$1.97

4

PLATE

13628-17C00

Unavailable

5

HOLDER

13439-17C00

$10.62

6

HOSE | OTHER THAN CALIFORNIA

13684-20C10

$5.56

7

HOSE | OTHER THAN CALIFORNIA

13683-41C00

Unavailable

8

HOSE | OTHER THAN CALIFORNIA

13683-41C10

Unavailable

9

HOSE This part replaces 13684-17C00.

13684-43440

Unavailable

10

HOSE This part replaces 13684-17C10.

13684-43440

Unavailable

11

NIPPLE

13685-44B00

$11.37

12

SEAL

13673-44B00

$4.60

13

SCREW, ADJUSTER

13267-44B00

$4.10

14

SPRING

13271-44B00

$3.89

15

SPRING

13268-17C10

$6.19

16

HOSE | CALIFORNIA ONLYLH,L:625->475RH,L:625 This part replaces 13683-17C30.

13683-17C31

$16.65

17

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$12.15

18

.HOSE | CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$7.48

19

HOSE | CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.96

20

CLIP | CALIFORNIA ONLY This part replaces 13671-48B10.

09401-10401

$1.49

21

CLIP (ID:10.5,H:8) | CALIFORNIA ONLY

09401-10409

$2.26
