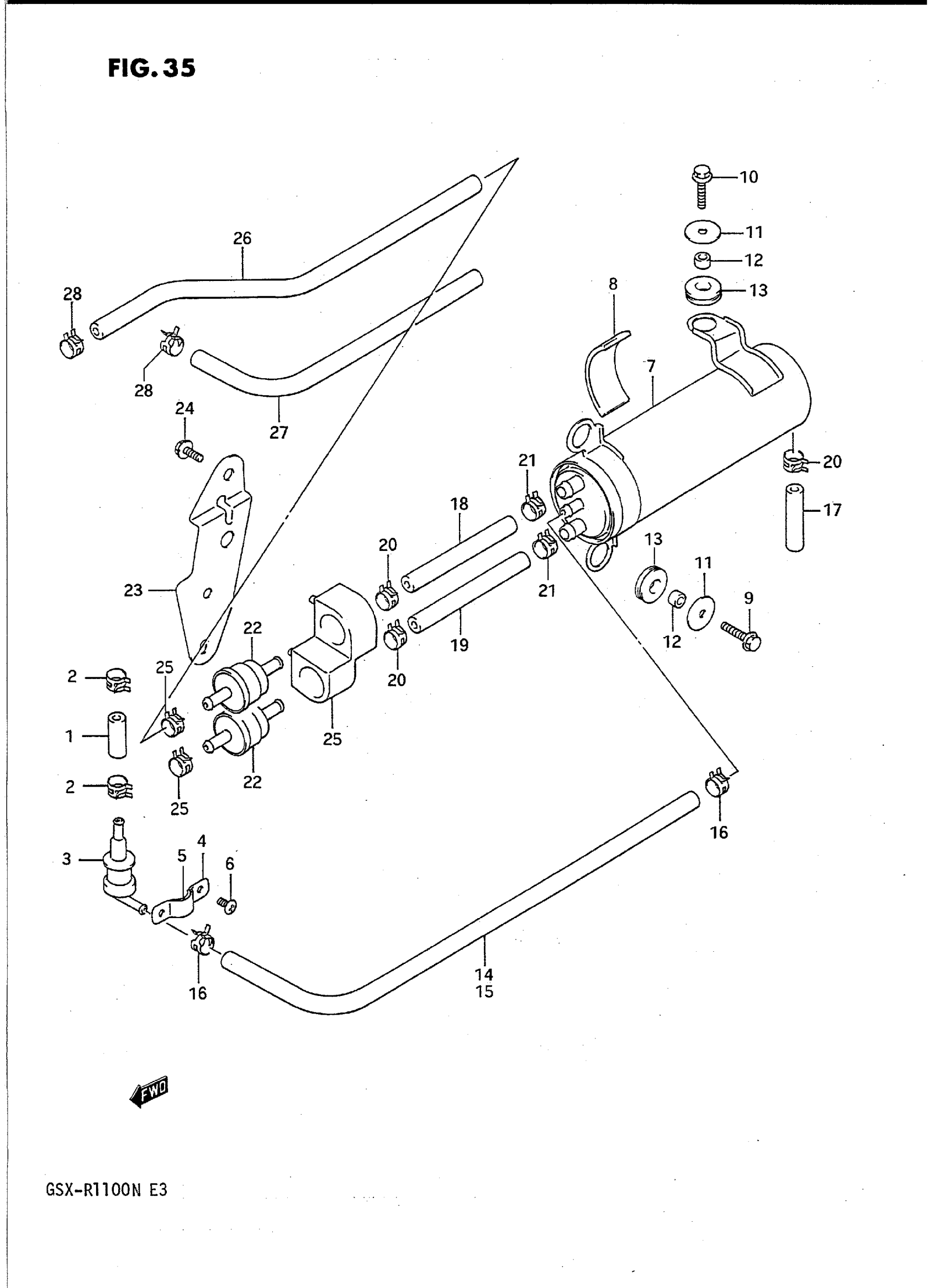

Suzuki GSX-R1100N (1992) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:300->20 This part replaces 09358-54116-300.

09355-54115-600

$14.59

2

CLIP This part replaces 09401-11410.

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 5

44892-24A00

$4.52

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

7

CANISTER

17210-17C00

Unavailable

8

CUSHION

17219-17C00

Unavailable

9

BOLT

01517-06166

Unavailable

10

BOLT This part replaces 01517-06256.

01550-0625A

$1.97

11

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

12

SPACER

09180-06082

$2.18

13

CUSHION

09320-10014

$2.92

14

HOSE, TANK & BREATHER VALVE | L:600->550 This part replaces 09358-54116-600.

09355-54115-600

$14.59

15

PROTECTOR, HOSE | L:600->500

09351-14152-600

$10.62

16

CLIP This part replaces 09401-11410.

09401-11413

$2.26

17

HOSE,6.5X11.5X6 | L:300->45 This part replaces 09354-70123-300.

44421-12FR0

$12.33

18

HOSE, CANISTER & PURGE | L:300->75 This part replaces 09359-54111-300.

09359-54111-600

$25.80

19

HOSE, CANISTER & PURGE | L:300->95 This part replaces 09359-54111-300.

09359-54111-600

$25.80

20

CLIP This part replaces 09401-11410.

09401-11413

$2.26

21

CLIP This part replaces 09401-12406.

09401-11415

$2.23

22

VALVE, CANISTER PURGE

44250-48B00

Unavailable

23

BRACKET, CANISTER PURGE VALVE

44881-17C00

Unavailable

24

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

25

CUSHION, PURGE VALVE SET

44882-17C00

Unavailable

26

HOSE, TANK & BREATHER VALVE | L:600->580 This part replaces 09354-54115-600.

09355-54115-600

$14.59

27

HOSE, TANK & BREATHER VALVE | L:600->450 This part replaces 09354-54115-600.

09355-54115-600

$14.59

28

CLIP This part replaces 09401-11410.

09401-11413

$2.26
