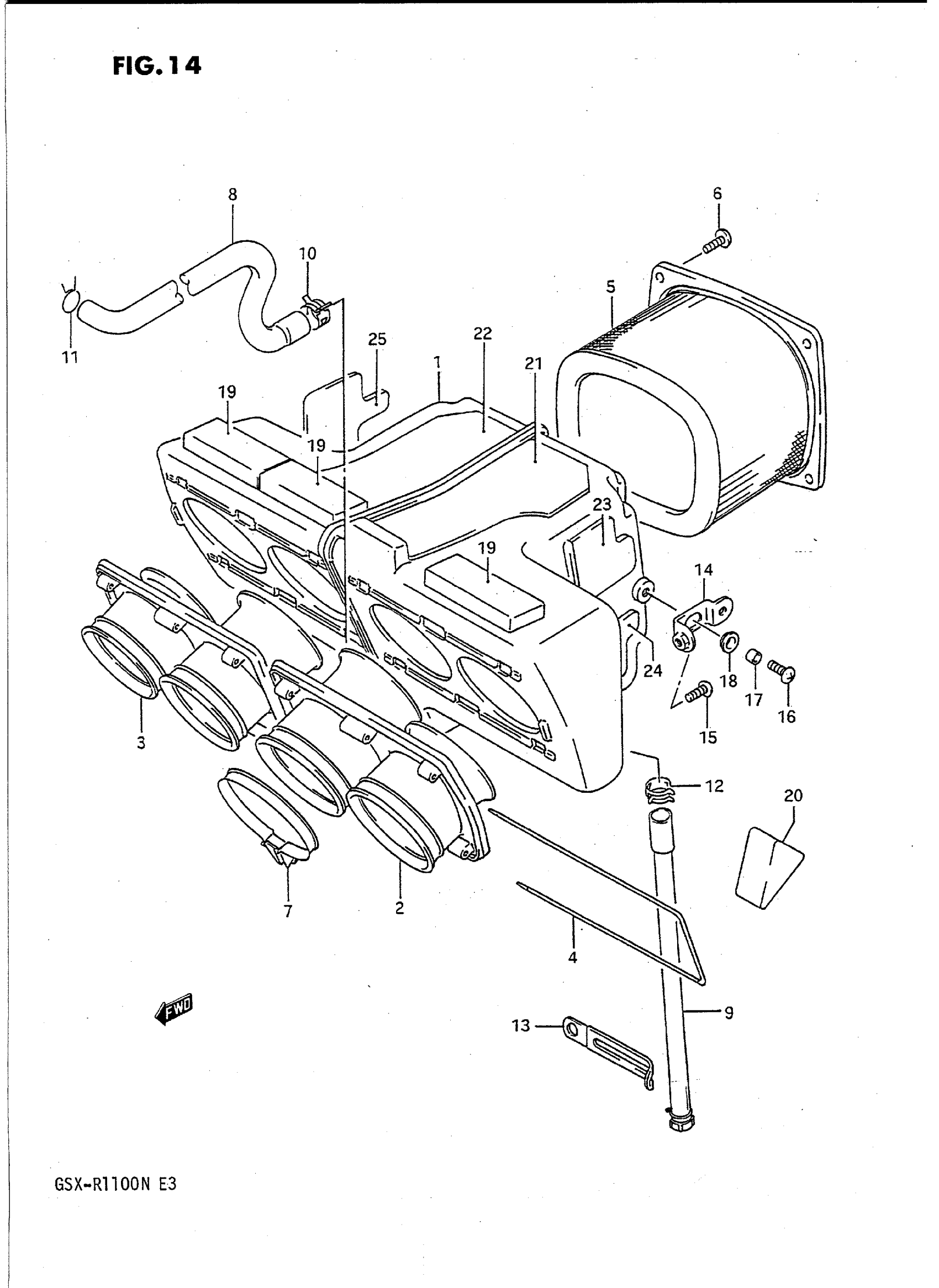

Suzuki GSX-R1100N (1992) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13720-17C00.

13720-17C10

Unavailable

2

TUBE, OUTLET LH

13880-17C00

Unavailable

3

TUBE, OUTLET RH

13890-17C00

Unavailable

4

SHAFT, OUTLET TUBE

13899-17C01

Unavailable

5

FILTER ASSY, AIR

13780-17C00

$52.60

6

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

7

CLAMP

09402-66208

$5.57

8

TUBE, BREATHER

13854-40C00

Unavailable

9

TUBE,DRAIN This part replaces 13870-41C00.

13870-11459

$15.51

10

CLAMP This part replaces 09401-13406.

09401-13404

Unavailable

11

CLIP This part replaces 13824-48B10.

09401-16401

$3.14

12

CLIP This part replaces 09401-16402.

09401-16403

$2.83

13

CLAMP This part replaces 09404-10404.

09404-10417

$2.72

14

BRACKET, CLEANER CASE

13760-17C01

Unavailable

15

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

16

SCREW (6X18)

09125-06029

$1.72

17

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

18

CUSHION, OUTER This part replaces 09161-09003.

09161-09006

$2.36

19

CUSHION, CASE

13848-17C00

Unavailable

20

CUSHION, AIR VENT HOSE, NO.1

13897-17C00

Unavailable

21

SHEET, NO.1

13842-17C10

Unavailable

22

SHEET, NO.2

13843-17C10

Unavailable

23

SHEET, NO.3

13844-17C10

Unavailable

24

SHEET, NO.4

13845-17C10

Unavailable

25

SHEET, NO.5

13846-17C10

Unavailable
