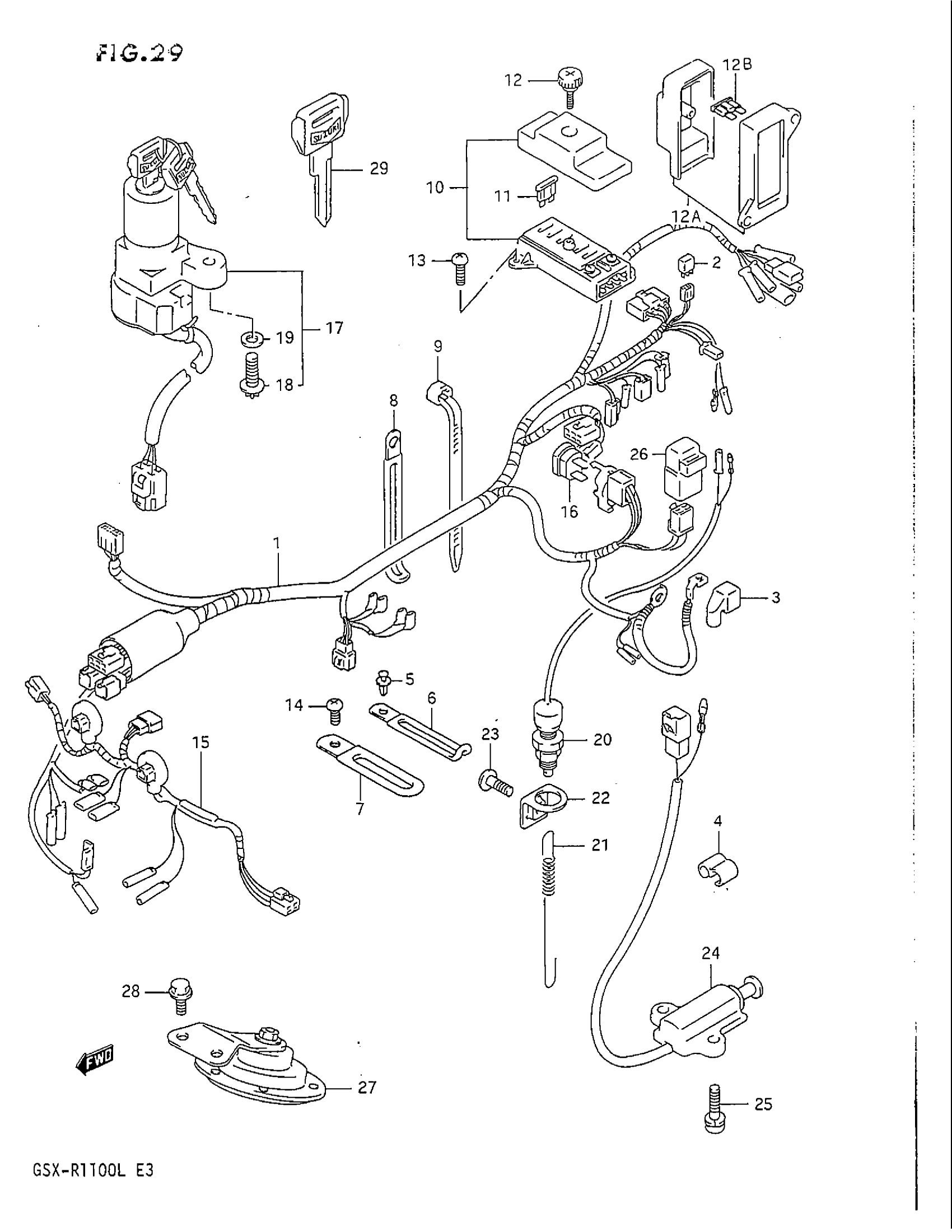

Suzuki GSX-R1100 (1990) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING | MODEL K This part replaces 36610-40C10.

36610-40C52

Unavailable

1

HARNESS,WIRING | MODEL L; Includes Item(s) 2 - 3 This part replaces 36610-40C50.

36610-40C52

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

CAP, BATTERY (+) TERMINAL | MODEL K This part replaces 33624-27A00.

33624-43500

$5.50

4

CLIP

09408-00002

$2.30

5

CLIP This part replaces 09409-07305.

09409-07305-5PK

$2.21

6

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

6

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

7

CLAMP (L:67)

09404-05403

Unavailable

8

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

10

BOX ASSY, FUSE | MODEL K; Includes Item(s) 11 - 12 This part replaces 36740-17C00.

36740-27A00

Unavailable

11

FUSE (10A) | MODEL K

09481-10101

$2.07

12

.SCREW | MODEL K This part replaces 36721-17C00.

03541-0420A

$2.15

12A

BOX ASSY, FUSE | MODEL L; Includes Item(s) 12B - 12B

36740-17D00

Unavailable

12B

FUSE (10A) | MODEL L

09481-10101

$2.07

12B

FUSE (20A) | MODEL L

09481-20101

$2.12

13

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

14

SCREW This part replaces 02142-05128.

02142-05127

$1.97

15

WIRE, HEADLAMP LEAD | MODEL K This part replaces 36856-40C00.

36856-17D00

Unavailable

15

WIRE, HEADLAMP LEAD | MODEL L

36856-17D00

Unavailable

16

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

17

LOCK ASSY, STEERING | Includes Item(s) 18 - 19 This part replaces 37100-17C00.

37100-26D03

$194.77

18

BOLT

09139-06026

$2.50

19

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.84

20

SWITCH ASSY, STOP LAMP

37740-04A10

$23.32

21

SPRING

09443-06012

$3.16

22

BRACKET, SWITCH

43251-17C01

Unavailable

23

BOLT

09139-06027

$2.16

24

SWITCH ASSY,SID This part replaces 37840-17C01.

37840-32C02

Unavailable

25

SCREW This part replaces 02112-36165.

02112-3616A

$1.97

26

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

$45.20

27

HORN ASSY

38500-40C00

Unavailable

28

BOLT This part replaces 01517-06108.

01550-06107

$2.80

29

KEY, BLANK | OPT This part replaces 37146-03A80.

37146-26D10

$49.70
