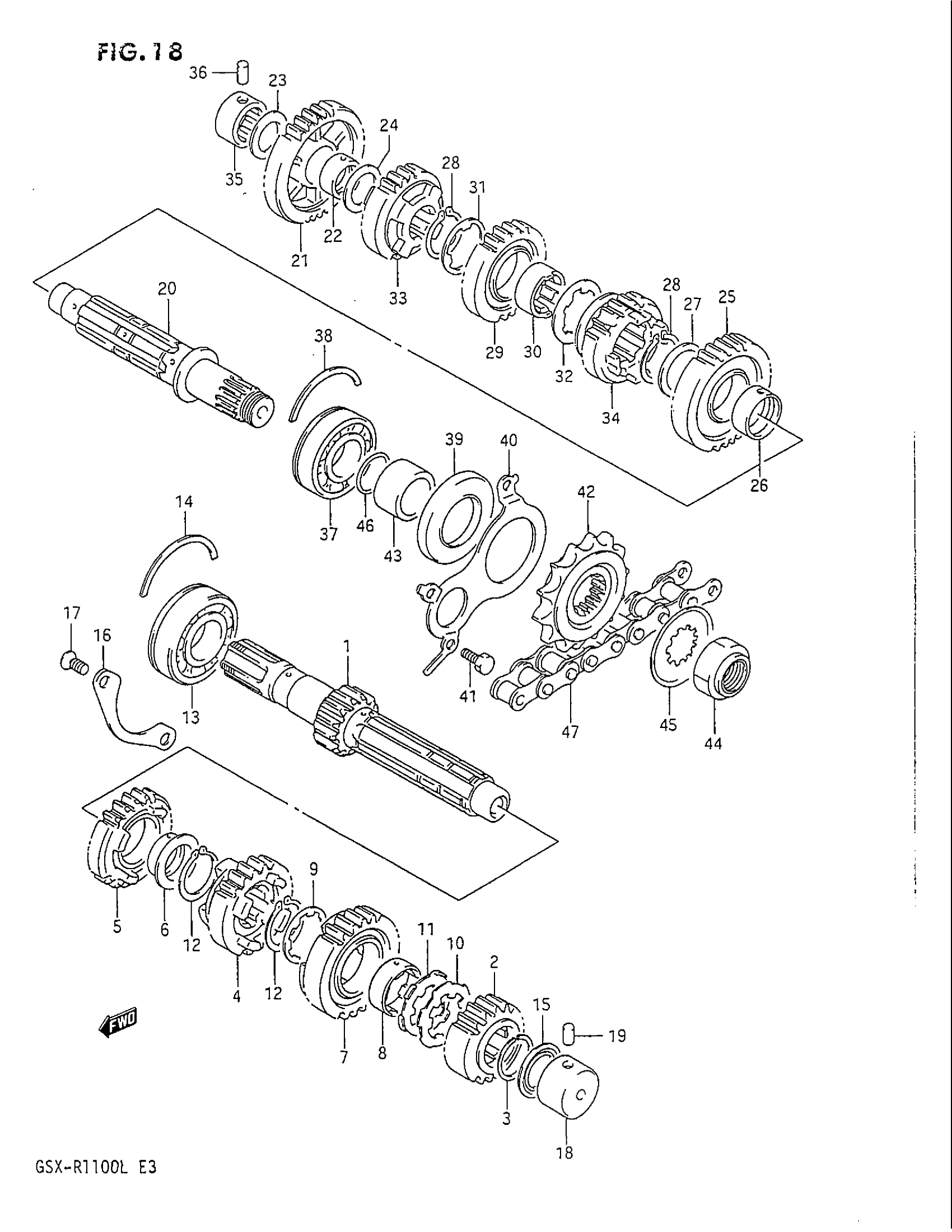

Suzuki GSX-R1100 (1990) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13) This part replaces 24121-40C02.

24121-40C03

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-40C00

Unavailable

3

CIRCLIP

09380-25013

$4.17

4

GEAR,3RD DRIVE, This part replaces 24231-48B01.

24231-48B10

Unavailable

5

GEAR,4TH DRIVE, This part replaces 24241-48B00.

24241-48B50

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

7

GEAR,5TH DRIVE This part replaces 24251-48B02.

24251-48B30

Unavailable

8

BUSH

24252-48B00

Unavailable

9

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

10

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

11

WASHER, LOCK

09169-25001

$2.70

12

SNAP RING

09380-25003

$3.04

13

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

14

C RING This part replaces 09390-62006.

09390-62012

$7.31

15

OIL SEAL

09285-20006

$6.51

16

HOLDER, BEARING

24741-27A00

$10.07

17

SCREW

02122-06167

$1.49

18

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$55.20

19

PIN

04221-07129

$1.86

20

DRIVESHAFT | MODEL K

24131-48B00

Unavailable

20

SHAFT, DRIVE | MODEL L This part replaces 24131-40C10.

24131-40C21

Unavailable

21

GEAR, 1ST DRIVEN (NT:31) This part replaces 24311-48B00.

24311-48B20

Unavailable

22

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

$28.15

23

WASHER, RH

08211-20341

$2.80

24

WASHER, LH

08211-22341

$3.85

25

GEAR, 2ND DRIVEN (NT:31) This part replaces 24321-48B00.

24321-48B10

$150.78

26

BUSH

09300-28002

$18.70

27

WASHER

08211-28361

$4.77

28

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

29

GEAR,3RD DRIVEN | MODEL K This part replaces 24331-48B02.

24331-48B30

Unavailable

29

GEAR,3RD DRIVEN | MODEL L This part replaces 24331-48B03.

24331-48B30

Unavailable

30

BUSH, 3RD DRIVEN GEAR This part replaces 24332-48B00.

24332-48B01

$35.42

31

WASHER, RH

09167-28001

$4.60

32

WASHER, LH (T:2)

09167-28008

Unavailable

33

GEAR,4TH DRIVEN This part replaces 24341-06B01.

24341-06B30

Unavailable

34

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-48B01.

24351-48B06

$127.43

35

BEARING, RH

09263-20040

$55.20

36

PIN (L:20)

04221-07209

$2.30

37

BEARING, LH

09262-25103

Unavailable

38

C RING This part replaces 09390-62006.

09390-62012

$7.31

39

OIL SEAL (34X62X6)

09283-34005

$12.61

40

PLATE

24751-27A01

Unavailable

41

BOLT This part replaces 01107-06107.

01500-06107

$2.06

42

SPROCKET, ENGINE (NT:15)

27510-48B00

$98.00

43

SPACER (25X34X19.7) | MODEL K

09180-25093

Unavailable

43

SPACER (25X34X22.7) | MODEL L

09180-25094

Unavailable

44

NUT

09159-20004

$15.67

45

WASHER, LOCK

09167-25019

$2.19

46

O RING (D:1,ID:24.5)

09280-25001

$1.56

47

CHAIN, DRIVE (RK532GSV2X116LE | MODEL K This part replaces 27600-40C20-114.

27600-46E20-116

Unavailable

47

CHAIN, DRIVE (RK532GSV2X118LE | MODEL L

27600-40C20-118

Unavailable
