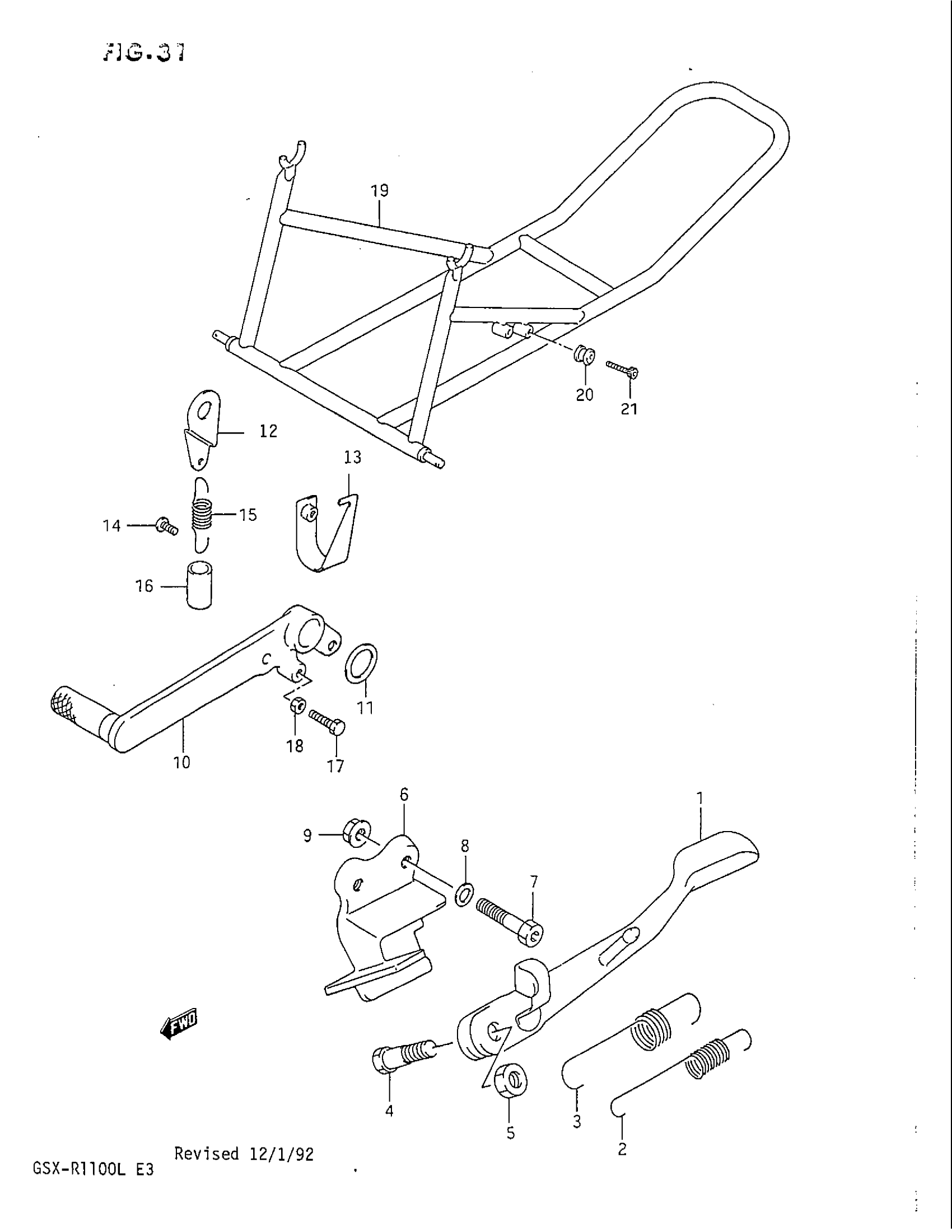

Suzuki GSX-R1100 (1990) STAND Diagram

#

Description
Price

1

STAND, PROP | MODEL K

42310-40C00

Unavailable

1

STAND, PROP | MODEL L

42310-07D02

Unavailable

2

SPRING, INNER

09443-14058

$5.64

3

SPRING, OUTER

09443-19011

$5.75

4

BOLT

09111-10036

$4.82

5

NUT This part replaces 08310-22107.

08310-00107

$2.19

6

BRACKET, PROP STAND | MODEL K

42330-40C10

Unavailable

6

BRACKET, PROP STAND | MODEL L

42330-40C20

Unavailable

7

BOLT This part replaces 07110-08357.

07130-08357

$3.18

8

WASHER

09164-08015

$3.21

9

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

10

PEDAL, BRAKE | MODEL K This part replaces 43110-17C02.

43110-17C03

Unavailable

10

PEDAL, BRAKE | MODEL L

43110-17C03

Unavailable

11

WASHER

09160-18022

$2.92

12

PLATE, BRAKE PEDAL

43561-17C01

Unavailable

13

BRACKET, STOP SWITCH LOWER This part replaces 43563-17C00.

43563-17C01

Unavailable

14

BOLT

09139-06027

$2.16

15

SPRING

09443-13018

$3.23

16

TUBE, SPRING

43261-17C00

$6.12

17

BOLT This part replaces 01104-05206.

01500-0520B

$2.32

18

NUT This part replaces 08310-11058.

08310-00057

$1.84

19

NO DESCRIPTION AVAILABLE | OPT This part replaces 42100-17C00.

99950-70043-RAC

Unavailable

20

HOLDER, STAND | OPT

61165-27A30

Unavailable

21

BOLT, STEERING DAMPER | OPT This part replaces 07110-08305.

07130-0830A

$1.74
