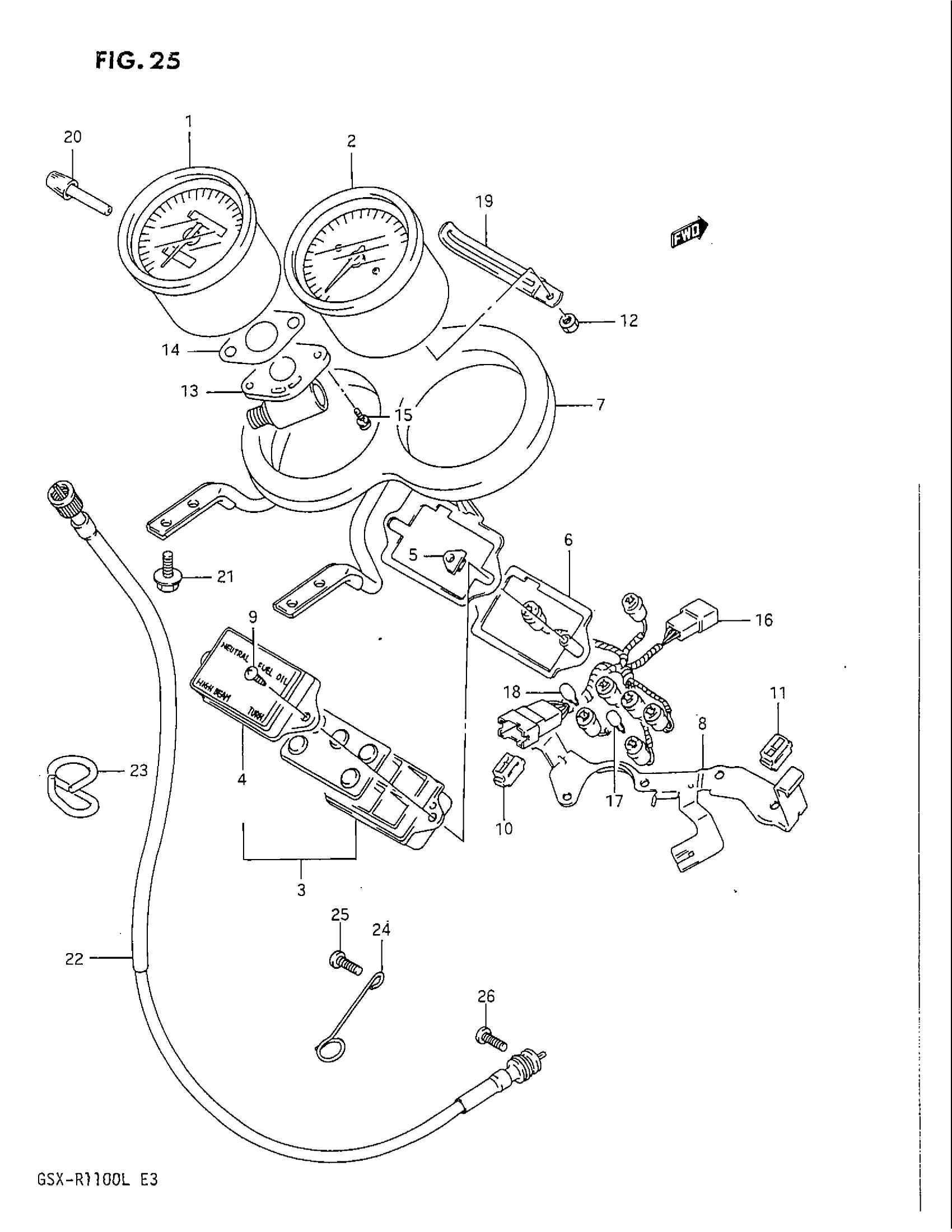

Suzuki GSX-R1100 (1990) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER This part replaces 34110-40C30.

34110-41C31

Unavailable

2

TACHOMETER | MODEL K This part replaces 34210-40C20.

34210-41C21

Unavailable

2

TACHOMETER | MODEL L This part replaces 34210-40C60.

34210-41C21

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 36380-40C30.

36380-40C20

Unavailable

4

CASE, UPPER

36381-40C20

Unavailable

5

DAMPER

34716-32C00

Unavailable

6

PLATE, PILOT BOX

34718-32C00

Unavailable

7

PLATE, SETTING

34950-40C20

Unavailable

8

BRACKET

34111-17C00

Unavailable

9

SCREW This part replaces 02112-74085.

02112-7408B

$2.34

10

DAMPER, LH

34189-17C00

Unavailable

11

CUSHION This part replaces 34189-04A30.

34189-27A00

$6.17

12

NUT This part replaces 08310-11045.

08310-0004A

$2.30

13

BOX, METER GEAR

34131-48B10

Unavailable

14

GASKET, GEAR BOX

34132-17C00

Unavailable

15

SCREW This part replaces 02112-34128.

02112-3412B

$2.30

16

SOCKET This part replaces 34170-40C20.

34170-41C20

Unavailable

17

BULB (12V,3W)

09471-12103

$3.83

18

.BULB (12V1.7W)

09471-12108

$3.42

19

CLAMP (L:60) This part replaces 09404-04402.

09404-06429

$1.83

20

KNOB

34124-49400

$4.43

21

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

22

CABLE,SPEEDOMET | MODEL K This part replaces 34910-40C01.

34910-19C02

$31.75

22

CABLE,SPEEDOMET | MODEL L This part replaces 34910-17C00.

34910-19C02

$31.75

23

CLAMP, CABLE

34939-40C50

Unavailable

24

GUIDE, SPEEDOMETER CABLE NO.3 | MODEL K

34939-45000

Unavailable

24

GUIDE, SPEEDOMETER CABLE NO.3 | MODEL L

34939-17D00

Unavailable

25

SCREW

02142-06108

$2.45

26

SCREW

02112-05164

$2.63
