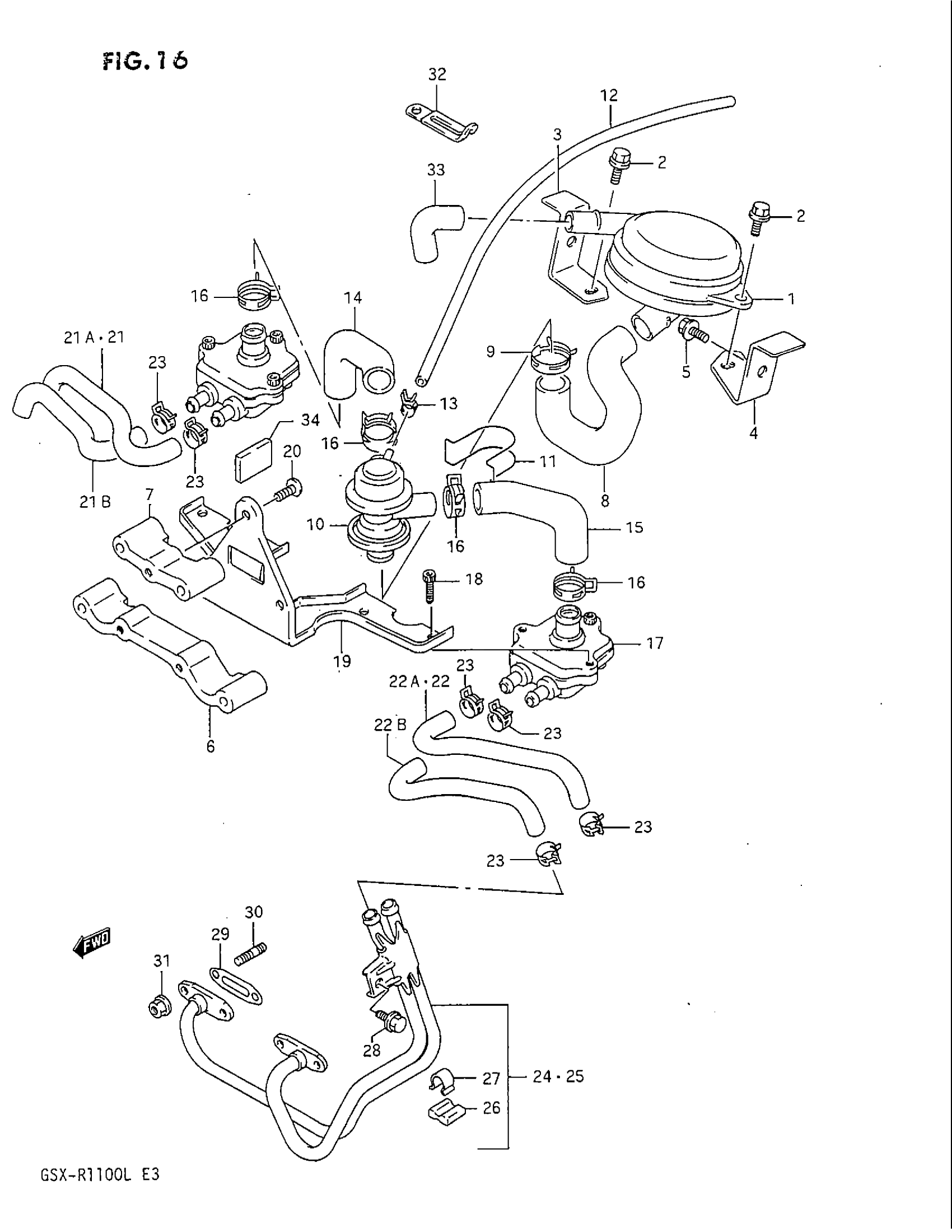

Suzuki GSX-R1100 (1990) SECOND AIR (CARIFORNIA ONLY) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR | MODEL K This part replaces 18700-17C01.

18700-17C03

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL L This part replaces 18700-17C02.

18700-17C03

Unavailable

2

BOLT

01517-06166

Unavailable

3

BRACKET, AIR CLEANER, RH

18750-40C01

Unavailable

4

BRACKET, AIR CLEANER, LH

18760-40C01

Unavailable

5

BOLT

01517-06166

Unavailable

6

SPACER, BRACKET, LOWER

18523-40C01

Unavailable

7

SPACER, BRACKET, UPPER

18524-40C01

Unavailable

8

HOSE, 2ND AIR, NO.3

18550-40C01

Unavailable

9

CLIP

09401-25402

Unavailable

10

VALVE ASSY, AIR SWITCHING This part replaces 18510-48B00.

18510-20C00

Unavailable

11

CLAMP, SWITCING VALVE

18522-17C00

Unavailable

12

HOSE, 2ND AIR VALVE VACUUM | L:550->250 This part replaces 09359-45852-550.

09359-45852-600

Unavailable

13

CLIP

09401-07401

Unavailable

14

HOSE, 2ND AIR NO.2,RH

18481-40C00

Unavailable

15

HOSE, 2ND AIR NO.2,LH

18482-40C00

Unavailable

16

CLIP

09401-21401

Unavailable

17

VALVE ASSY, 2ND AIR REED | Includes Item(s) 18

18450-48B00

Unavailable

18

BOLT This part replaces 07110-05167.

07130-05167

$3.15

19

BRACKET, AIR VALVE

18521-40C01

Unavailable

20

SCREW This part replaces 02142-06126.

02142-0612A

$1.49

21

HOSE, 2ND AIR NO.1, RH | MODEL K

18445-40C00

Unavailable

21A

HOSE, 2ND AIR NO.1, RH IN | MODEL L

18445-17D00

Unavailable

21B

HOSE, 2ND AIR NO.1, RH OUT | MODEL L

18447-17D00

Unavailable

22

HOSE, 2ND AIR NO.1, LH | MODEL K

18446-40C00

Unavailable

22A

HOSE, 2ND AIR NO.1, LH IN | MODEL L

18446-17D00

Unavailable

22B

HOSE, 2ND AIR NO.1, LH OUT | MODEL L

18448-17D00

Unavailable

23

CLAMP This part replaces 09401-13408.

09401-13417

$2.26

24

PIPE, 2ND AIR, RH

18401-40C00

Unavailable

25

PIPE, 2ND AIR, LH | Includes Item(s) 26 - 27

18402-40C00

Unavailable

26

CUSHION

18428-48B00

Unavailable

27

CLIP

18429-17C00

Unavailable

28

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

29

GASKET, 2ND AIR PIPE This part replaces 18441-17C00.

18441-17C11

$7.25

30

BOLT,STUD This part replaces 01421-06125.

01421-0612A

Unavailable

31

NUT This part replaces 08316-16064.

08316-1006B

$2.50

32

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

33

HOSE, CLEANER INLET

18731-17C00

Unavailable

34

CUSHION, SWITCING VALVE

18519-17C00

Unavailable
