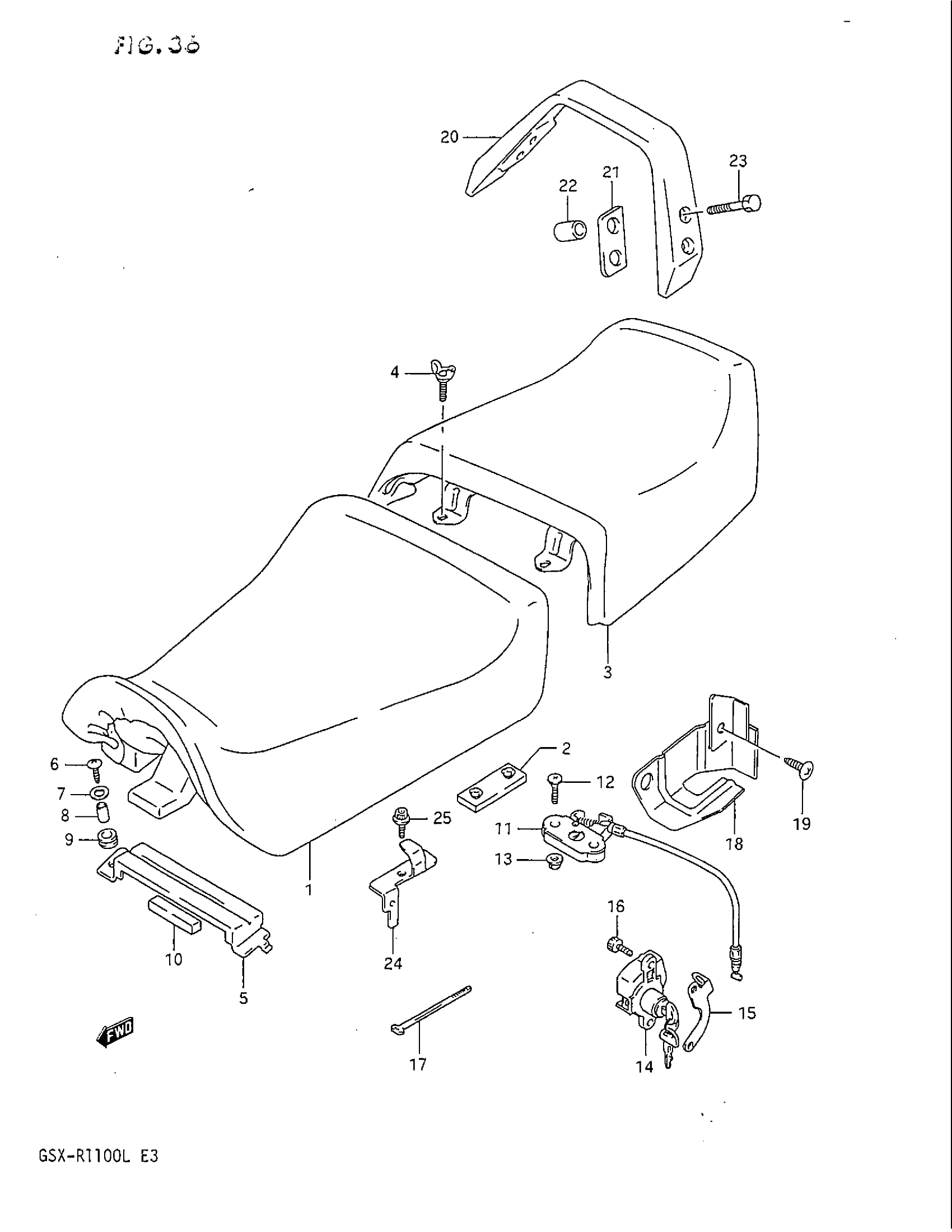

Find the part on the Seat diagram for your 1990 Suzuki GSX-R1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki GSX-R1100 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) | FOR 9SR,3SH This part replaces 45100-40C00-5NN.

45100-40C00-58R

1
Out of stock

1

SEAT ASSY (BLACK) | FOR 3CG; Includes Item(s) 2

45100-40C00-58R

1
Out of stock

2

CUSHION

45149-31300

4
Out of stock

3

SEAT ASSY, PILLION (BLACK) | FOR 9SR,3SH This part replaces 45300-40C00-5NN.

45300-40C00-58R

1
Out of stock

3

SEAT ASSY, PILLION (BLACK) | FOR 3CG

45300-40C00-58R

1
Out of stock

4

BOLT, PILLION SEAT

09119-06072

2
Out of stock

5

PLATE,SEAT SUPP This part replaces 45271-40C00.

45271-40C0V

1
Out of stock

6

1

$1.49

In stock

9

CUSHION This part replaces 09320-08048.

09320-08501

1
Out of stock

10

CUSHION, SEAT SUPPORT PLATE This part replaces 45272-17C01.

45272-17C02

1
Out of stock

11

BRACKET, SEAT SUPPORT REAR

45220-17C00

1
Out of stock

12

2

$1.61

In stock

13

NUT

08319-31067

2

$2.18

In stock

14

CAP SET,SEAT This part replaces 45700-19C00-KEY.

45700-19841

1
Out of stock

15

PLATE, SEAT LOCK

45123-17C00

1
Out of stock

16

BOLT (6X12) This part replaces 09106-06055.

09106-06075

2
Out of stock

17

1

$2.67

In stock

18

NO DESCRIPTION AVAILABLE This part replaces 45288-40C10.

45288-40C11

1
Out of stock

18

PLATE, SEAT LOCK CABLE | CALIFORNIA ONLY This part replaces 45288-40C00.

45288-40C01

1
Out of stock

19

BOLT This part replaces 01117-06165.

01550-0616A

1
Out of stock

20

HANDLE, PILLION RIDER

46211-17C00

1
Out of stock

21

CUSHION

46238-17C10

2
Out of stock

22

SPACER

09180-08078

4
Out of stock

23

4

$4.53

In stock

24

HOLDER, HELMET

95721-40C00

2
Out of stock

25

2

$3.00

In stock
