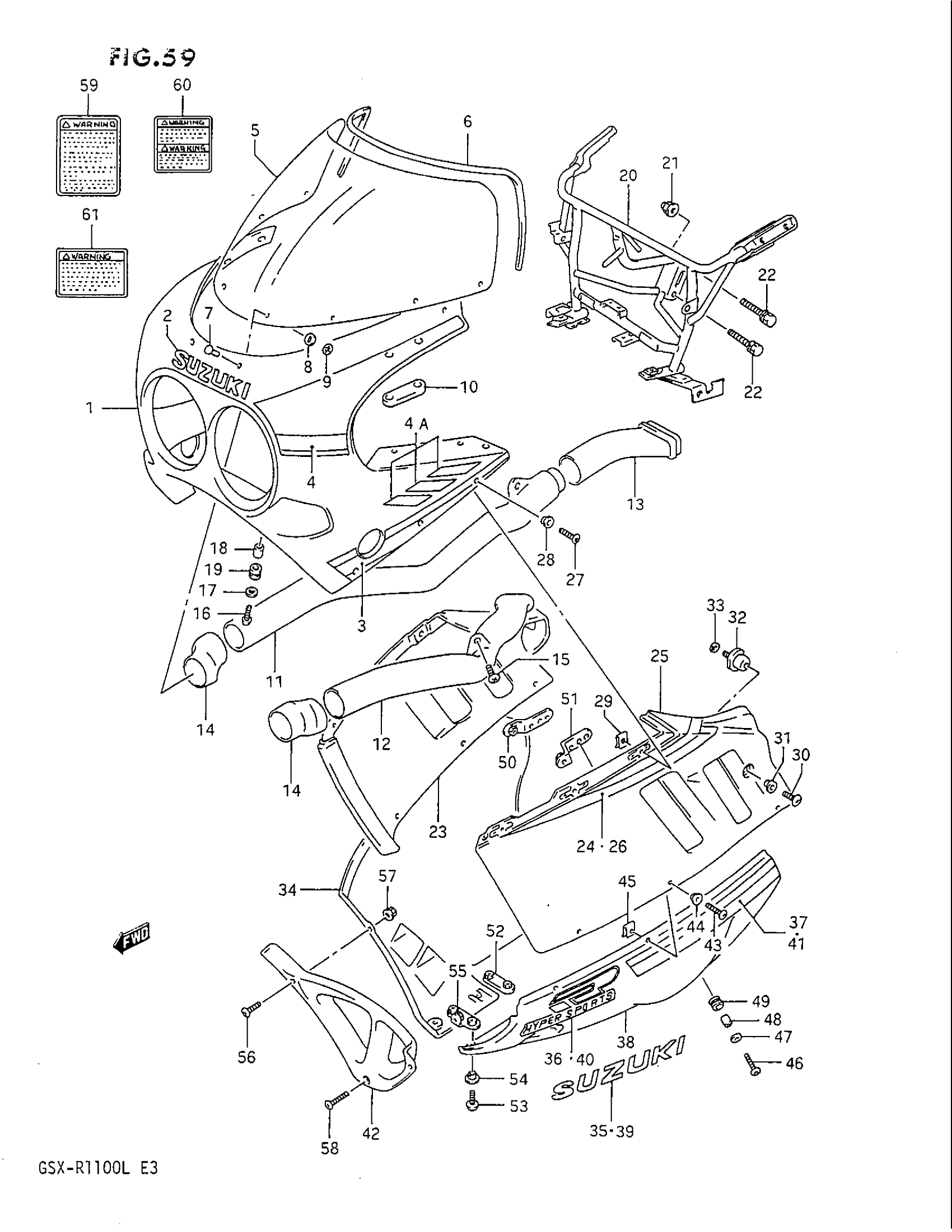

Suzuki GSX-R1100 (1990) COWLING (MODEL L 3SH) Diagram

#

Description
Price

1

BODY ASSY, COWLING (WHITE) | Includes Item(s) 2 - 4A

94400-40C71-0JW

Unavailable

2

EMBLEM

68185-05C10-0NE

Unavailable

3

TAPE SET, SIDE

68270-40C30-3TU

Unavailable

4

TAPE SET, FRONT

68280-40C00-3TU

Unavailable

4A

TAPE SET, UPPER

68270-32C40-3BK

Unavailable

5

SCREEN SET, WIND | Includes Item(s) 6

94610-40C21

Unavailable

6

MOLDING This part replaces 94631-40C20.

94631-18D01

Unavailable

7

PIN, WIND SCREEN (4X13) This part replaces 94616-40C01.

94616-10D00

$2.80

8

CUSHION This part replaces 09320-04007.

09320-04501

$3.18

9

NUT

09148-04032

$1.68

10

CUSHION, MIRROR

94576-12C00

Unavailable

11

PIPE, AIR INTAKE FRONT RH

94451-40C00

Unavailable

12

PIPE, AIR INTAKE FRONT LH

94452-40C00

Unavailable

13

PIPE, AIR INTAKE REAR RH

94453-17C00

Unavailable

14

JOINT, AIR INTAKE

94454-40C00

Unavailable

15

SCREW This part replaces 02142-06205.

02142-0620A

$1.38

16

SCREW, BODY FRONT

09139-06056

$2.95

17

WASHER

09160-06056

$1.73

18

SPACER This part replaces 09180-06152.

09180-06262

$2.64

19

CUSHION

09320-09016

$1.97

20

NO DESCRIPTION AVAILABLE This part replaces 94510-40C12.

94510-40C13

Unavailable

21

NUT This part replaces 08313-21085.

08313-2008B

$3.13

22

BOLT This part replaces 01137-08355.

01570-0835A

$2.90

23

NO DESCRIPTION AVAILABLE | Includes Item(s) 24 This part replaces 94430-40C61-3SH.

94430-40C10-13L

Unavailable

24

TAPE, SIDE RH

68685-40C20-3TS

Unavailable

25

NO DESCRIPTION AVAILABLE | Includes Item(s) 26 This part replaces 94440-40C61-3SH.

94440-40C62-3SH

Unavailable

26

TAPE, SIDE LH

68695-40C20-3TS

Unavailable

27

SCREW, COVER UPPER

09139-05032

$2.00

28

WASHER

09161-05017

$2.80

29

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

30

SCREW

09139-06027

$2.00

31

WASHER

09161-06021

$2.80

32

CUSHION, COVER

94570-04A00

$20.63

33

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

34

NO DESCRIPTION AVAILABLE | Includes Item(s) 35 - 37 This part replaces 94470-41C10-3SH.

94470-41C12-3SH

Unavailable

35

EMBLEM, SUZUKI This part replaces 68111-34301-0NE.

68111-34320-0NE

Unavailable

36

EMBLEM

68181-40C20-3TW

Unavailable

37

TAPE, RH

68185-40C20-3TS

Unavailable

38

COWLING, UNDER LH (BLUE/WHITE | Includes Item(s) 39 - 41

94480-41C10-3SH

Unavailable

39

EMBLEM, SUZUKI

68181-17D00-0NE

Unavailable

40

EMBLEM

68181-40C20-3TW

Unavailable

41

TAPE, LH

68195-40C20-3TS

Unavailable

42

NO DESCRIPTION AVAILABLE This part replaces 94498-17D00-0JW.

94498-17C02-0MA

Unavailable

43

SCREW, UNDER UPPER

09139-05032

$2.00

44

WASHER

09161-05017

$2.80

45

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

46

SCREW, UNDER LOWER

09139-06028

$3.33

47

WASHER

09160-06056

$1.73

48

SPACER This part replaces 09180-06152.

09180-06262

$2.64

49

CUSHION

09320-09016

$1.97

50

BRACE, UNDER COWL RH This part replaces 94580-17C01.

94580-40C00

Unavailable

51

BRACE, UNDER COWL LH This part replaces 94590-17C01.

94590-40C00

Unavailable

52

BRACE, LOWER

94493-06B00

Unavailable

53

SCREW

09139-06039

$2.20

54

WASHER

09161-06021

$2.80

55

BRACE, LOWER FRONT

94490-06B00

Unavailable

56

SCREW

09139-05025

$1.89

57

NUT This part replaces 08316-26055.

08316-2005A

$2.21

58

SCREW

09139-06030

$3.33

59

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.53

60

LABEL,WARNING S This part replaces 68613-40C11.

68613-21E11

Unavailable

61

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$9.64
