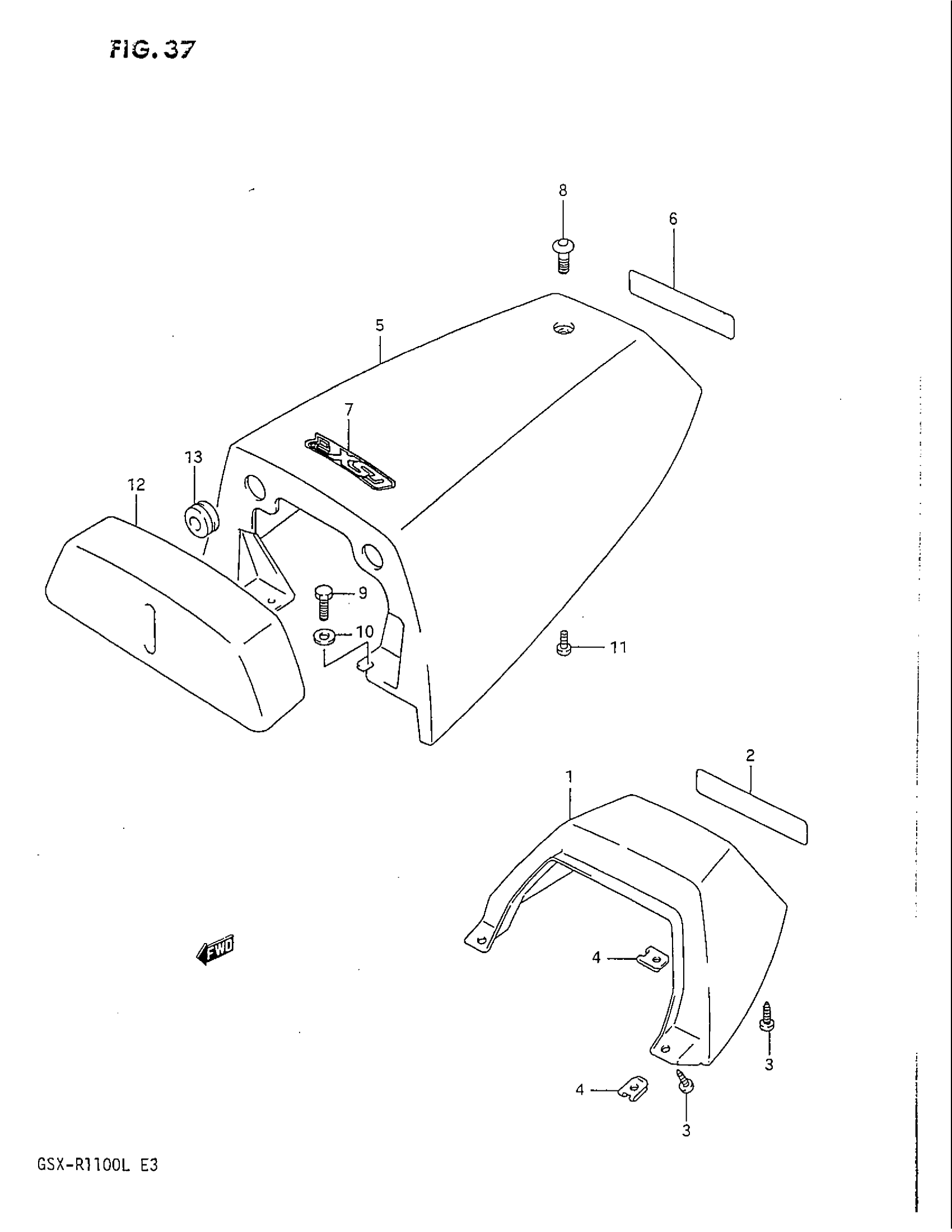

Suzuki GSX-R1100 (1990) SEAT TAIL COVER Diagram

#

Description
Price

1

COVER, SEAT TAIL (BLUE) | MODEL K FOR 9SR,W/CLEAR This part replaces 45510-40C10-33N.

45510-40C12-0NE

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K FOR 3CG,W/CLEAR This part replaces 45510-40C10-33J.

45510-17C52-33J

Unavailable

1

COVER, SEAT TAIL (BLUE) | MODEL K FOR 9SR,N/CLEAR This part replaces 45510-40C11-33N.

45510-40C12-0NE

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K FOR 3CG,N/CLEAR This part replaces 45510-40C11-33J.

45511-17C10

Unavailable

1

COVER, SEAT TAIL (BLUE) | MODEL L FOR 3SH

45510-40C12-0NE

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L FOR 3CG; Includes Item(s) 2 - 2 This part replaces 45510-40C12-33J.

45510-17C52-33J

Unavailable

2

EMBLEM (WHITE) | MODEL K FOR 33N This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

2

EMBLEM (SILVER) | FOR 33J

68166-04700-742

Unavailable

2

EMBLEM (WHITE) | MODEL L FOR 0NE

68166-04700-0JW

$5.02

3

SCREW This part replaces 03242-05129.

03241-0512A

$1.49

4

NUT

09148-05013

$2.07

5

NO DESCRIPTION AVAILABLE | OPT,MODEL K FOR 9SR,W/CLEAR This part replaces 45500-17C20-33N.

45500-17880-13L

Unavailable

5

NO DESCRIPTION AVAILABLE | OPT,MODEL K FOR 3CG,W/CLEAR This part replaces 45500-17C40-33J.

45500-17840-36X

Unavailable

5

NO DESCRIPTION AVAILABLE | OPT,MODEL K FOR 9SR,N/CLEAR This part replaces 45500-17C21-33N.

45500-17880-13L

Unavailable

5

BOX ASSY, SEAT TAIL (BLACK) | OPT,MODEL K FOR 3CG,N/CLEAR; Includes Item(s) 6 - 11

45500-17C41-33J

Unavailable

6

EMBLEM (WHITE) | OPT,FOR 33N This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

6

EMBELM (SILVER) | OPT,FOR 33J

68166-04700-742

Unavailable

7

TAPE, SEAT TAIL BOX | OPT,MODEL K FOR 33J

68651-17C00-2RM

Unavailable

8

SCREW, UPPER | OPT

09139-06030

$3.70

9

BOLT, GEAR SHIFT LINK | OPT This part replaces 01107-06206.

01500-0620A

$1.78

10

.WASHER | OPT This part replaces 08322-21066.

08322-0106B

$2.26

11

SCREW | OPT This part replaces 02142-05128.

02142-05127

$1.97

12

BACKREST, SEAT (BLUE) | OPT,FOR 9SR

46220-17C10-5NN

Unavailable

12

BACKREST, SEAT (BLACK) | OPT,FOR 3CG

46220-17C10-58R

Unavailable

13

CUSHION | OPT

09320-12031

$2.34

14

BOX SET, SEAT TAIL (BLUE) | OPT,MODEL L FOR 3SH

45500-17840-0NE

Unavailable

14

NO DESCRIPTION AVAILABLE | OPT,MODEL L FOR 3CG; Includes Item(s) 15 - 21 This part replaces 45500-17840-33J.

45500-17840-36X

Unavailable

15

EMBLEM (WHITE) | OPT,FOR 0NE

68166-04700-0JW

$5.02

15

EMBLEM (SILVER) | OPT,FOR 33J

68166-04700-742

Unavailable

16

SCREW, UPPER | OPT

09139-06030

$3.70

17

BOLT, GEAR SHIFT LINK | OPT This part replaces 01107-06206.

01500-0620A

$1.78

18

.WASHER | OPT This part replaces 08322-21066.

08322-0106B

$2.26

19

SCREW | OPT This part replaces 02142-05128.

02142-05127

$1.97

20

BACKREST, SEAT (BLUE) | OPT,FOR 0NE

46220-17C10-5NN

Unavailable

20

BACKREST, SEAT (BLACK) | OPT,FOR 33J

46220-17C10-58R

Unavailable

21

CUSHION | OPT

09320-12031

$2.34
