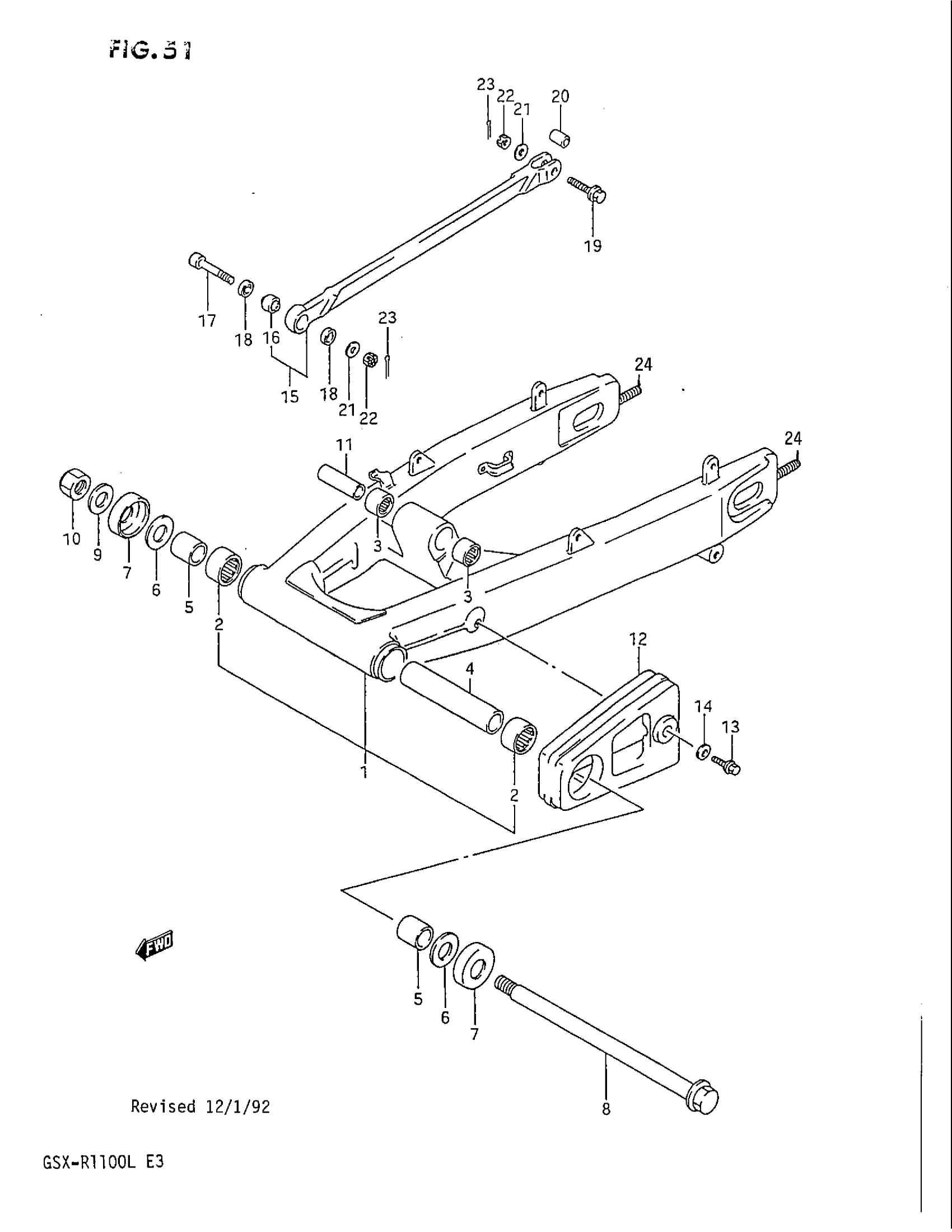

Suzuki GSX-R1100 (1990) REAR SWINGING ARM (MODEL K) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-40C00

Unavailable

2

BEARING, PIVOT

09263-25024

$25.92

3

BEARING

09263-20071

$25.92

4

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$28.42

5

SPACER, BEARING

61251-17C00

$43.37

6

WASHER, THRUST (T:1)

08211-20381

$4.10

6

WASHER, THRUST (T:1.5)

08211-20382

Unavailable

7

DUST SEAL,RR SW This part replaces 61262-17C00.

61262-17C01

$9.57

8

SHAFT, PIVOT

61211-17C00

Unavailable

9

WASHER This part replaces 08322-11188.

08322-0118B

$2.70

10

NUT

09159-18007

$19.68

11

SPACER, LEVER

62317-17C00

Unavailable

12

BUFFER, CHAIN TOUCH DEFENCE

61273-17C01

Unavailable

13

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

14

WASHER

09169-06055

$2.27

15

NO DESCRIPTION AVAILABLE | Includes Item(s) 16 This part replaces 64300-40810.

64300-40811

Unavailable

16

BEARING This part replaces 64352-40411.

64352-40401

Unavailable

17

BOLT, FRONT

09106-08048

$5.73

18

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

19

BOLT, REAR This part replaces 09103-08161.

09103-08160

Unavailable

20

SPACER

64336-20A00

Unavailable

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

NUT This part replaces 08314-41088.

08314-4008B

$3.03

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
