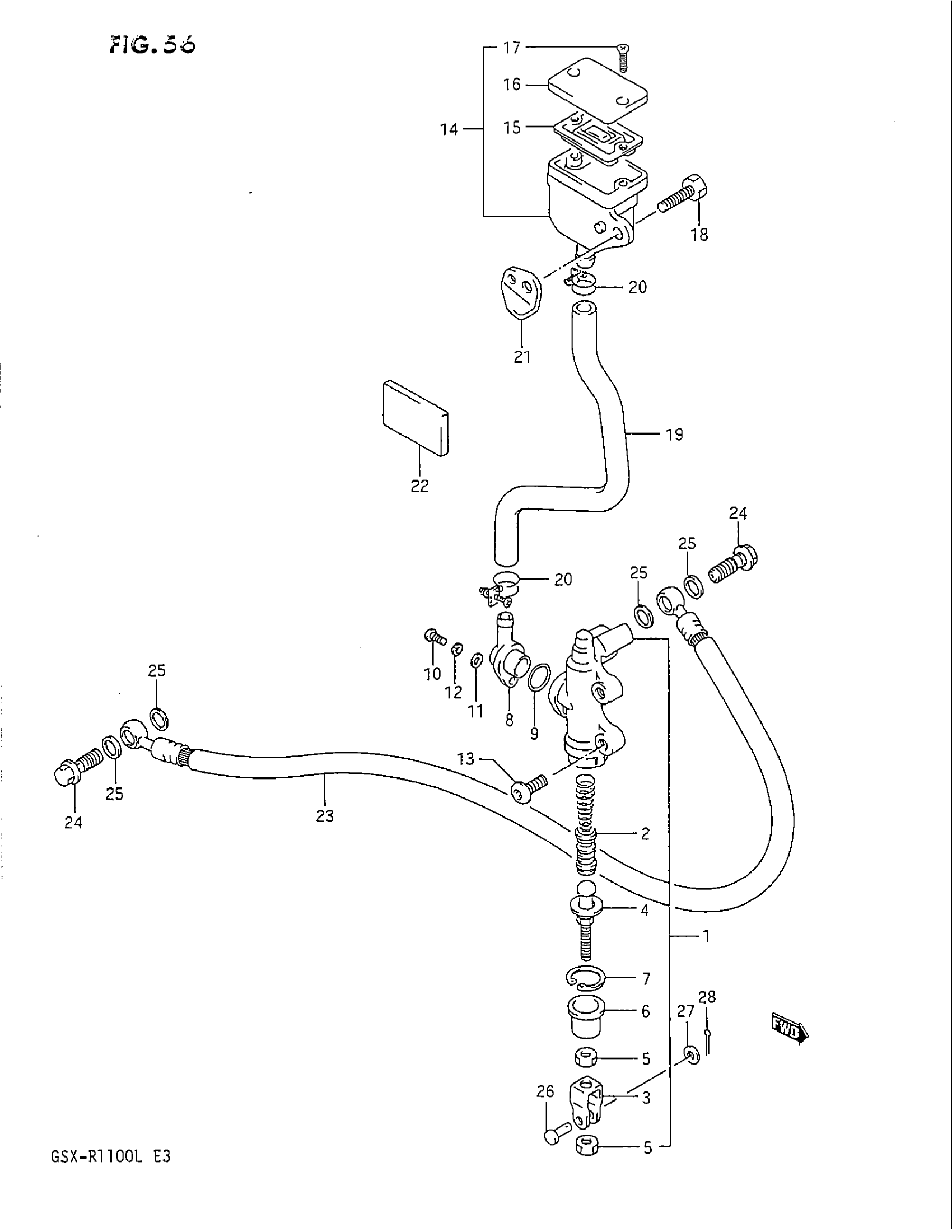

Suzuki GSX-R1100 (1990) REAR MASTER CYLINDER (MODEL K) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | TO 69600-17C01; Includes Item(s) 2 - 12 This part replaces 69600-17C00.

69600-17C01

$307.20

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$49.42

3

YOKE

69692-27A30

$13.81

4

ROD, PUSH

69670-48B00

$26.97

5

NUT

69693-05A00

$1.96

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-05A00

$5.56

9

O RING

69686-34200

$2.93

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.49

11

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

12

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

13

BOLT (8X22)

09139-08009

Unavailable

14

TANK ASSY, REAR RESERVOIR | Includes Item(s) 15 - 17 This part replaces 69740-38B20.

69740-38B21

$103.83

15

DIAPHRAGM

59667-04700

$9.78

16

CAP This part replaces 69669-24A00.

69669-24A01

$15.10

17

SCREW

69689-04A00

$1.78

18

BOLT This part replaces 01107-06257.

01500-06257

$1.97

19

HOSE, RESERVOIR

69731-17C10

Unavailable

20

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

21

BRACKET, TANK REAR

69751-17C00

Unavailable

22

CUSHION This part replaces 69732-17C01.

47451-38A01

$4.43

23

HOSE, REAR BRAKE

69480-40C00

Unavailable

24

BOLT

09360-10017

$3.42

25

WASHER (10X15X1.5)

09161-10009

$1.84

26

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

27

WASHER This part replaces 08322-21067.

08322-01067

$2.13

28

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
