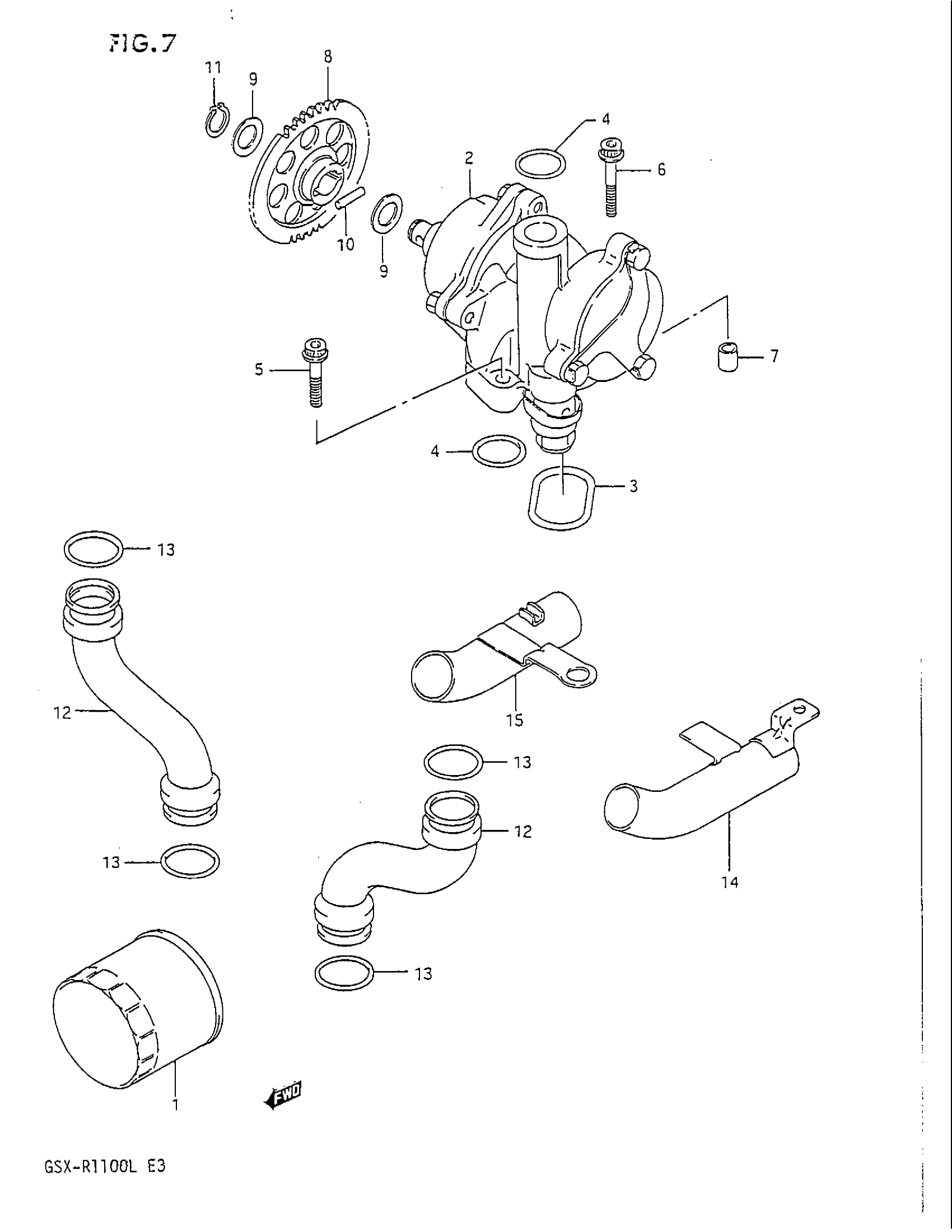

Suzuki GSX-R1100 (1990) OIL PUMP Diagram

#

Description
Price

1

FILTER, ENGINE OIL This part replaces 16510-06B00.

16510-07J00

$13.10

2

PUMP ASSY, ENGINE OIL This part replaces 16400-06B10.

16400-06B01

Unavailable

3

O RING, OIL PUMP

16491-27A01

$9.31

4

O RING

09280-18009

$5.83

5

BOLT This part replaces 07120-06308.

07120-06307

$4.32

6

BOLT This part replaces 07120-06358.

07120-0635B

$3.38

7

PIN

04211-09129

$1.65

8

GEAR, OIL PUMP DRIVEN

16331-06B01-0B1

Unavailable

9

WASHER

08221-12205

$2.30

10

PIN

09261-05006

$1.49

11

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

12

PIPE, OUTLET

16481-48B01

$50.10

13

O RING

09280-22016

$5.58

14

PIPE, OIL UNDER, LH

16530-17C00

Unavailable

15

PIPE, OIL UNDER, RH This part replaces 16540-27A01.

16540-27A02

Unavailable
