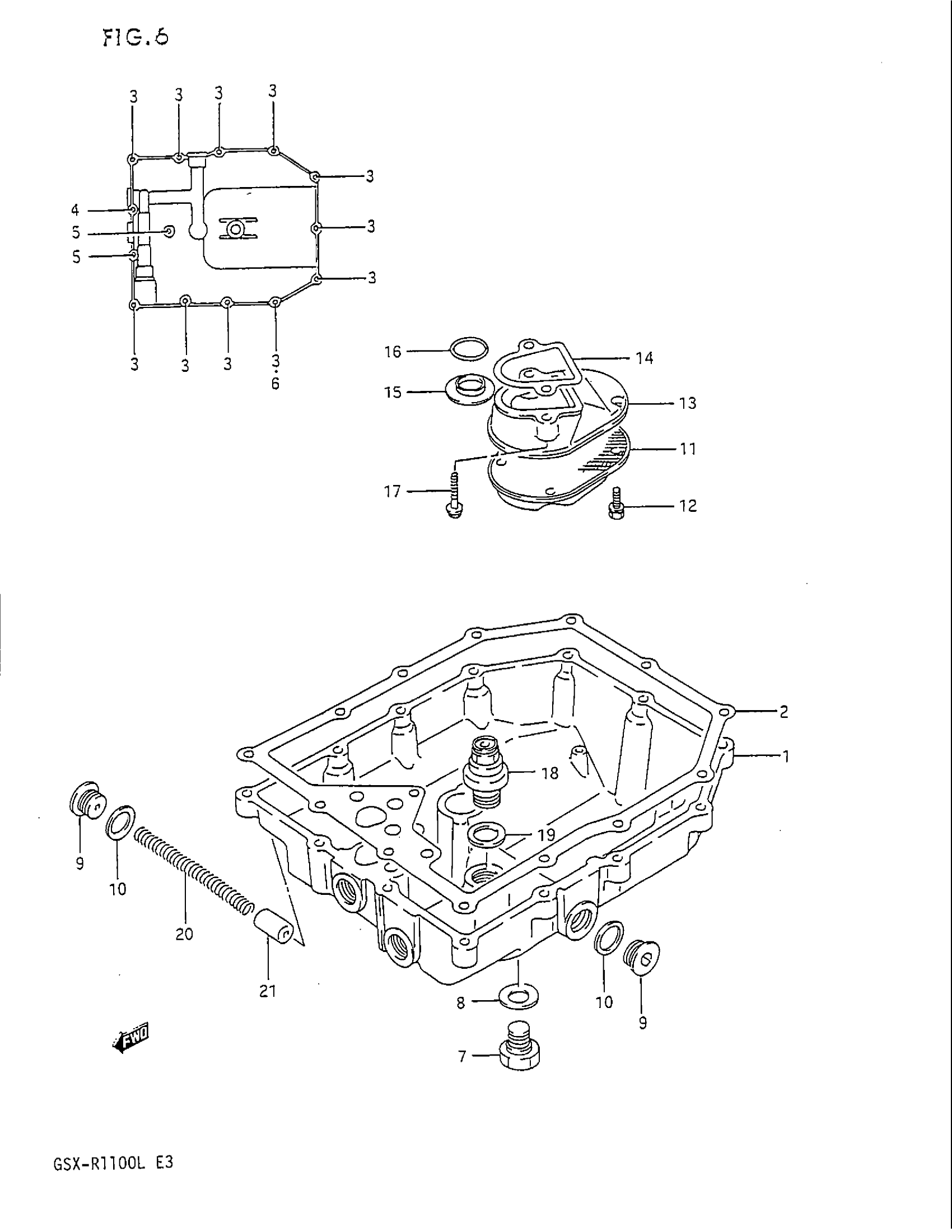

Suzuki GSX-R1100 (1990) OIL PAN Diagram

#

Description
Price

1

PAN, OIL | ~E.NO.102576 This part replaces 11511-17C01.

11511-17C02

Unavailable

1

PAN, OIL | E.NO.102577~

11511-17C02

Unavailable

2

O RING, OIL PAN This part replaces 11489-27A00.

11489-27A21

$16.33

3

BOLT | ~E.NO.102576 This part replaces 07110-06255.

07130-0625B

$3.04

3

BOLT | E.NO.102577~ This part replaces 07110-06257.

07130-06257

$3.16

4

BOLT | ~E.NO.102576 This part replaces 09106-06034.

07130-0655B

$4.10

4

BOLT | E.NO.102577~ This part replaces 09106-06067.

07130-0655B

$4.10

5

BOLT | ~E.NO.102576 This part replaces 07110-06455.

07130-0645B

$4.10

5

BOLT | E.NO.102577~ This part replaces 07110-06458.

07130-0645B

$4.10

6

GASKET

09168-06024

$2.20

7

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

8

GASKET

09168-14004

$1.83

9

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

10

GASKET

09168-16002

$1.91

11

STRAINER, ENGINE OIL

16520-17C00

Unavailable

12

BOLT This part replaces 01137-06128.

01570-06127

$2.50

13

PROTECTOR, STRAINER

16525-17C00

Unavailable

14

GASKET, OIL STR PROTECTOR This part replaces 16528-27A02.

16528-27A21

$5.78

15

GASKET, OUTLET

16529-27A01

$2.15

16

O RING

09280-18009

$5.83

17

BOLT This part replaces 01517-06258.

01550-06257

$2.30

18

VALVE ASSY, OIL RELIEF This part replaces 16440-17C00.

16440-17C10

$67.28

19

WASHER

09168-16002

$1.91

20

SPRING

09440-09027

Unavailable

21

PLUNGER, OIL CONTROL

16442-34301

Unavailable
