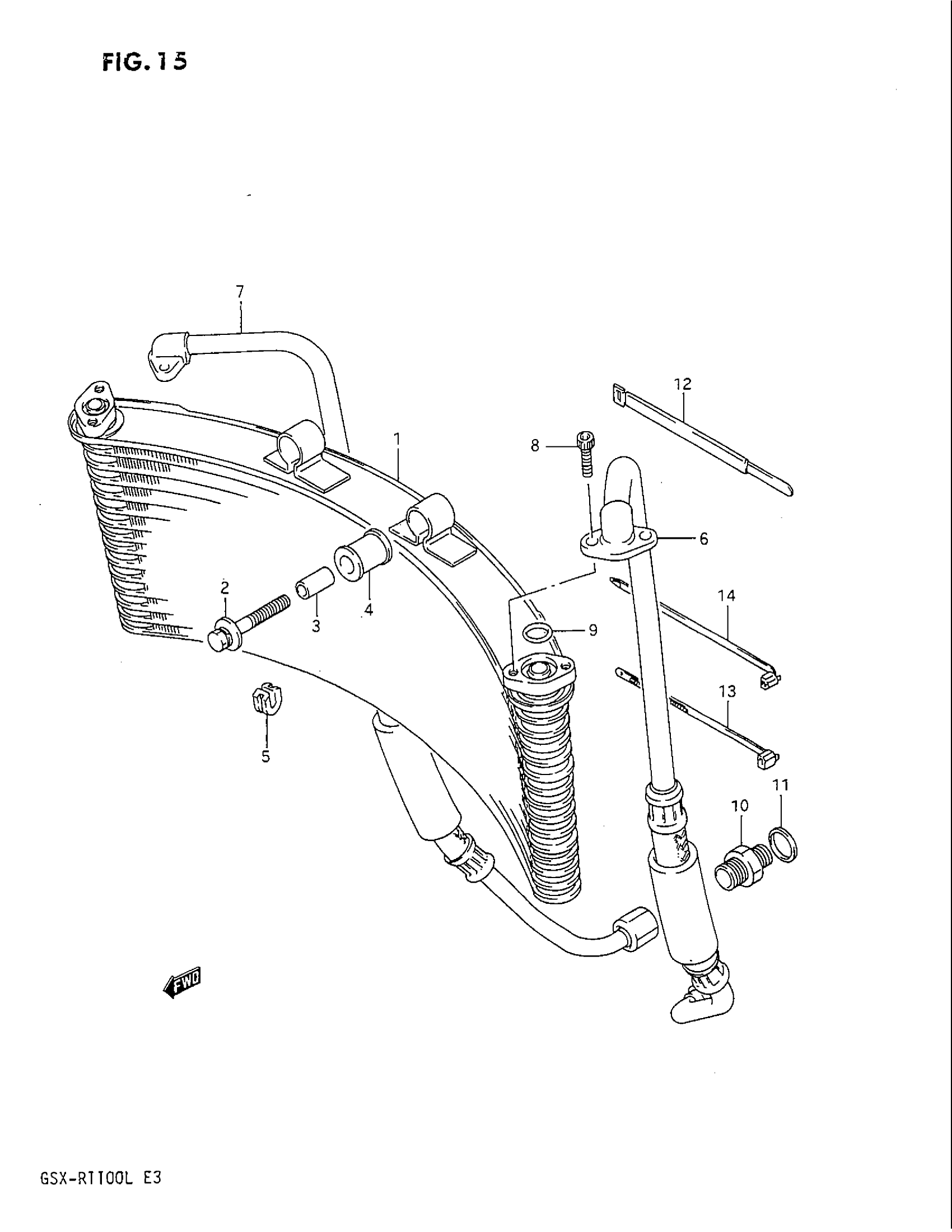

Suzuki GSX-R1100 (1990) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL | ~E.NO.105414 This part replaces 16600-40C01.

16600-40C03

Unavailable

1

COOLER ASSY, OIL | E.NO.105415~

16600-40C03

Unavailable

2

BOLT (8X40)

09118-08131

$3.15

3

SPACER This part replaces 09180-08124.

09180-08304

$6.80

4

CUSHION, NO.1

16629-27A01

$4.52

5

CUSHION, NO.2

16628-27A00

$2.92

6

HOSE, OIL COOLER LH | ~E.NO.105414

16460-40C00

Unavailable

6

HOSE, OIL COOLER LH | E.NO.105415~ This part replaces 16460-40C01.

16460-40C10

Unavailable

7

HOSE, OIL COOLER RH | ~E.NO.105414

16470-40C00

Unavailable

7

HOSE, OIL COOLER RH | E.NO.105415~ This part replaces 16470-40C01.

16470-40C10

Unavailable

8

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

9

O RING

09280-12008

$2.76

10

BOLT, UNION

09360-20002

Unavailable

11

GASKET (16X22X2)

09168-16002

$1.91

12

CLAMP(L:250) | ~E.NO.105414 This part replaces 09407-25301.

09407-25302

Unavailable

13

CLAMP (L:220) | E.NO.105415~

09407-22404

Unavailable

14

CLAMP | E.NO.105415~

09407-25401

$4.66
