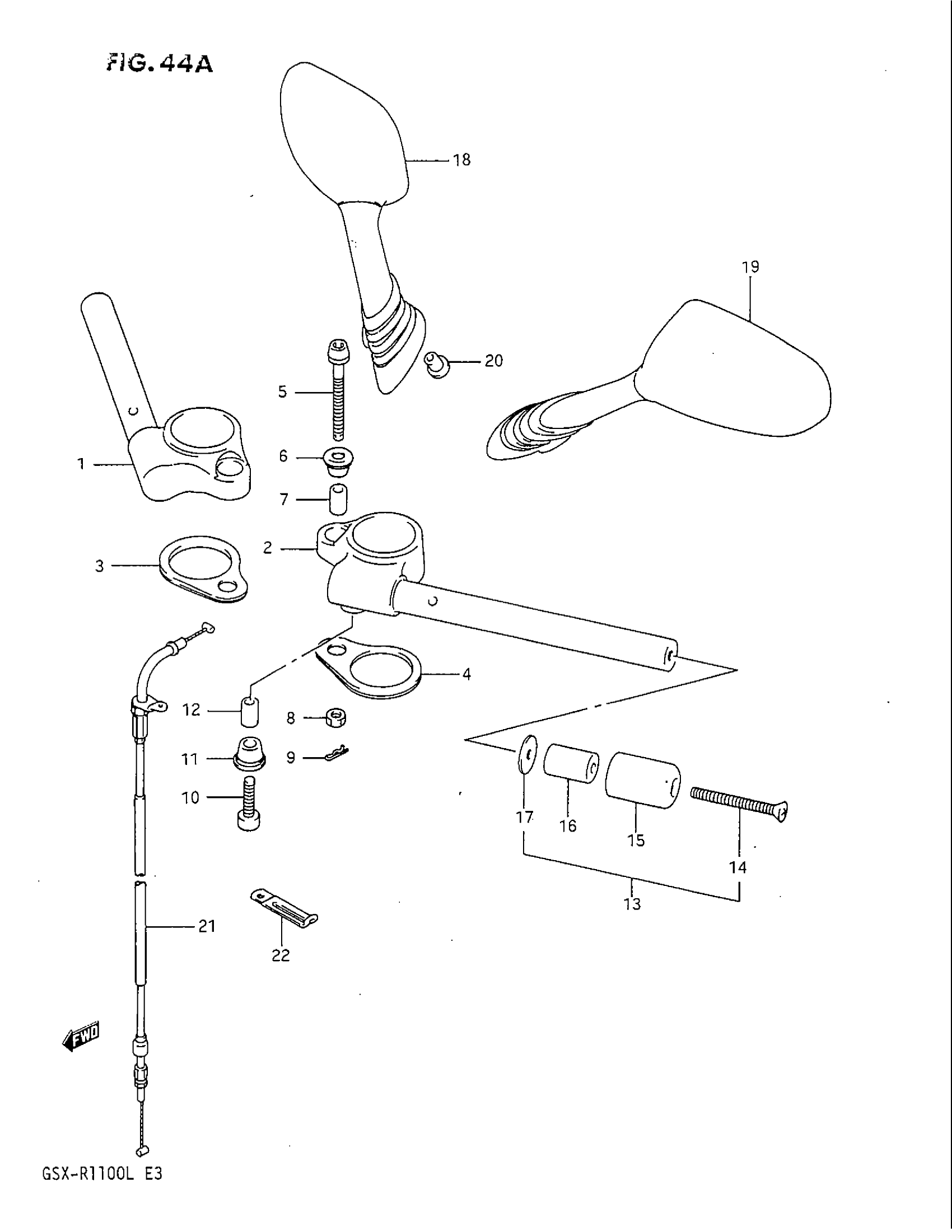

Suzuki GSX-R1100 (1990) HANDLEBAR (MODEL L) Diagram

#

Description
Price

1

HANDLEBAR SET, RH

56111-40C30

Unavailable

2

HANDLEBAR SET, LH

56151-40C30

Unavailable

3

CUSHION, RH

56240-40C01

Unavailable

4

CUSHION, LH

56260-40C01

Unavailable

5

BOLT

56231-40C10

Unavailable

6

CUSHION

56190-40C10

Unavailable

7

SPACER This part replaces 56243-40C10.

56243-40C11

Unavailable

8

NUT This part replaces 08310-22088.

08310-00087

$2.13

9

CLIP

09385-08005

$2.14

10

BOLT This part replaces 07110-08307.

07130-08307

$3.89

11

CUSHION

56190-40C10

Unavailable

12

SPACER This part replaces 56243-40C10.

56243-40C11

Unavailable

13

BALANCER SET,HN | Includes Item(s) 14 - 17 This part replaces 56200-40811.

56200-40821

Unavailable

14

SCREW

09127-06015

Unavailable

15

CAP

56274-40C10

Unavailable

16

BALANCER

56271-40C10

Unavailable

17

SPACER This part replaces 56275-34400.

56275-34401

$4.02

18

MIRROR ASSY, REAR VIEW RH

56500-40C11-33J

Unavailable

18

MIRROR ASSY, REAR VIEW RH

56500-40C11-0NE

Unavailable

19

MIRROR ASSY, REAR VIEW LH

56600-40C11-33J

Unavailable

19

MIRROR ASSY, REAR VIEW LH

56600-40C11-0NE

Unavailable

20

NUT, MIRROR

56619-17C00

$7.72

21

CABLE ASSY, THROTTLE

58300-17C01

Unavailable

22

CLAMP This part replaces 09404-06413.

09404-06039

$1.74
